Columbia 14AQ816K597 (2008) Garden Tractor

Model: 14AQ816K597 (2008)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

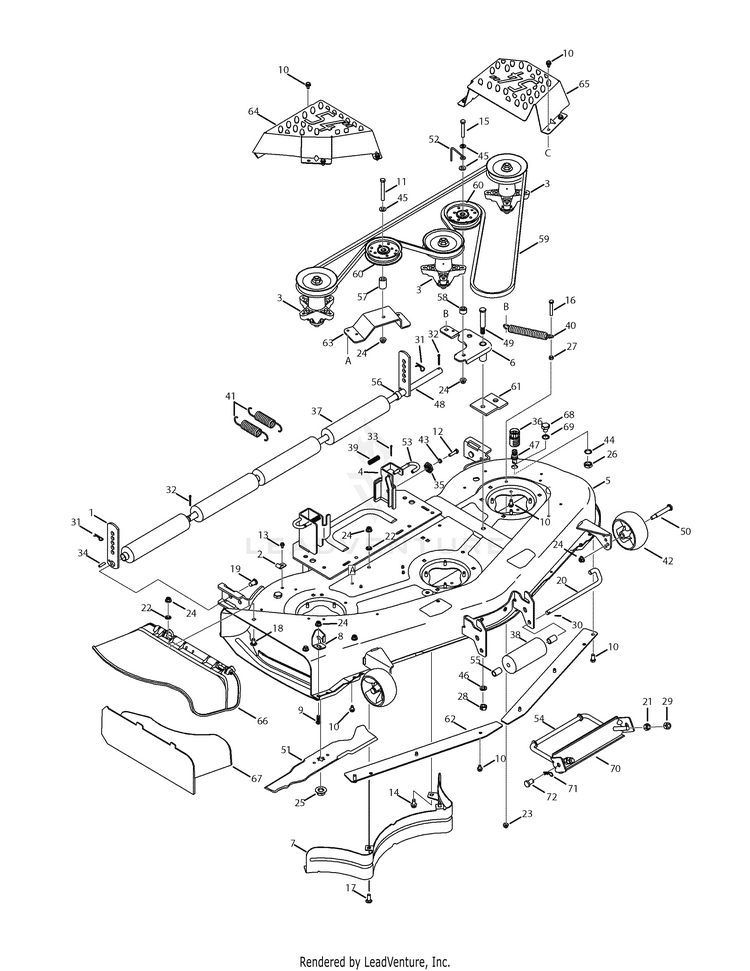

Deck Assembly 54-inch

...
...
1
Bracket, Height Adjustment MTD-12650
...
2
Retainer Hook Brkt. MTD-96606
...
3
Spindle Assembly MTD-918-04608A
...
3
HEX NUT Not shown MTD-712-0417A
...
3
Grease Fitting:3/16:LNC #70:DRI Not shown MTD-937-3000
...
3
Spindle Shaft:6.95 LG. Not shown MTD-738-1197
...
3
BALL BEARING Not shown MTD-741P0919B
...
3
Spacer:.790 ID x 1.25OD X .175 Not shown MTD-748-0160A
...
3
Spacer:.80 x 1.10 x 1.322 Not shown MTD-750-1000
...
3
Spacer:.79 x 1.82 x .55 Not shown MTD-750-1349A
...
3
Deck Pulley:V TYP:5.39 Not shown MTD-756-04216
...
4
Deck Adjustment Bracket w/Weld Nut *CHOOSE COLOR WHEN ORDERING* MTD-683-0254B
...
5
54" DECK SHELL (POWDER BLACK) *CHOOSE COLOR WHEN ORDERING* MTD-983-04483-0637
...
6
Idler Assembly *CHOOSE COLOR WHEN ORDERING* MTD-683-0459
...
7
RR Inner Baffle MTD-703-2093C-0637
...
8
Chute Stop Deflector MTD-703-3279
...
9
Screw, 3/8-16 x 1.0 MTD-710-04095
...
10
SCREW 5/16-18 x .750 MTD-710-04484
...
11
Screw, 3/8-16 x 3.0 MTD-710-0521
...
12
Hex Bolt 5/16-18 x 1.25 MTD-710-0528
...
13
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
14
Screw, 3/8-16 x 0.75 MTD-710-0623
...
15
Screw, 3/8-16 x 2.5 MTD-710-0859
...
16
Hex Hd Cap Scr. 5/16-18 x 2.0 Gr. 5 MTD-710-3103
...
17
Carriage Bolt 3/8-16 x 1.0 MTD-710-3168
...
18
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
19
Clevis Pin .50 Dia. x .78 MTD-911-0332
...
20
ROLLER PIN .5"DIAX10.06" MTD-711-1737
...
21
HEX NUT MTD-712-0206
...
22
Push Nut 3/8 MTD-712-0229
...
23
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
24
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
25
HEX NUT MTD-712-0417A
...
26
Nut, Hex, M16-1.5 MTD-712-0641
...
27
HEX NUT 5/16-18 MTD-712-3010
...
28
Hex L-Nut 1/2-13 MTD-712-3022
...
29
Hex L-Nut 1/2-13 MTD-712-3083
...
30
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
31
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
32
Cotter Pin MTD-714-0162
...
33
Cotter Pin 1/8" Dia. MTD-714-0470
...
34
Spring Pin 1/4 Dia. x 1.0 MTD-715-0108
...
35
Deck Adjustment Gear MTD-917-04074
...
36
Water Nozzle Adaptor MTD-921-04041
...
37
Deck Roller MTD-731-0335
...
38
ROLLER MTD-731-05679B
...
39
Compression Spring .531 OD x 1.75 Lg. MTD-932-0306A
...
40
Extension Spring .94 Dia. x 6.74 MTD-732-0459C
...
41
Extension Spring 1.5 x 5.99 MTD-732-0934
...
42
Deck Wheel 5.0 MTD-734-04155
...
43
L-Wash 5/16 ID MTD-936-0119
...
44
Lockwasher 5/8 MTD-736-0225
...
45
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
46
L-Wash. 1/2" I.D. MTD-736-0921
...
47
Port, Water MTD-737-04003D
...
48
Shaft .75 x 47.12 MTD-738-0295
...
49
Shoulder Screw MTD-738-1229A
...
50
Shoulder Screw MTD-938-3056
...
51
Blade 18.5 MTD-942-0677B
...
52
Idler Belt Keeper Rod MTD-747-04938
...
53
Deck Release Pin MTD-747-1116
...
54
Deck Adjustment Rod MTD-747-1324
...
55
Spacer .55 ID x .75 OD MTD-950-0151
...
56
Spacer.75" I.D. MTD-750-0212
...
57
SPACER:.380 x .900 MTD-750-04597
...
58
SPACER MTD-750-0933
...
59
V-Type Belt, B Section MTD-954-0642
...
60
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
61
Bracket, Stabilizing *CHOOSE COLOR WHEN ORDERING* MTD-783-04013A
...
62
Deck Shirt MTD-783-04690B-0637
...
63
Idler Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-04726
...
64
Spindle Cover RH *CHOOSE COLOR WHEN ORDERING* MTD-783-1470A
...
65
Cover, Spindle LH *CHOOSE COLOR WHEN ORDERING* MTD-783-1471A
...
66
Chute Assembly MTD-631-04070C
...
67
Mulching Plug MTD-731-04651
...
68
Plug Bolt, M16 x 1.5 MTD-738-04146
...
69
Flat Washer .64 x 1.24 x .06 MTD-736-0187
...
70
Front Deck Rod Adjustment Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-0720C
...
71
Internal Cotter Pin, .080 x 1.56 MTD-714-04023
...
72
Clevis Pin .50 x .78 MTD-911-0332
...
...
...
...
...
