Columbia 14AQ816K597 (2008) Garden Tractor

Model: 14AQ816K597 (2008)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

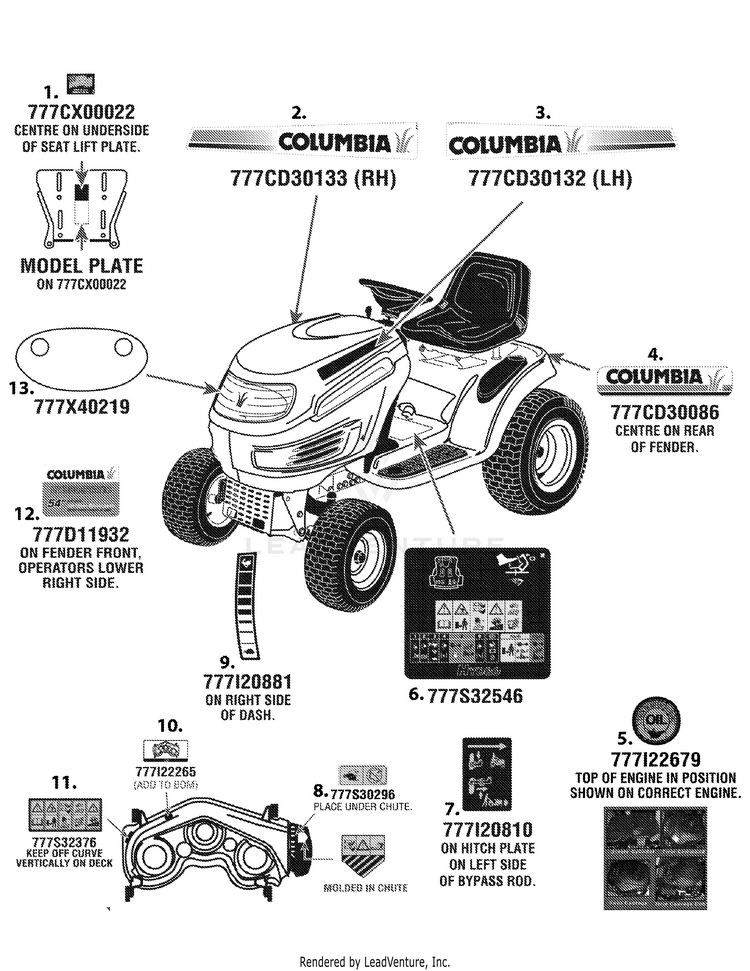

Label Map

...
...
1
LABELX: MADE IN USA MTD-777CX00022
...
2
LABEL-HOODSIDE (RH) STY 6 COLUMBIA MTD-777CD30133
...
3
LABEL-HOODSIDE (LH) STY 6 COLIMBIA MTD-777CD30132
...
4
LABEL-REAR FENDER COLUMBIA MTD-777CD30086
...
5
LABEL-SAFETY/INST MTD-977S32546
...
6
LABEL-CHECK ENG OI MTD-777I22679
...
7
LABEL-HITCH PLATE BYPASS ROD MTD-777I20810
...
8
LABEL:RIDER DECK: UNDERCHUTE EXP MTD-777S30296
...
9
LABEL-DASH MTD-777I20881
...
10
LABEL-BELT ROUTE MTD-777I22265
...
11
LABEL:RIDER:SAFETY MTD-777S32376
...
12
LABEL-HYD 54" FNDR COLUMBIA 54'' Deck MTD-777D11932
...
12
LABEL-HYD 46" FNDR COLUMBIA 46'' Deck MTD-777D11931
...
13
LABEL-LENS REFLECT MTD-777X40219
...
...
...
...
...
