Columbia 14AQ816K597 (2008) Garden Tractor

Model: 14AQ816K597 (2008)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

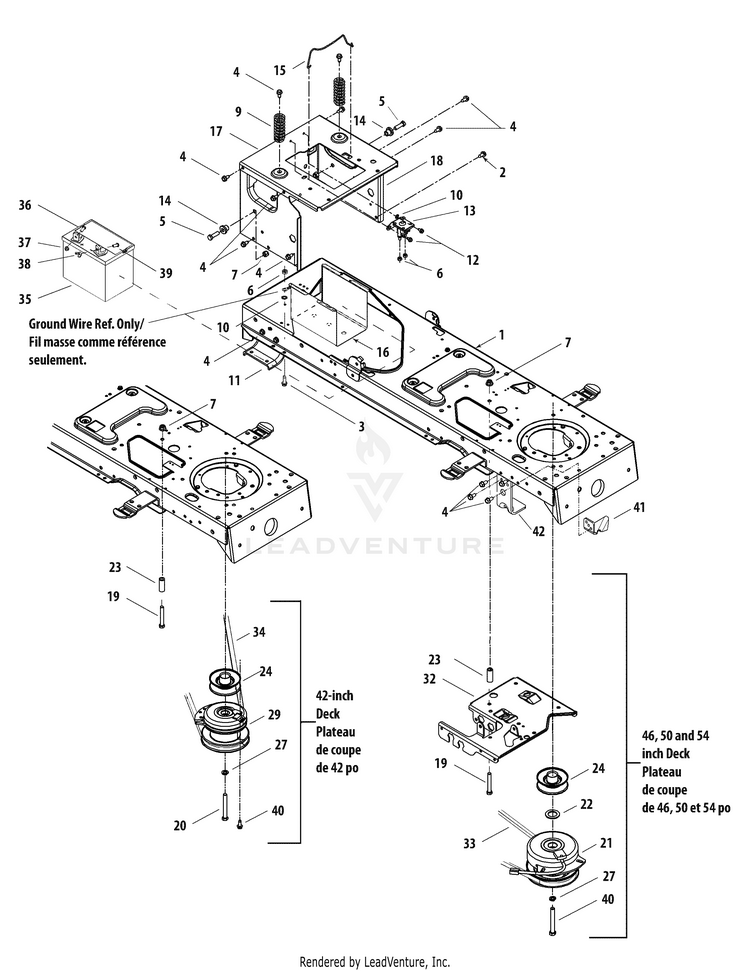

PTO & Battery

...
...
1
LOWER FRAME ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-683-04173B
...
2
Hex Wash HD S-Tapp Scr 5/16-18 x .50 MTD-710-0607
...
3
Thd Forming Scr. 1/4-20 x .75 Lg. MTD-710-0642
...
4
SCREW 5/16-18 x .750 MTD-710-04484
...
5
Hex Bolt 3/8-16 x 1.25 MTD-710-3005
...
6
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
7
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
9
Compression Spring 1.28 x 3.125 MTD-732-04035
...
10
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
11
Axle Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-0693A-0637
...
12
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
13
12V SOLENOID MTD-725-04439B
...
14
Shoulder Spacer .38 x 1.0 x .70 MTD-738-04058
...
15
Battery Retainer Rod MTD-747-04121A
...
16
BATTERY TRAY *CHOOSE COLOR WHEN ORDERING* MTD-783-0349
...
17
SEAT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-04329A
...
18
UPPER FRAME (POWDER BLACK) MTD-783-04809C-0637
...
18
UPPER FRAME *CHOOSE COLOR WHEN ORDERING* MTD-783-04811C
...
19
Hex Cap Screw, 3/8-16 x 2.25 Gr. 5 MTD-710-3011
...
20
Hex Bolt 7/16-20 x 3.25 Gr. 5 MTD-710-3157A
...
21
Electric PTO Clutch 46 & 50" Deck MTD-917-04174A
...
21
Electric PTO Clutch 54" Deck MTD-917-05001
...
22
Flat Washer 1.03 ID x 1.64 OD x .095 MTD-736-0277
...
23
SPACER .385ID x 1.54" MTD-748-0415B
...
24
Engine Pulley (hydrostatic models) MTD-756-0978B
...
24
Engine Pulley, 3.56 OD MTD-756-0639A
...
27
Lockwasher 7/16 ID MTD-936-0171
...
29
Electric PTO Clutch 42" Deck MTD-917-04163A
...
32
Steering Support Bracket MTD-783-04612-0637
...
33
V-Belt Type A Sec x 118.20 (46" Deck) MTD-954-04033A
...
33
V-Belt Type A Sec x 138.0 (54" Deck) MTD-954-0642
...
33
V-Belt 90.8 (50" Deck) MTD-954-0467A
...
34
PTO Belt (w/42" deck) MTD-954-0497
...
35
BATTERY MTD-925-1707D
...
36
Hex Flg. Bolt 1/4-10 x .75 Gr. 5 MTD-710-04666
...
37
Sems Hex Nut 1/4-20 MTD-712-0271
...
38
WING NUT 1/4-20 MTD-712-3087
...
39
Shoulder Screw, 1/4-20 MTD-738-1132
...
40
Hex Hd. Cap Scr. 7/16-20 x 3.5 MTD-710-04379A
...
41
Bracket Clutch (w/ 54" Deck) MTD-783-04419B-0637
...
42
DECK UP STOP BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-04467
...
...
...
...
...
