Columbia 13AV91GS897 (2011) V91GS (2011) Lawn Tractor

Model: 13AV91GS897 (2011) V91GS (2011)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

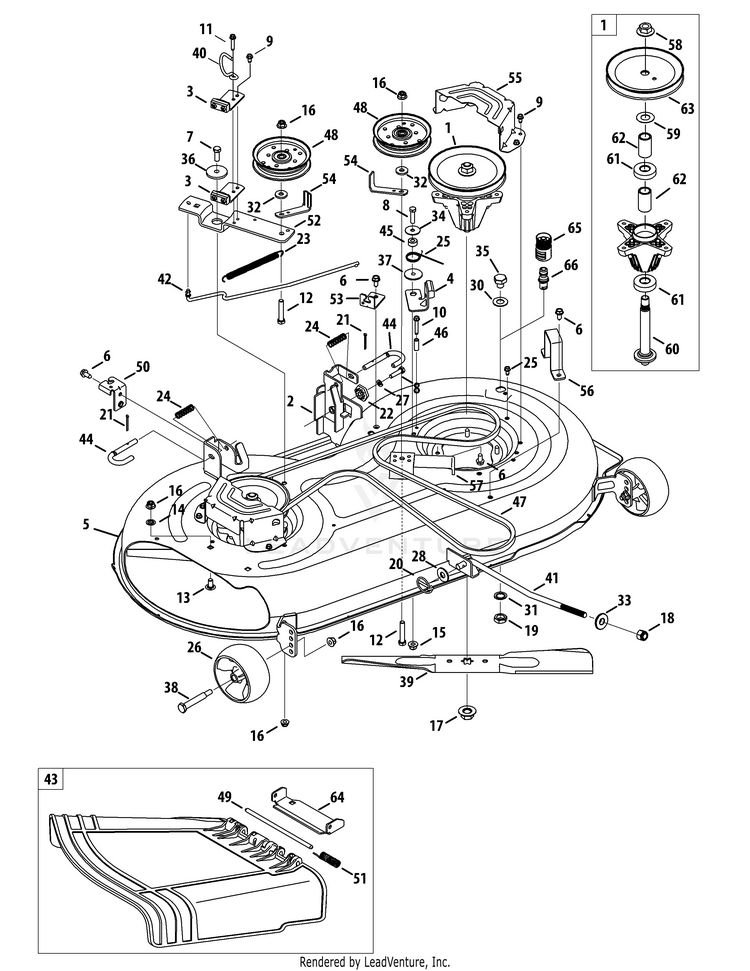

Mower Deck 42-Inch

...
...
1
SPINDLE ASSEMBLY MTD-918-04822B
...
2
Deck Hanger Bracket Ass'y LH MTD-683-0254B
...
3
Deck Brake Assembly MTD-983-04511
...
4
Deck Brake Assembly MTD-983-04525
...
5
Deck, Offset, 42" MTD-983-04572A
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
Hex. Hd. Cap Scr. 3/8-16 x 1.0 Gr. 5 MTD-710-0514
...
8
Hex Wash Tap Scr 5/16-18 x 1.25 MTD-710-0528
...
9
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
10
Hex Wash HD Bolt 1/4-20 x 1.50" Lg. MTD-710-0778
...
11
Hex Bolt 1/4-20 x 1.25 MTD-710-0809
...
12
Hex. Hd. Cap Scr. 3/8-16 x 2.0 Gr. 5 MTD-710-3144
...
13
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
14
Push Nut, 3/8 MTD-712-0229
...
15
Hex Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
16
Hex Flange Locknut 3/8-16 Gr. F Nylon MTD-712-04065
...
17
HEX NUT MTD-712-0417A
...
18
Hex Locknut 1/2-13 MTD-712-04243
...
19
Nut, Hex, M16-1.5 MTD-712-0641
...
20
Lynch Pin MTD-753-04070
...
21
Cotter Pin 1/8" Dia. MTD-714-0470
...
22
Deck Gear Adjuster MTD-917-04074
...
23
EXTENSION SPRING MTD-932-0384
...
24
Comp. Spring .535 OD x 1.751 MTD-732-04652
...
25
Torsion Spring .992 ID x 1.17 OD MTD-732-04773
...
26
Deck Wheel 5.0 Dia. MTD-734-04155
...
27
L-Wash 5/16 ID MTD-936-0119
...
28
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
30
Flat Washer .640 ID x 1.24 OD x .06 MTD-736-0187
...
31
L-Washer Internal MTD-736-0225
...
32
Flat Washer .385 ID x .870 OD x .092 MTD-736-0262
...
33
Cupped Washer .63 x 1.25 x .18 MTD-736-0317
...
34
Flat Washer .330 ID x 1.25 OD x .06 MTD-736-0362
...
35
Screw Plug M16 x 1.50 MTD-738-04146
...
36
Shoulder Spacer .884 x .190 MTD-738-04162C
...
37
Shoulder Spacer MTD-748-0234
...
38
Shoulder Bolt .496 x 2.5, 3/8-16 MTD-938-3056
...
39
21.23" BLADE (2N1) MTD-942-04308A
...
40
BELT KEEPER ROD MTD-747-05323
...
41
Front Lift Deck Rod MTD-747-04944B
...
42
Rod, Control, Brake 42" MTD-747-05105B
...
43
CHUTE ASSEMBLY MTD-631-05191A
...
44
Handle Rod .375 MTD-747-1116
...
45
Spacer .315 x .750 x .375" Lg. MTD-750-0258
...
46
Spacer .260 x .375 x 1.030 Lg. MTD-750-0566A
...
47
V-Belt MTD-954-04060C
...
48
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
49
Hinge Pin .3125 diam. x 7.96" Lg. MTD-711-04847B
...
50
Deck Engage Cable Bracket MTD-783-04740
...
51
Tor sion Spring .44 ID x 2.0 MTD-732-04372
...
52
Idler Pivot Bracket MTD-783-05946
...
53
Deck Cable Engagement Bracket MTD-783-06243
...
54
Belt Guard Pulley Bracket MTD-783-06368A
...
55
Belt Cover MTD-783-06424A
...
56
Stop MTD-783-06632
...
57
Deck Support Stationary Idler Brkt. MTD-783-06643
...
58
HEX NUT MTD-712-0417A
...
59
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
60
Spindle Shaft 6.11" Lg. MTD-738-1186A
...
61
BALL BEARING MTD-741P0919B
...
62
Spacer .792 x 1.060 x 1.860 MTD-750-04936
...
63
Deck Pulley 6.3 dia. MTD-956-1227
...
64
Chute Bracket MTD-783-05823
...
65
Water Nozzle Adapter MTD-921-04041
...
66
Deck Water Nozzle MTD-737-04003D
...
...
...
...
...
