Columbia 13AV91GS897 (2011) V91GS (2011) Lawn Tractor

Model: 13AV91GS897 (2011) V91GS (2011)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

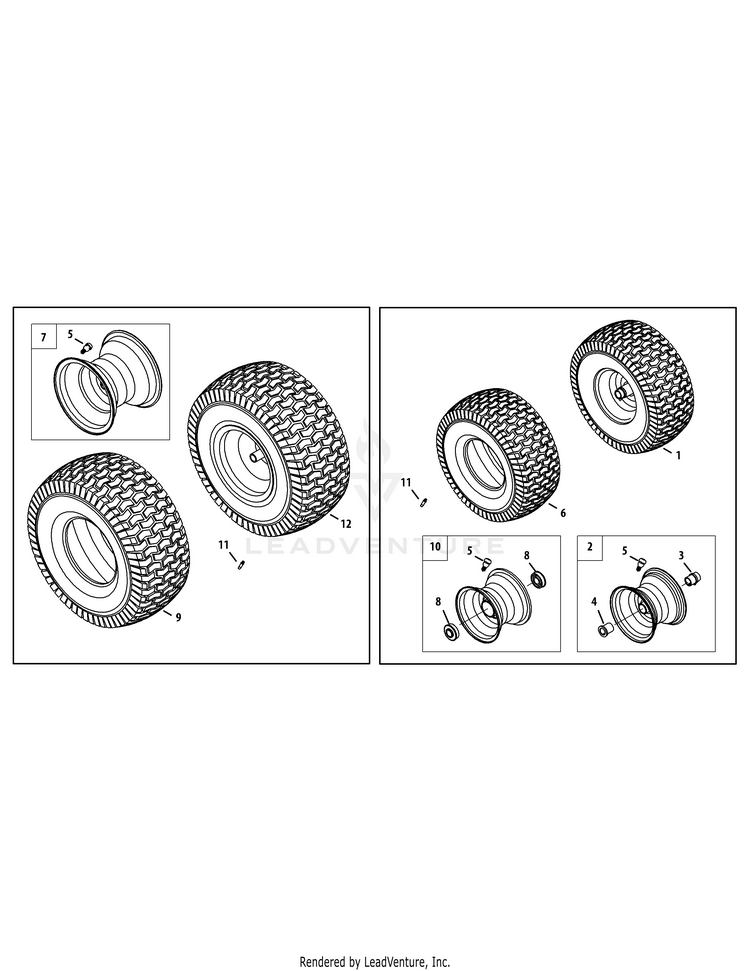

Wheels

...
...
1
WHEEL ASSEMBLY (15 x 6.0 x 6) (YELLOW-CARLISLE) MTD-634-04406-0941
...
1
WHEEL ASSEMBLY (15 x 6.0 x 6) (OYSTER-CARLISLE) MTD-634-04406-0911
...
1
WHEEL ASSEMBLY (15 x 6 x 6)(OYSTER-CARLISLE) MTD-634-04199-0911
...
2
RIM ASSEMBLY (6.0 x 4.5 x 1) (YARDMAN YELLOW) MTD-634-04405-0674
...
2
Rim Ass'y, Flange Brg. (Grey) MTD-634-04405-0662
...
3
Flg. Bearing .760 ID w/fit ting MTD-741-0990B
...
4
Flg. Bearing .760 x 1.0 x 1.20 MTD-741-0516B
...
5
Air Valve MTD-934-0255
...
6
Tire MTD-734-1731
...
7
Rim Ass'y, 8.0 x 7.0 x .750 (Grey) MTD-634-04369-0662
...
7
Rim Only MTD-634-04369-0662
...
8
BRG-BALL .754 ID x 1.750 OD MTD-941-04137A
...
9
Tire, 20 x 8 x 8 Square Shoulder MTD-734-1730
...
10
RIM ASSEMBLY (6 x 4.5) (BEIGE) If equipped MTD-934-04091C-0499
...
10
RIM ASSEMBLY (6 x 4.5) If equipped MTD-934-04091B
...
11
Grease Fitting MTD-737-0224
...
12
Wheel Ass'y, 20 x 8 (Grey) MTD-634-0104-0911
...
12
Wheel Ass'y, 20 x 8 (Yellow) MTD-634-0104-0941
...
...
...
...
...
