Columbia 13AV91GS897 (2011) V91GS (2011) Lawn Tractor

Model: 13AV91GS897 (2011) V91GS (2011)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

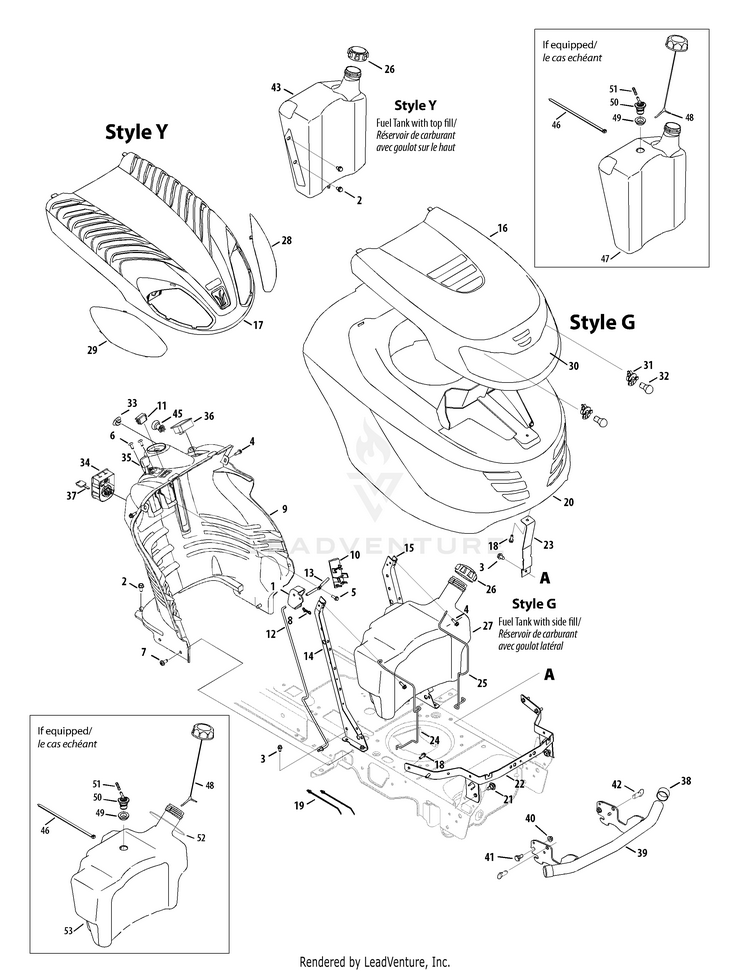

Hood & Grille Style G & Y

...
...
1
Dash Lever MTD-631-04353A
...
2
SCREW 5/16-18 x .750 MTD-710-04484
...
3
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
4
Hex TT Screw 1/4-20 x .75 MTD-710-0642
...
5
Hex Tapp Scr 1/4 x .75" Lg. MTD-710-0895
...
6
Torx Mach. AB-Tapp Scr. 1/4-14 x .625 Lg MTD-710-1017
...
7
Screw 5/16-18 x .75 MTD-710-1611B
...
8
Bow-Tie Cotter Pin MTD-714-04040
...
9
DASH PANEL W/MAN PTO Model 13AV91GS897 MTD-931-06495A
...
9
DASH PANEL ELECTRIC PTO Model 13AP91YT501 MTD-931-06620
...
10
Cruise Cover Y/G Style MTD-731-06643
...
11
HOLE PLUG MTD-731-07042
...
12
PARK BRAKE ROD MTD-747-05008
...
13
BRAKE/CRUISE PIVOT ROD MTD-747-1155
...
14
DASH SUPPORT MTD-783-04285F-0637
...
14
DASH SUPPORT (not shown) MTD-783-04323F-0637
...
16
UPPER HOOD ASSEMBLY G-STYLE MTD-931-04308
...
17
UPPER HOOD ASSEMBLY Y-STYLE MTD-931-04307
...
18
Screw, Bos, 1/4 Dia. x .75 MTD-710-05108
...
19
Cable Tie MTD-926-0154
...
20
G Style Hood (w/side fill fuel tank) MTD-931-06538
...
20
HOOD (YARDMAN) MTD-931-06484
...
21
Shoulder Screw .43 x .29, 5/16-18 MTD-738-04091A
...
22
Hood Pivot Bracket MTD-783-04606C
...
23
HOOD SUPPORT BRACKET MTD-783-06117-0637
...
24
Tank Support Rod RH MTD-747-05049
...
25
TANK SUPPORT ROD (LH) MTD-747-05050
...
26
TANK CAP MTD-751-0603B
...
27
FUEL TANK 2.75 GAL MTD-951-10573
...
28
LENS-Y-STYLE (LH) MTD-931-06540
...
29
LENS-Y-STYLE (RH) MTD-931-06539
...
29
Lens (Style G) MTD-931-06564
...
29
LABEL-REFLECTOR G-STYLE MTD-777X43285
...
31
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
32
Miniature Lamp 12V Socket Type MTD-925-0963
...
33
Choke Plug MTD-731-1999
...
34
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
35
Throttle/Choke Cont. Cable 25" Lg. (Single) Model 13AV91GS897 MTD-746-04364
...
35
Throttle/Choke Cont. Cable 46.5" Lg.(Twin) Model 13AP91YT501 MTD-946-04542
...
36
HOUR METER/SERVICE MINDER MTD-925-06170B
...
37
Ignition Key w/Plastic Cover MTD-925-1745A
...
38
Bumper Cap MTD-731-05674
...
39
Bumper Assembly MTD-683-04219B
...
40
Hex Ctr. L-Nut 3/8-16 Thd. MTD-712-3000
...
41
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
42
Quick Pin 1/2" dia. x 0.50 MTD-714-04061
...
43
Fuel Tank 2.0 Gal. (top fill) MTD-751-0659D
...
43
Fuel Tank 3.0 Gal. (top fill) MTD-751-0658E
...
45
PTO SWITCH (BLACK KNOB) TEXT SYM MTD-925-04174A
...
46
Cable Tie MTD-726-0230
...
47
FUEL TANK ASSEMBLY 2.0 GAL LO PRM Model 13AP91YT501 MTD-951-04308
...
48
FUEL CAP W/12"TETHER VENTED If equipped MTD-951-12179C
...
49
Rubber Grommet If equipped MTD-735-04081
...
50
Roll over Valve If equipped MTD-751-12118
...
51
Hose Vent If equipped MTD-751-12089-28
...
52
FUEL TANK GASKET If equipped MTD-735-04170
...
53
Fuel Tank 2.06 Gal. (side fill) Model 13AV91GS897 MTD-951-04312
...
xx
Harness (Man PTO/RMC/Hr. Meter) Model 13AV91GS897, Not shown, RMC® (Reverse Mowing Control) MTD-925-04105
...
xx
Harness (Elect. PTO/RMC/Hr. Meter) Model 13AP91YT501, Not shown, RMC® (Reverse Mowing Control) MTD-925-04104
...
...
...
...
...
