Columbia 13AV90GS897 (2010) V90GS (2010) Lawn Tractor

Model: 13AV90GS897 (2010) V90GS (2010)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

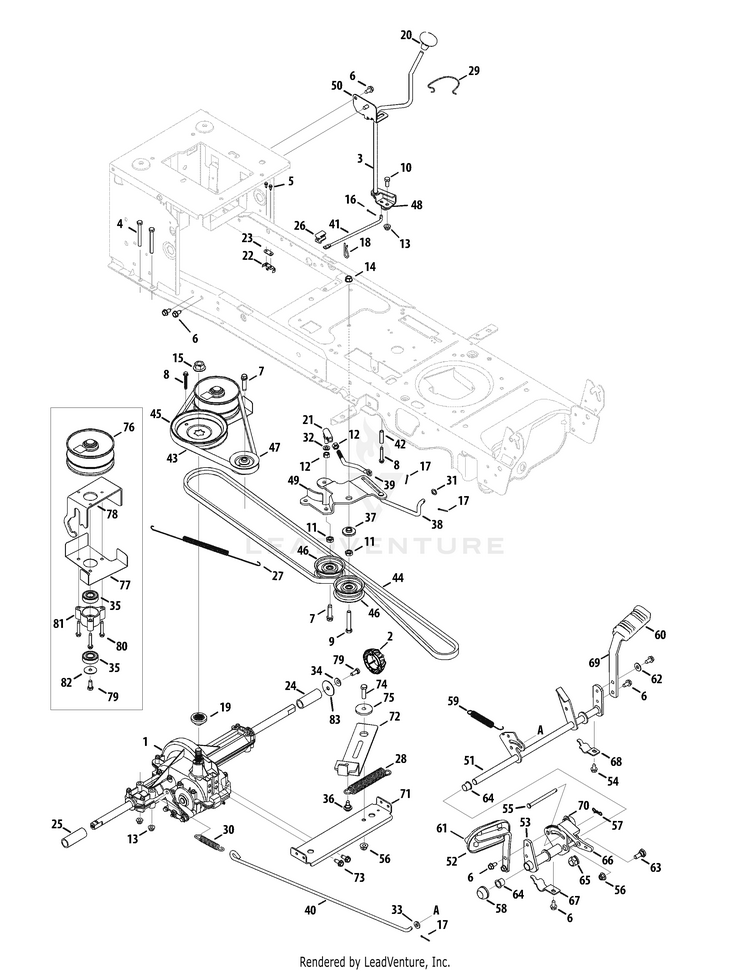

Drive Assembly

...
...
1
TRANSAXLE MTD-618P09815
...
2
HUB CAP MTD-731-2290B
...
3
Shift Lever Ass’y MTD-647-04035
...
4
Hex Scr 5/16-18 x 2.75 MTD-710-0176
...
5
Hex Wash HD AB S-Tapp Scr #8-.50 MTD-710-0227
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
Hex L-Wash HD Scr 3/8-16 x 1.5 MTD-710-1007
...
8
Hex TT-Tap Scr 1/4-20 x 1.75 MTD-710-1026
...
9
Hex Bolt 3/8-16 x 2.25" Lg. MTD-710-3011
...
10
Screw-Hex Cap MTD-710-3025
...
11
Hex Jam Nut 7/16-20 MTD-912-0240
...
12
Hex Nut 3/8-24 MTD-712-0241
...
13
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
14
Hex. Flanged L-Nut 3/8-16 Gr. F MTD-912-0431
...
15
Flange Nut MTD-712-0700
...
16
Hairpin Clip MTD-714-0104
...
17
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
18
Cotter Pin MTD-914-0209
...
19
Hub, 5/8" spline MTD-718-04407
...
20
Shift Knob MTD-720-04028
...
21
Drag Link Ball Joint MTD-923-3018
...
22
SAFETY SPRING SWITCH MTD-725-1644
...
23
Insulator Nut Plate MTD-926-0320
...
24
Sleeve, .758 x .821 x 3.3125 MTD-731-04602
...
25
Sleeve, .758 x .821 x 2.4375 MTD-731-04604
...
26
SHIFT ROD BEARING MTD-731-06894A
...
27
Extension Spring .70 OD x 12.0 MTD-732-04612
...
28
Extension Spring .97 OD x 6.18 MTD-732-04616B
...
29
Complete Spring Clip MTD-732-0525
...
30
Extension Spring .59 OD x 4.0 MTD-732-0716D
...
31
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
32
L-Wash. 3/8" I.D. MTD-736-0169
...
33
Flat Washer .312 ID x .75 OD MTD-936-3008
...
34
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
35
Ball Bear ing 17 x 40 x 12 MTD-941-0600
...
36
Shoulder Screw 5/16-18, .43 x .29 MTD-738-04091A
...
37
SHOULDER SPACER 1.375X.380X.183 MTD-738-04420
...
38
FOOTPEDAL BYPASS ROD MTD-747-04957A
...
39
IDLER ADJUSTMENT ROD MTD-747-04959A
...
40
Brake Rod MTD-747-04984
...
41
Shift Rod (46") MTD-747-05243
...
42
Spacer .260 x .372 x 1.420 MTD-750-04456
...
43
V Belt, 5L 40.9 Poly MTD-954-04208A
...
44
V-Belt MTD-954-04267
...
45
Pulley, V-Type, 7.25 dia. MTD-956-04002
...
46
Idler Pulley, Flat 2.75 OD MTD-756-04224
...
47
Idler Pulley V-Type x 3.06 MTD-756-04325
...
48
Shift Adjustment Bracket MTD-783-04595A
...
49
DOUBLE IDLER BRACKET MTD-783-06027B
...
50
BRACKET-SHIFT F-N-R MTD-783-06132
...
51
BRAKE PEDAL SHAFT ASSEMBLY MTD-647-04152D
...
52
CONTROL PEDAL ASSEMBLY MTD-683-0266
...
53
KIT-PEDAL BRACKET MTD-753-08028
...
54
Self-tapping Screw 5/16-18 x .625 MTD-710-0604A
...
55
CLEVIS PIN 5/16 x 4.135 MTD-711-05068A
...
56
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
57
Bow-Tie Cotter Pin MTD-714-04040
...
58
Push Cap 5/8" Dia Rod MTD-726-0214
...
59
Extension Spring .63 dia. x 4.95 MTD-732-04587
...
60
Brake Pedal Pad MTD-735-04136
...
61
Auto Drive Pedal Pad MTD-735-0662
...
62
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
63
Shoulder Screw MTD-738-0380
...
64
NYLINER BEARING MTD-741-0495
...
65
Hex Flanged Bearing .628 ID MTD-741-3065B
...
66
Cruise Latch MTD-748-04203
...
67
Pedal Strap Support Bracket MTD-783-05914
...
68
Pedal Strap Support Bracket MTD-783-05940
...
69
FOOT BRAKE PEDAL (POWDER BLACK) MTD-783-06103A-0637
...
70
Reinforcement Plate Bracket MTD-783-06278
...
71
TRANSMISSION TORQUE BRACKET MTD-683-04520
...
72
KIT:REPL:IDLER BRKT MTD-753-06662
...
73
Hex Wash. Hd. Scr. 5/16-18 x .75 Lg. MTD-710-1260A
...
74
Hex Bolt 3/8-16 x 1.25 MTD-710-3005
...
75
Shoulder Spacer .884 x .190 MTD-738-04162C
...
76
VARIABLE SPEED PULLEY (4.75 OD) MTD-656P05011
...
77
TRANSMISSION BELT KEEPER MTD-783-06227A
...
78
VARIABLE SPEED BRACKET MTD-683-04523
...
79
Hex L-Bolt 5/16-24 x .75 Gr. 5 MTD-710-0627
...
80
Hex Wash HD Bolt 1/4-20 x 1.50" Lg. MTD-710-0778
...
81
Bearing Cup MTD-718-04261
...
82
Flat Washer .22 ID x 1.25 MTD-736-0362
...
83
Flat Washer, .350 x 1.59 x .062 MTD-736-0430
...
...
...
...
...
