Columbia 13AV90GS897 (2010) V90GS (2010) Lawn Tractor

Model: 13AV90GS897 (2010) V90GS (2010)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

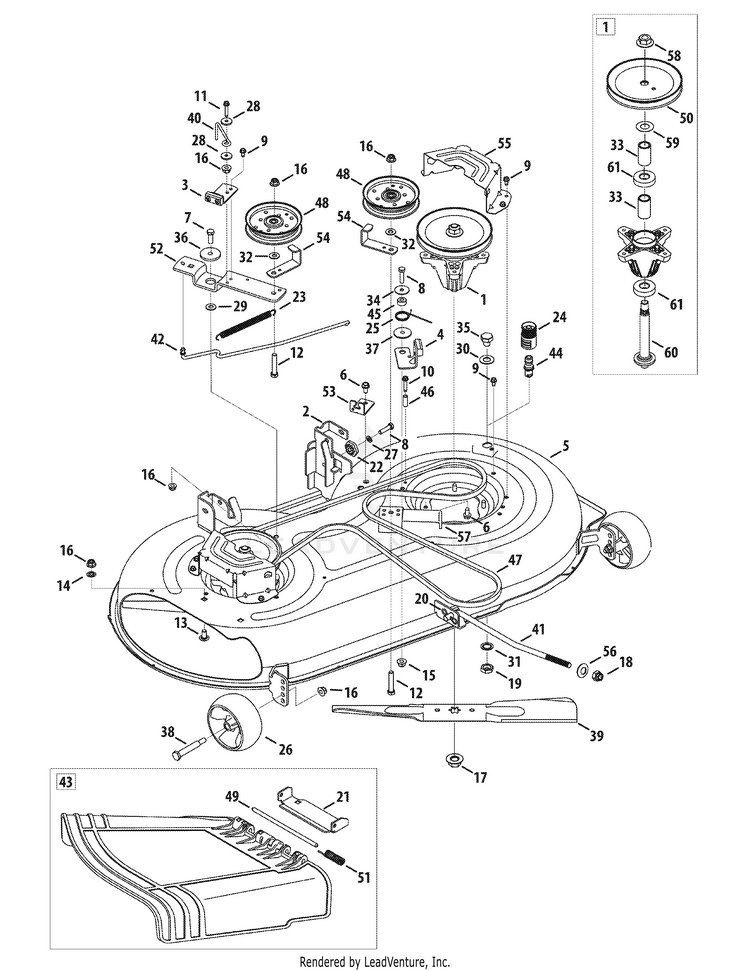

Mower Deck 42-Inch

...
...
1
SPINDLE ASSEMBLY MTD-918-04822B
...
2
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
3
46" DECK BRAKE ASSEMBLY MTD-983-04511
...
4
46" DECK BRAKE ASSEMBLY MTD-983-04525
...
5
Deck Ass’y, Offset, 42" W/O wheel MTD-983-04572A-0637
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
8
SCREW 5/16-18 x 1.25 GR5 MTD-710-0528
...
9
SCREW 1/4-20 X.500 MTD-710-0599
...
10
SCREW 1/4-20 x 1.50" MTD-710-0778
...
11
SCREW 1/4-20 x 1.25 MTD-710-0809
...
12
SCREW 3/8-16 x 2.0 GR5 MTD-710-3144
...
13
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
14
PUSH NUT MTD-712-0229
...
15
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
16
NUT MTD-712-04065
...
17
HEX NUT MTD-712-0417A
...
18
NUT MTD-712-04243
...
19
Nut, Hex, M16-1.5 MTD-712-0641
...
20
PIN:COTTER MTD-714-04043
...
21
CHUTE BRACKET MTD-783-06074A
...
22
DECK ADJUSTMENT GEAR MTD-917-04074
...
23
EXTENSION SPRING MTD-932-0384
...
24
WATER NOZZLE ADAPTER MTD-921-04041
...
25
TORSION SPRING MTD-732-04727
...
26
DECK WHEEL MTD-734-04155
...
27
LOCK WASHER 5/16 MTD-936-0119
...
28
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
29
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
30
FLAT WASHER .640ID X1.24OD x .06 MTD-736-0187
...
31
LOCK WASHER 5/8 MTD-736-0225
...
32
FLAT WASHER .385X.870X.090 MTD-736-0262
...
33
SPACER- .792 x 1.060 x 1.860 MTD-750-04936
...
34
FLAT WASHER .322 ID x 1.25 x .060 MTD-736-0362
...
35
DECK WASH PLUG MTD-738-04146
...
36
Shoulder Spacer .884 x .190 MTD-738-04162C
...
37
SHOULDER SPACER MTD-738-04166
...
38
SHOULDER BOLT .50 x 2.5 x 3/8 -16 MTD-938-3056
...
39
21.23" BLADE (2N1) MTD-942-04308A
...
40
BELT KEEPER ROD MTD-747-04530
...
41
FRONT DECK LIFT ROD MTD-747-04944B
...
42
Rod, Control, Brake 42" MTD-747-05105B
...
43
CHUTE ASSEMBLY MTD-631-05191A
...
44
DECK WASH NOZZLE MTD-737-04003D
...
45
SPACER MTD-750-0258
...
46
SPACER MTD-750-0566A
...
47
V-Belt MTD-954-04060C
...
48
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
49
Hinge Pin MTD-711-04847B
...
50
DECK PULLEY 6.3 Dia MTD-956-1227
...
51
TORSION SPRING MTD-732-04372
...
52
IDLER PIVOT BRACKET MTD-783-05946
...
53
ENGAGEMENT CABLE BRACKET (POWDER BLACK) MTD-783-06243-0637
...
54
Belt Pulley Guard MTD-783-06368A-0637
...
55
BELT COVER (POWDER BLACK) MTD-783-06424A-0637
...
56
LIFT PIVOT CUP MTD-748-04069A
...
57
IDLER BRACKET SUPPORT(POWDER BLACK) MTD-783-06643-0637
...
58
HEX NUT MTD-712-0417A
...
59
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
60
BLADE SPINDLE SHAFT STAR 6.11 LG MTD-738-1186A
...
61
BALL BEARING MTD-741P0919B
...
...
...
...
...
