Columbia 13AV76GF897 (2009) Lawn Tractor

Model: 13AV76GF897 (2009)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

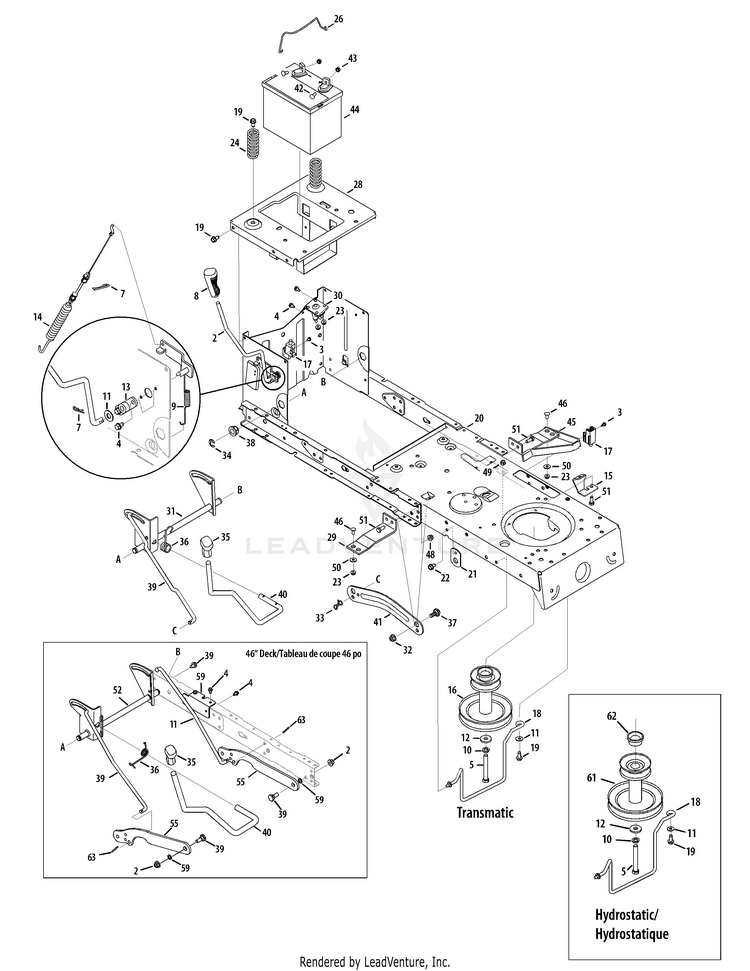

Frame & Deck Lift

...
...
1
Deck Lift Link MTD-783-0678C-0637
...
2
PTO Handle MTD-647-04096A-0637
...
3
Shoulder Scr #10-16 x .50" Lg. MTD-738-04237A
...
4
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
5
Hex Hd. Cap Scr. 7/16-20 x 3.25 Gr. 5 MTD-710-04608
...
6
Frame Brace Bracket MTD-783-05389A-0637
...
7
Bow Tie Cotter Pin MTD-714-04040
...
8
Handle Grip 3/8 MTD-720-04049A
...
9
Extension Spring MTD-732-04276A
...
10
Lockwasher 7/16 ID MTD-936-0171
...
11
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
12
Flat Washer .450 x 1.25 x .164 MTD-736-0322
...
13
PTO Bearing MTD-741-04119A
...
14
Deck Engagement Cable MTD-946-04173E
...
15
Frame Support Bracket MTD-783-04753-0637
...
16
Engine Pulley 3.39 x 6.12 dia. MTD-756-04196A
...
17
Interlock Switch MTD-725-04363
...
18
BELT KEEPER ROD (38" Deck) MTD-747-04332A
...
19
SCREW 5/16-18 x .750 MTD-710-04484
...
20
FRAME ASSEMBLY(MAJESTIC ORANGE) MTD-683-04450-0606
...
21
Pedal Support Bracket MTD-783-04536B-0637
...
22
Hex Wash HD TT Scr 5/16-18 x .625 MTD-710-0604A
...
23
Hex L-Flanged Nut 1/4-20 Gr. F, Nylon MTD-712-04064
...
24
Compression Spring 1.28 x 3.125 MTD-732-04035
...
25
LIFT BRACKET 50" DECK MTD-783-04462A
...
26
BATTERY ROD ASSEMBLY MTD-747-04744A
...
27
Battery Bracket MTD-783-04869A-0637
...
28
Seat Frame Bracket MTD-783-04548D-0637
...
29
Running Board Bracket MTD-783-04637-0637
...
30
12V SOLENOID MTD-725-04439B
...
31
LIFT SHAFT ASSEMBLY (POWDER BLACK) (38/42" Deck) MTD-683-04155A-0637
...
32
Flange Lock-Nut 3/8-16 Gr. F, Nylon MTD-712-04065
...
33
Cotter Pin .08 x 1.56 Intern - R.H. MTD-714-04043
...
33
Cotter Pin 1/8" Dia. MTD-714-0470
...
34
E Ring .625 Dia. MTD-716-0106A
...
35
Handle Grip MTD-720-0311
...
36
TORSION SPRING (38/42" Deck) MTD-732-04225
...
37
SHOULDER SCREW .625X.165X3/8-16 MTD-738-04130A
...
38
Hex Flange Bearing .630 ID MTD-941-0225
...
39
Lift Rod MTD-747-04393
...
40
DECK LIFT HANDLE (38/42" Deck) MTD-747-04282
...
41
Deck Lift Arm RH MTD-783-04494C-0637
...
41
Deck Lift Arm LH MTD-783-04711C-0637
...
42
Hex Flg. Scr. 1/4-20 x .75 Gr. 5 MTD-710-04666
...
43
Sems Hex Nut 1/4-20 MTD-712-0271
...
44
BATTERY MTD-925-1707D
...
45
Support Bracket Ass'y MTD-683-04195-0637
...
46
Carriage Bolt 1/4-20 x .62 MTD-710-0134
...
47
Screw, 5/16-18 x .625 MTD-710-3025
...
48
Hex L-Flg Nut 5/16-18 Gr. F, Nylon MTD-712-04063
...
49
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
50
Flat Washer .28 x .74 x .063 MTD-736-0173
...
51
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
52
LIFT SHAFT ASSEMBLY (POWDER BLACK) (46" Deck) MTD-683-04334-0637
...
53
Cotter Pin 1/8" Dia. x 1" Lg. MTD-714-0115
...
54
E Ring MTD-716-0106A
...
55
Grip MTD-720-0298
...
56
TORSION SPRING (46" Deck) MTD-732-04438
...
57
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
58
LIFT HANDLE (46" Deck) MTD-747-04653A
...
59
Frame Brace Bracket MTD-783-05389A-0637
...
60
DECK LIFT LINK (POWDER BLACK) (46" Deck) MTD-783-0678C-0637
...
...
...
...
...
