Columbia 13AV61GG897 (2009) Lawn Tractor

Model: 13AV61GG897 (2009)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

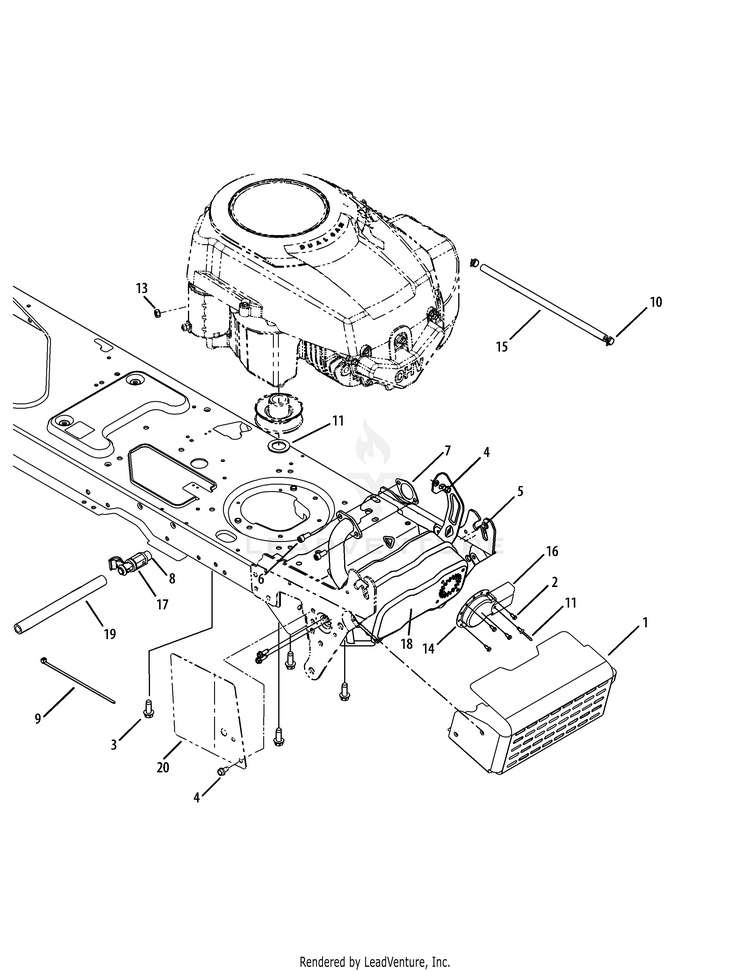

Engine Accessories Single

...
...
1
MUFFLER SHIELD (POWDER BLACK) MTD-683-05460A-0637
...
2
Hex AB Scr #8-18 x .50 MTD-710-0227
...
3
SCREW 3/8-16 X 1 MTD-710-04683C
...
4
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
5
Thd Forming Scr. 1/4-20 x .75 Lg. MTD-710-0642
...
6
Scr. 5/16-18 x .75 MTD-710-1314A
...
7
Exhaust Gasket MTD-BS-692236
...
8
Pipe Seal ant Locktite 567 Purchased locally MTD-NA
...
9
Cable Tie MTD-725-0157
...
10
Hose Clamp MTD-726-0205
...
11
Pop Rivet MTD-728-04000
...
13
Hex Sems Nut 1/4-20 MTD-712-0271
...
14
Muffler Deflector MTD-751-0564B
...
15
FUEL HOSE 1/4-36" MTD-751-22813-36
...
16
EXHAUST DELECTOR (LONG) MTD-751-11053B
...
17
Oil Drain MTD-951-10517A
...
18
MUFFLER EXHAUST SINGLE MTD-951-11022A
...
19
Oil Drain Hose MTD-751-3141-14
...
20
HEAT SHIELD MTD-783-05106-0637
...
...
...
...
...
