Columbia 13AP61GH897 (2009) Lawn Tractor

Model: 13AP61GH897 (2009)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

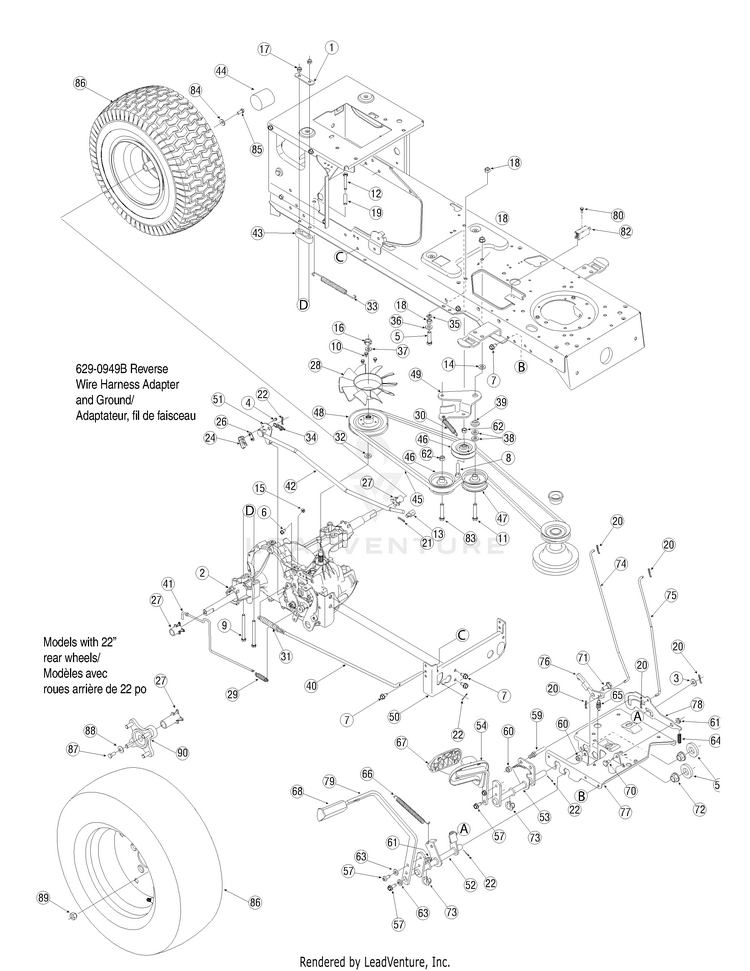

Rear Drive & Wheels

...
...
1
Transaxle Mtg. Brkt. MTD-17840-0637
...
2
TRANSMISSION ASSEMBLY MTD-918-0319
...
3
Flat Washer .385 x .870 x .092 MTD-736-0262
...
4
Hex Wash HD AB S-Tapp Scr #8-.50 MTD-710-0227
...
5
Hex Screw 3/8-16 x 1.50 MTD-710-0520
...
6
Hex Wash HD Tapp Scr 1/4-20 x .375 MTD-710-0653
...
7
Hex Wash HD AB Tap Scr 5/16-12 x .75 MTD-710-0726
...
8
Hex Washer Scr 3/8-16 x 1.25 MTD-710-0502A
...
9
Hex Bolt 5/16-18 x 3.5" Lg. MTD-710-1266
...
10
Hex Tap Scr #12 x .375 MTD-710-3007
...
11
Hex Bolt 3/8-16 x 2.25" Lg. MTD-710-3011
...
12
Hex Wash HD Bolt 1/4-20 x 1.50" Lg. MTD-710-0778
...
13
Adjustment Ferrule 3/8-24 MTD-911-0832
...
14
Flat Washer .385 ID X 1.0 OD X .130 MTD-736-0258
...
15
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
16
Hex Nut 1/2-20 Grade 5 MTD-912-3066
...
17
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
18
Hex. Flanged L-Nut 3/8-16 Gr. F MTD-912-0431
...
19
Spacer .260 x .375 x 1.030 Lg. MTD-750-0566A
...
20
Hairpin Clip MTD-714-0104
...
21
Cotter Pin 3/32 x .75 MTD-914-0507
...
22
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
24
SAFETY SPRING SWITCH MTD-725-1644
...
26
Insulator Nut Plate MTD-926-0320
...
27
Sleeve, .765 ID x 1.500 LG MTD-731-05299A
...
28
Fan MTD-931-1449A
...
29
Extension Spring .47 OD x 2.03 Lg. MTD-932-0209
...
30
Extension Spring MTD-732-04323B
...
31
Ext. Spring .59 OD x 4.00 Lg. MTD-732-0716D
...
32
Wire Ring MTD-732-0729
...
33
Extension Spring .75 x 5.39 MTD-732-0994
...
34
Extension Spring 3/8 x 1.44 MTD-732-3118
...
35
L-Wash. 3/8" I.D. MTD-736-0169
...
36
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
37
L-Wash. 1/2" I.D. MTD-736-0921
...
38
Flat Washer .406 ID x .812 OD x .134 MTD-736-3010
...
39
Shoulder Spacer MTD-738-0372B
...
40
Brake Rod MTD-747-04139
...
41
Hydrostatic By pass Rod MTD-747-1149
...
42
CONTROL ROD MTD-747-1151
...
43
Transaxle Spacer MTD-948-0334
...
44
Hub Cap MTD-731-05674
...
45
V" Belt MTD-954-0461
...
46
Pulley, V-Type Drive 3.06 MTD-756-04209
...
47
Idler Pulley, Flat 2.75 OD MTD-756-04224
...
48
Input Pulley MTD-756-04111
...
49
Idler Bracket MTD-783-04442-0637
...
50
TRANSMISSION TORQUE BRACKET MTD-783-0810B-0637
...
51
Switch Ac tu a tor Bracket MTD-783-1019B
...
52
BRAKE CONTROL ASSEMBLY (POWDER BLACK) MTD-647-04100-0637
...
53
HYDRO CONTROL ASSEMBLY (POWDER BLACK) MTD-647-0049A-0637
...
54
CONTROL PEDAL ASSEMBLY MTD-683-0267C
...
56
Flat Washer .640 ID x 1.24 OD x .06 MTD-736-0187
...
57
Hex Wash. Hd. Scr. 5/16-18 x .75 Lg. MTD-710-1260A
...
59
Pin 3/8-16 x 2.68 Lg. MTD-711-04159B
...
60
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
61
HEX FLANGE NUT MTD-712-3004A
...
62
Hex Jam Nut 7/16-20 MTD-912-0240
...
63
L-Wash 5/16 ID MTD-936-0119
...
64
SPRING MTD-732-0335
...
65
Extension Spring, .50 OD x 1.41 MTD-732-0955
...
66
Extension Spring, .50 Dia. x 6.37 MTD-732-0963
...
67
AutoDrive Pedal Pad MTD-735-0662
...
68
Brake Pad MTD-735-3049A
...
70
Shld. Scr .437 Dia x .162 Lg. MTD-938-0155
...
71
Shoulder Screw MTD-738-0380
...
72
Hex Flange Bearing .630 ID MTD-941-0225
...
73
Hex Flanged Bearing .628 ID MTD-741-3065B
...
74
LOCK CONTROL BRAKE ROD MTD-747-04093A
...
75
CRUISE CONTROL ROD MTD-747-04096
...
76
CRUISE LATCH MTD-748-04039C
...
77
Steering Support Bracket MTD-783-04612-0637
...
78
LOCKOUT BRACKET MTD-783-0663E
...
79
BRAKE PEDAL (POWDER BLACK) MTD-747-04641A-0637
...
80
Shoulder Scr #10-32 x .50" Lg. MTD-738-04237A
...
82
Inter lock Switch MTD-925-04039
...
83
Hex L-Wash HD Scr 3/8-16 x 1.5 MTD-710-1007
...
84
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
85
Hex L-Bolt 5/16-24 x .75 Gr. 5 MTD-710-0627
...
86
Wheel Assembly 13AV Model MTD-634-0104-0911
...
86
Tire Only 13AV Model Not shown MTD-734-1730-0901
...
86
Rim Only 13AV Model Not shown MTD-634-04369-0662
...
86
Valve 13AV Model Not shown MTD-934-0255
...
86
WHEEL ASS'Y COMP OYSTER-CARLNLAUD 13AP Models MTD-634-0177-0911
...
86
Tire Only 13AP Models Not shown MTD-734-1873-0901
...
86
Rim Only 13AP Models Not shown MTD-634-04369-0662
...
86
Valve 13AP Models Not shown MTD-934-0255
...
87
Hex Hd. Cap Scr. 5/16-24 x .75 Gr. 5 MTD-710-0627
...
88
Cupped Washer .340 x .872 x .060 MTD-736-0242
...
89
Lug Nut 7/16-14 MTD-712-3050
...
90
TRANSMISSION MTD-918-04270B
...
xx
Cable Tie (Not Shown) MTD-725-0157
...
xx
Push Mount Tie (Not Shown) MTD-926-0154
...
...
...
...
...
