Columbia 13AP61GH897 (2009) Lawn Tractor

Model: 13AP61GH897 (2009)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

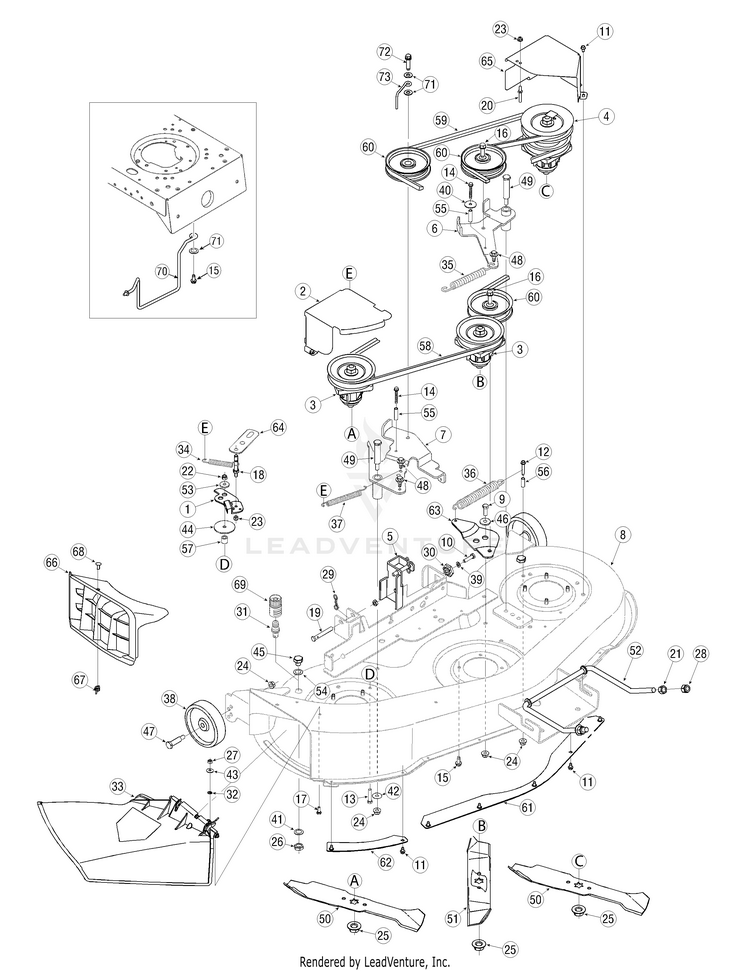

Mower Deck 46 Inch

...
...
1
Deck Brake Bracket Ass’y MTD-97116
...
2
Deck Belt Cover RH MTD-17258E-0637
...
3
Spindle Assembly, 5.0 Dia. MTD-918-0240C
...
3
Spindle Housing Not shown MTD-753-07015
...
3
HEX NUT Not shown MTD-712-0417A
...
3
Grease Fitting:3/16:LNC #70:DRI Not shown MTD-937-3000
...
3
Spindle Shaft:4.450 LG. Not shown MTD-738-0927
...
3
BALL BEARING Not shown MTD-741P0919B
...
3
Spacer:.750 x 1.150 x .230 Not shown MTD-748-0434
...
3
Spacer:.792 x 1.060 x 1.860 Not shown MTD-750-04936
...
3
Deck Pulley:5.00 Dia Not shown MTD-756-1187
...
4
Spindle, Double Pulley 46" Deck MTD-918-04134D
...
4
HEX NUT Not shown MTD-712-0417A
...
4
Flat Washer:.760 x 1.50 X .120 Not shown MTD-736-0315
...
4
Spindle Shaft:6.58 LG. Not shown MTD-938-1128
...
4
BALL BEARING Not shown MTD-741P0919B
...
4
Spacer:.792 x 1.060 x 1.680 Not shown MTD-750-04440
...
4
Spacer:.792 x 1.060 x 1.860 Not shown MTD-750-04936
...
4
SPACER: .792 x 1.0 Not shown MTD-750-1304
...
4
Deck Pulley:5.00 Dia x .80 Not shown MTD-756-04094
...
4
Deck Pulley:5.75 Dia Not shown MTD-756-1188
...
5
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
6
Idler Bracket Assembly - LH MTD-683-04250A-0637
...
7
46" IDLER BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-683-04251A-0637
...
8
46" DECK ASSEMBLY MTD-983-04254-0637
...
9
Hex Screw 3/16 x 1.00 MTD-710-0514
...
10
Hex Bolt 5/16-18 x 1.25 MTD-710-0528
...
11
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
12
Hex Wash HD Bolt 1/4-20 x 1.50" Lg. MTD-710-0778
...
13
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
14
Hex TT-Tap Scr 1/4-20 x 1.75 MTD-710-1026
...
15
SCREW 5/16-18 x .750 MTD-710-04484
...
16
TT Screw 3/8-16 x 1.25 MTD-710-1315
...
17
Hex Cap Bolt 1/4-20 x .75" Lg. MTD-710-3015
...
18
PIN 1/4-20:3/8 x 2.685 MTD-711-04636
...
19
CLEVIS PIN 3/8 x 2.75 MTD-711-04669
...
20
Belt Guard Pin MTD-911-0993
...
21
HEX NUT MTD-712-0206
...
22
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
23
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
24
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
25
HEX NUT MTD-712-0417A
...
26
Nut, Hex, M16-1.5 MTD-712-0641
...
27
HEX NUT MTD-712-3006
...
28
Hex Nut, 1/2-13 MTD-712-3083
...
29
Bow Tie Cotter Pin 1/8 x 1.25 MTD-714-04043
...
30
Deck Adjustment Gear MTD-917-04074
...
31
Port, Water MTD-737-04003D
...
32
Bolt Retainer 1/4" x .50" OD MTD-726-0233
...
33
CHUTE ASSEMBLY MTD-631-05229
...
34
Tension Spring .50 OD x 3.97" Lg. MTD-932-0429A
...
35
Extension Spring .75 x 6.835 MTD-732-04400
...
36
Extension Spring MTD-932-0594A
...
37
Extension Spring MTD-732-0814
...
38
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
39
L-Wash 5/16 ID MTD-936-0119
...
40
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
41
L-Washer Internal MTD-736-0225
...
42
Flat Washer .385 ID x 1.0 OD x .130 MTD-736-0258
...
43
SPRING WASHER BELL MTD-736-0270
...
44
Flat Washer .34 ID x 2.25 OD x .100 MTD-736-0418A
...
45
Screw Plug M16 x 1.50 MTD-738-04146
...
46
Shoulder Spacer MTD-938-0347
...
47
Shoulder Bolt .498 Dia x 1.53 x 3/8-16 MTD-938-0373
...
48
Shoulder Screw .43 x .29, 5/16-18 MTD-738-04091A
...
49
Shoulder Screw .625 x 2.515 x .875 MTD-738-04216A
...
50
46" BLADE (STAR) Outside MTD-742-0611A-0637
...
51
Three-in-one Blade, Star 14.88" MTD-942-0612A
...
52
Deck Front Hanger Rod MTD-747-1130B
...
53
Shoulder Spacer .25 THK MTD-748-0234
...
54
Flat Washer .640 ID x 1.24 OD x .06 MTD-736-0187
...
55
Spacer .260 x .372 x 1.420 MTD-750-04456
...
56
Spacer .260 x .375 x 1.030 Lg. MTD-750-0566A
...
57
SPACER .375X.63X.5 MTD-750-1320
...
58
V-Belt MTD-954-0349
...
59
Belt, V-type, à x 90.24 MTD-954-04122
...
60
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
61
Center Deck Skirt MTD-783-0141-0637
...
62
RH Deck Skirt MTD-783-0142-0637
...
63
46" IDLER BRACKET (POWDER BLACK) MTD-783-04641A-0637
...
64
BRAKE BRACKET MTD-783-05321-0637
...
65
Deck Belt Cover LH MTD-783-1348D-0637
...
66
Mulching Plug MTD-731-05264
...
67
WING NUT 1/4-20 MTD-712-3087
...
68
Carriage Bolt 1/4-20 x .62 MTD-710-0134
...
69
Water Nozzle Adaptor MTD-921-04041
...
70
Belt Keeper Rod MTD-747-04857
...
71
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
72
Hex L-Wash HD Scr 3/8-16 x 1.5 MTD-710-1007
...
73
Belt Keeper Rod, 42" Idler MTD-747-04530
...
...
...
...
...
