Columbia 13AM79GF897 (2010) M79GF (2010) Lawn Tractor

Model: 13AM79GF897 (2010) M79GF (2010)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

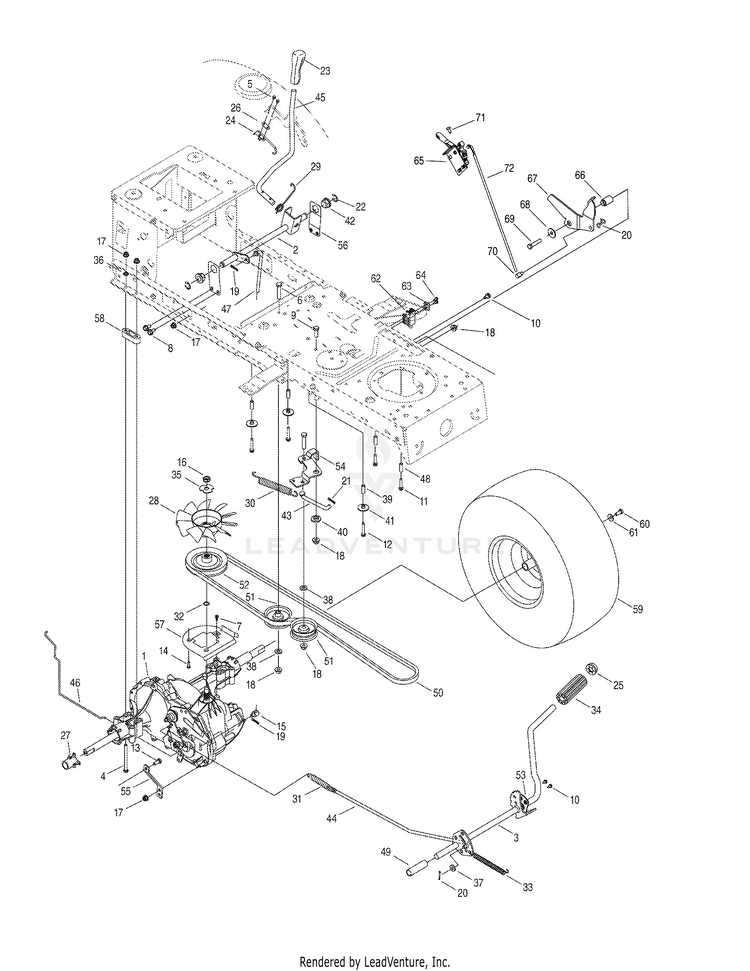

Drive Assembly

...
...
1
TRANSMISSION MTD-918-04198
...
2
CONTROL ASSEMBLY MTD-647-04038A
...
3
PEDAL ASSEMBLY (POWDER BLACK) MTD-647-04054A-0637
...
4
Hex Scr 5/16-18 x 2.75 MTD-710-0176
...
4
Hex Scr 5/16-18 x 3.5 MTD-710-1266
...
5
Hex Wash HD AB S-Tapp Scr #8-.50 MTD-710-0227
...
6
Hex Scr 3/8-16 x 1.75 MTD-710-0347
...
7
Screw #10-16 x .50 MTD-710-0351
...
8
SCREW 5/16-18 x .750 MTD-710-04484
...
9
Hex Scr 3/8-16 x 1.0 MTD-710-0514
...
10
Hex Scr 5/16-18 x 0.625 MTD-710-0604A
...
11
Hex Bolt 1/4-20 x 1.25 MTD-710-0809
...
12
Screw 1/4-20 x 1.25 MTD-710-1325
...
12
Screw 1/4-20 x 1.75 MTD-710-1026
...
13
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
14
Screw, #10-24 x .75 MTD-710-3009
...
15
Ferrule MTD-711-04448
...
16
Jam L-Nut 1/2-20 MTD-712-0346
...
17
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
18
Flange Locknut 3/8-16 Gr. F, Nylon MTD-712-04065
...
19
Int. Cotter Pin .072 x 1.13" Lg. MTD-714-0104
...
20
Bow Tie Cotter Pin MTD-714-04040
...
21
Cotter Pin 3/32 dia x 1.25 Lg. MTD-714-3004
...
22
E Ring .625 Dia. MTD-716-0106A
...
23
Handle Grip MTD-720-0311
...
24
Hydro Spring Switch MTD-725-04249
...
25
Push Cap 5/8" Dia Rod MTD-726-0214
...
26
Insulator Nut Plate MTD-926-0320
...
27
Sleeve, .765 x 1.5" Lg. MTD-731-05299A
...
28
Hydro Fan MTD-731-06098
...
29
Torsion Spring MTD-732-04225
...
30
Ext. Spring .75 Dia. x 6.02 MTD-732-04229
...
31
Ext. Spring .59 OD x 4.00 Lg. MTD-732-0716D
...
32
Wire Ring MTD-732-0729
...
33
Extension Spring .50 dia. x 6.37 MTD-732-0963
...
34
FOOT PAD MTD-735-0239A
...
35
Lockwasher Trans Hydro MTD-736-04263
...
36
Lockwasher 5/16 ID MTD-736-0607
...
37
Flat Washer .344 x .750 x .120 MTD-936-3008
...
38
Flat Washer .407 x .812 x .135 HT MTD-736-3010
...
39
Spacer .260 x .375 x 1.030 Lg. MTD-750-0566A
...
39
Spacer .260 x .372 x 1.420 MTD-750-04456
...
40
Screw, 3/8-16 x 1.75 MTD-710-0347
...
41
SHOULDER SPACER .375 MTD-938-04178
...
41
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
42
Hex Flange Bear ing .630 ID MTD-941-0225
...
43
DECLUTCHING ROD MTD-747-04283B
...
44
BRAKE ROD MTD-747-04286
...
45
Hydro Control Handle MTD-747-04296A
...
46
HYDRO BYPASS ROD MTD-747-04316
...
47
Hydro Control Rod MTD-747-04407A
...
48
Spacer, .260 x .375 x 1.030" Lg. MTD-750-0566A
...
49
Spacer, .640 x .76 x 2.6" Lg. MTD-750-0802
...
50
V-BELT 4L x 84.17" MTD-954-04252
...
51
Flat Idler Pulley 2.75 OD MTD-756-04224
...
52
INPUT PULLEY 5.0 DIA MTD-756-04309
...
53
Support Pedal Bracket MTD-783-04536B-0637
...
54
Idler Arm MTD-783-04570B-0637
...
55
HYDRO TORQUE BRACKET MTD-783-04579A-0637
...
56
Handle Bracket MTD-783-04585A
...
57
DISENGAGE BRACKET MTD-783-04600A-0637
...
58
Spacer, T-Axle, 46" only MTD-948-0334
...
59
Wheel Assembly Complete, 20 x 8 x 8 MTD-634-0104-0911
...
59
Tire Only, 20 x 8 x 8, Square Shoulder MTD-734-1730-0901
...
59
Rim Only MTD-634-04369-0662
...
60
Hex L-Screw 5/16-24 x 0.75 Gr. 5 MTD-710-0627
...
61
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
62
Interlock Switch MTD-725-04363
...
63
Switch Plate MTD-17962
...
64
Rivet MTD-728-04021
...
65
Hydro Ass'y MTD-983-04226
...
66
Flange Spacer MTD-750-04465B
...
67
SPEED TRANSMISSION LATCH MTD-783-04862
...
67
SPEED LATCH BRACKET MTD-783-04903
...
68
Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090 MTD-736-0133
...
69
Hex Screw 3/8-16 x 2.0 Gr. 5 MTD-710-3144
...
70
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
71
SCREW 1/4-20 x .500 MTD-710-04483
...
72
Control Speed Selector Rod MTD-747-04430
...
...
...
...
...
