Columbia 13AM79GF897 (2010) M79GF (2010) Lawn Tractor

Model: 13AM79GF897 (2010) M79GF (2010)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

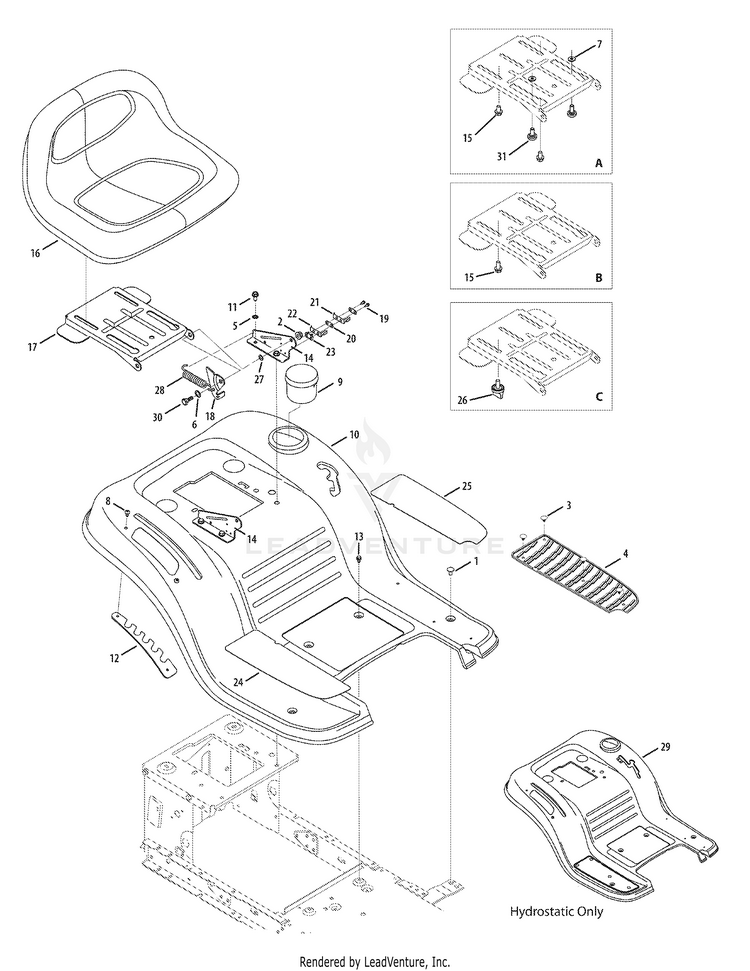

Seat & Fender

...
...
1
Carriage Bolt 1/4-20 x .62 MTD-710-0134
...
2
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
3
Ratchet Clip MTD-726-04072A
...
4
Foot Pad, RH MTD-735-04048
...
4
Foot Pad, LH MTD-735-04047
...
5
Lockwasher 5/16 ID MTD-736-0607
...
6
Flat Washer .510 x .750 x .033 MTD-936-0108
...
7
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
7
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
8
SCREW 1/4-20 x .500 MTD-710-04483
...
9
Cup Holder MTD-731-04591A
...
10
FENDER (MAJESTIC ORANGE) MTD-783-04587E-0606
...
11
SCREW 5/16-18 x .750 MTD-710-04484
...
12
Lift Adjustment Bracket MTD-783-04843-0637
...
13
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
14
Seat Mount Bracket MTD-783-1489D-0637
...
15
Screw 3/8-16 x .875 MTD-710-04482
...
16
LOW BACK SEAT, BLACK (3 PT) MTD-757-05230
...
17
Pivot Seat Manual Adjust Bracket MTD-783-04081D-0637
...
18
Seat Lift Bracket MTD-783-0209D
...
19
Hex Wash HD AB S-Tapp Scr #8-.50 MTD-710-0227
...
20
Insulator Plate MTD-726-0279
...
21
Spring Switch MTD-925-1303
...
22
Seat Spring Switch MTD-725-1439
...
23
Insulator Plate MTD-726-0278
...
24
Foot Pad, Abra sive, RH MTD-723-04025
...
25
Foot Pad, Abra sive, LH MTD-723-04026
...
26
Knob MTD-720-04061
...
27
Push Speed Nut MTD-726-0201
...
28
Extension Spring .84 Dia. x 4.6 MTD-732-1184
...
29
FENDER (MAJESTIC ORANGE) MTD-783-04593F-0606
...
30
Shld. Bolt .437" x .286" MTD-738-0296
...
31
SHOULDER SCREW.625 x .110:3/8-16 MTD-738-04012C
...
...
...
...
...
