Columbia 13AC76GF897 (2011) C76GF (2011) Lawn Tractor

Model: 13AC76GF897 (2011) C76GF (2011)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

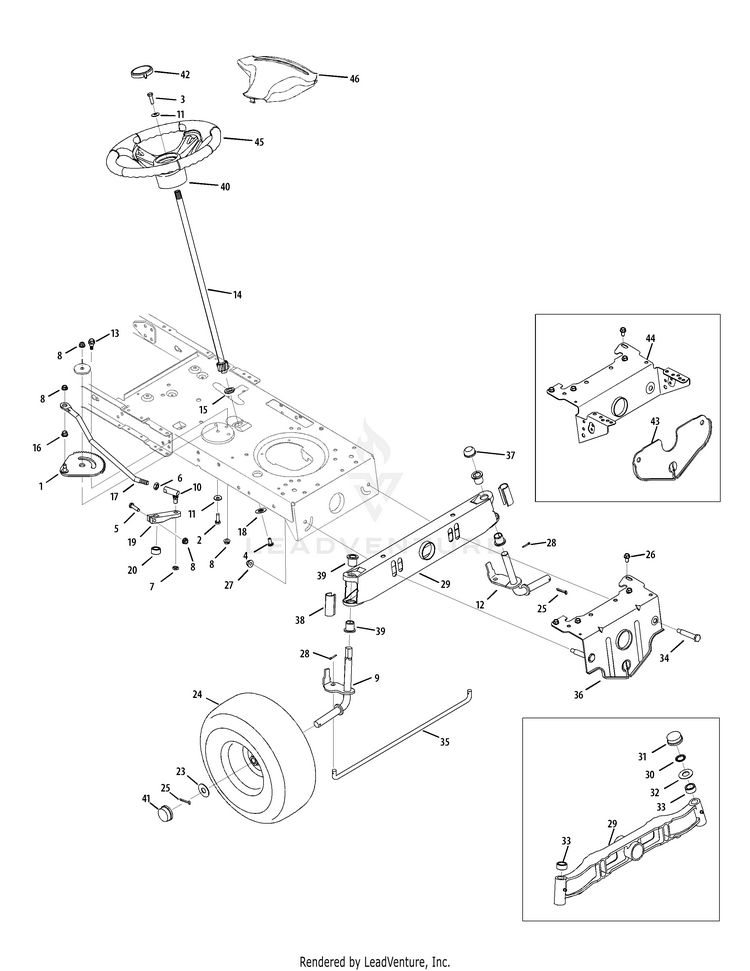

Steering & Front Axle

...
...
1
FRONT STEERING GEAR ASSEMBLY MTD-617Z04094A
...
2
Hex Hd. Cap Screw 3/8-16 x 1,00 Gr. 5 MTD-710-0514
...
3
Hex Screw 5/16-18 x 1.00 Special MTD-710-0643
...
4
Machine Screw 5/16-18 x .75 MTD-710-1309
...
5
Hex Screw 5/16-18 x 1.75" Lg. MTD-710-3180
...
6
Hex Jam Nut 7/16-20 MTD-912-0240
...
7
Hex Cent-L Nut 3/8-24 Gr. B MTD-912-0214
...
8
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
9
Axle Assembly, RH MTD-638-04008P
...
9
AXLE ASSEMBLY, (RH) (46"<BR/> Deck) MTD-938-04013
...
10
Ball Joint, 7/16 - 20 MTD-923-0448A
...
11
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
12
Axle Assembly, LH MTD-938-04007A-0637
...
12
FRONT AXLE ASSEMBLY(LH) (46"<BR/> Deck) MTD-938-04014A-0637
...
13
Shoulder Screw .435 x .3485, 5/16-18 MTD-738-04141
...
14
Steering Shaft MTD-738-0919B
...
15
Bearing, Flange, Hex 5/8 MTD-741-04124
...
16
Plastic Bushing .375 ID x .5 MTD-941-04454
...
17
Drag Link, Steering MTD-747-05385A
...
18
Cap, 1.25 x .16 MTD-948-0389
...
19
Steering, Block MTD-748-04278
...
20
Spacer .710 ID x .125 OD x .56 MTD-748-04068
...
22
Shoulder Spacer .884 x .190 MTD-738-04162C
...
23
FLAT WASHER .781 ID x1.590 OD MTD-736-04228B
...
24
WHEEL ASSEMBLY (15 x 6 x 6) MTD-634-05067
...
24
Tire Only Not shown MTD-734-1731
...
24
RIM ASSEMBLY (6 x 4.5 x 1) Not shown MTD-634-04634
...
24
Valve Not shown MTD-934-0255
...
24
WHEEL ASSEMBLY (15 x 6 x 6) MTD-634-05067
...
24
Tire Only Not shown MTD-734-1731
...
24
RIM ASSEMBLY (6 X 4.5) Not shown MTD-634-05066
...
24
Valve Not shown MTD-934-0255
...
25
COTTER PIN-5/32 DIA MTD-714-0162
...
26
SCREW 5/16-18 x .750 MTD-710-04484
...
27
Flange Lock-Nut 3/8-16 Gr. F, Nylon MTD-712-04065
...
28
Cotter Pin 1/8" Dia x .75 MTD-914-0474
...
29
PIVOT BAR (stamped steel) MTD-683-0128B
...
29
CAST PIVOT BAR AXLE (cast iron) MTD-919-04177E
...
30
Push Nut 3/4" MTD-726-04035
...
31
HUB CAP MTD-731-04693
...
32
Flat Washer MTD-736-0316
...
33
Spacer .71 x .125 x .56 MTD-748-04068
...
34
Shoulder Screw .500 x 2.380, 3/8-16 MTD-738-04128
...
35
Tie Rod MTD-747-04299A
...
36
PIVOT BAR BRACKET (POWDER BLACK) MTD-783-05326D-0637
...
37
Push Cap, .750 MTD-726-0341
...
38
Axle End Cap, Standard MTD-731-04057A
...
39
Flange Bearing .760 ID x .937 OD MTD-741-0660A
...
40
Steering Wheel, Standard Grip MTD-631-04028
...
41
Plastic Hub Cap MTD-931-0484A
...
42
Steering Wheel Cap (w/o logo) MTD-731-04039
...
42
Steering Wheel Cap (sprig logo) MTD-731-04040
...
43
Front Deck Hanger Bracket MTD-783-04568
...
44
Pivot Bracket MTD-783-04601C
...
45
Steering Wheel MTD-631-04028
...
45
STEERING WHEEL MTD-631-04008B
...
46
Steering Wheel Cover (MTD) MTD-731-04065A
...
...
...
...
...
