Columbia 13AC76GF897 (2011) C76GF (2011) Lawn Tractor

Model: 13AC76GF897 (2011) C76GF (2011)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

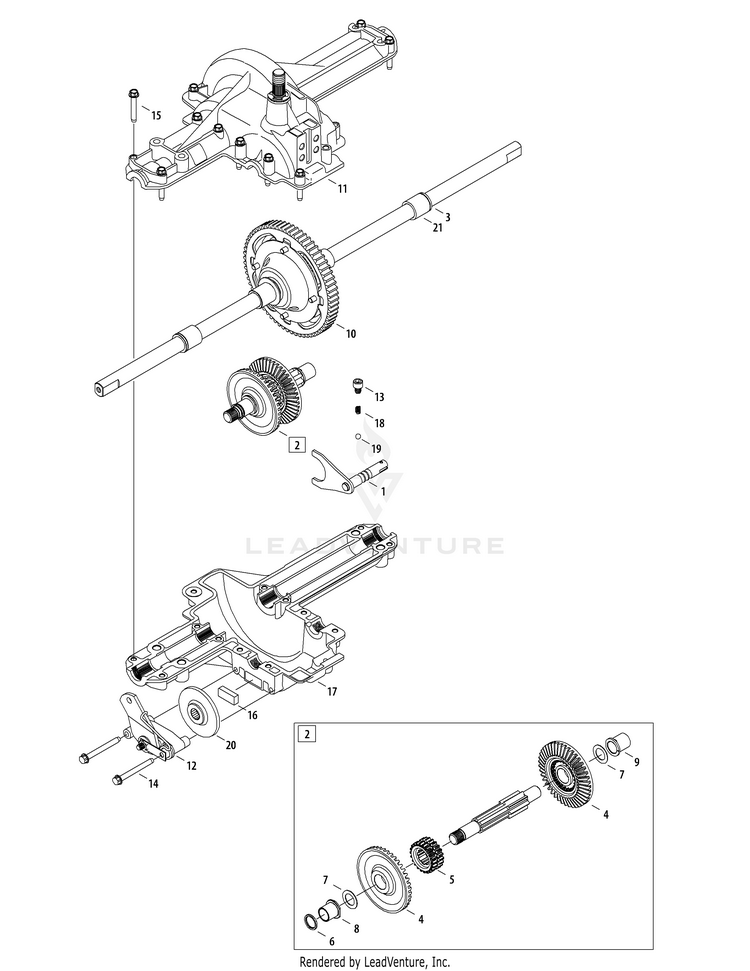

Transmission

...
...
1
Detent Shaft Assembly MTD-911-0011
...
2
FWD/REV SHAFT ASSEMBLY MTD-911-05051
...
3
Seal MTD-921-0338
...
4
Bevel Gear 42T MTD-917-04479B
...
5
Single Speed Clutch Collar MTD-718-04381P
...
6
Seal .625 x .812 x .94 MTD-721-0213
...
7
Flat Washer 5/8 ID x 1.0 OD x .030 Use applicable flat washers MTD-936-0336
...
7
Flat Washer 5/8 ID x 1.0 OD x 0.040 Use applicable flat washers MTD-936-0337
...
7
Flat Washer 5/8 ID x 1.0 x .020 Use applicable flat washers MTD-936-0349
...
7
Flat Washer .632" ID x 1.0 OD x .035 Use applicable flat washers MTD-736-0494
...
8
THRUST WASHER MTD-736-0495
...
9
Flange Bearing 5/8 x 3/4 x 3/4 MTD-941-0336
...
9
Flange Bearing 5/8 x 3/4 x 15/16 MTD-941-0337
...
10
Differential Assembly MTD-918-04619
...
11
UPPER HOUSING ASSEMBLY MTD-919-04187A
...
12
Brake Ass'y MTD-961-0001
...
13
S-tapping Screw 5/16-18 x .375 MTD-710-04731
...
14
Hex Wash. Hd. Self-Tap Screw. 1/4-20 MTD-710-1206
...
15
S-tapping Screw 1/4-10 x 1.625 MTD-710-1325
...
16
Brake Puch MTD-917-0678
...
17
LOWER TRANSAXLE HOUSING MTD-919-04329B
...
18
DETENT SHAFT SPRING MTD-932-05125
...
19
DETENT BALL .250 MTD-741-0862
...
20
Brake Disc MTD-761-0202
...
21
SLEEVE BEARING .75X1.00X1.00 MTD-741-05060
...
...
...
...
...
