Columbia 13AC76GF897 (2011) C76GF (2011) Lawn Tractor

Model: 13AC76GF897 (2011) C76GF (2011)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

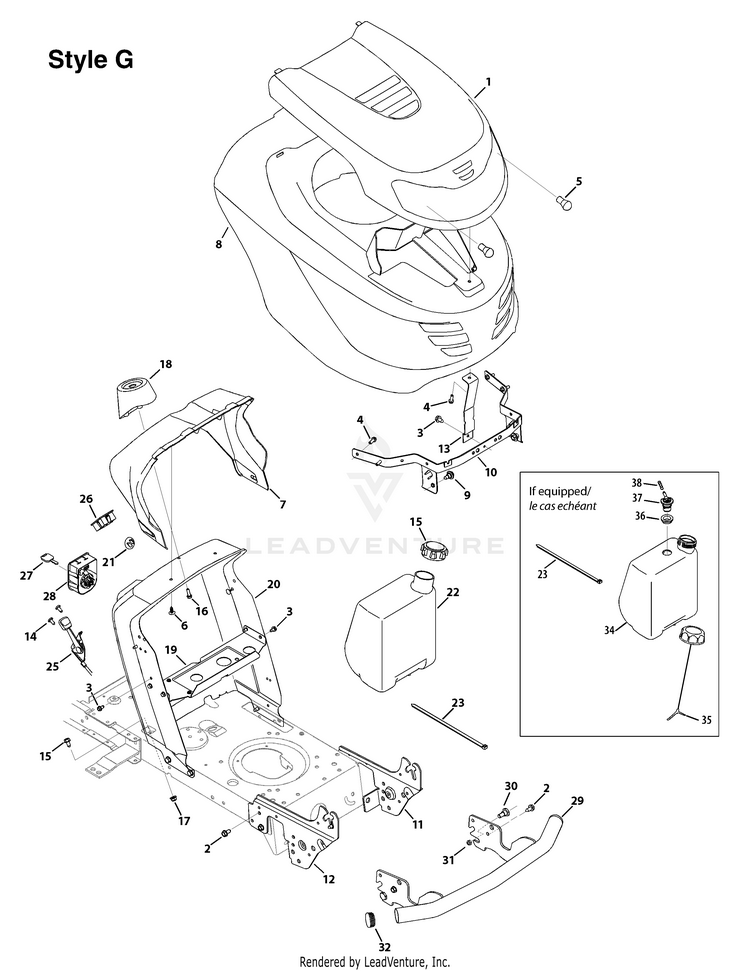

Hood Style G

...
...
1
Grille Style G Ass'y (incl. lens) MTD-731-04308
...
1
Lens Style G Not shown MTD-931-06564
...
1
LABEL-REFLECTOR G-STYLE Not shown MTD-777X43285
...
2
SCREW 5/16-18 x .750 MTD-710-04484
...
3
Hex Wash S-Tapp Screw 1/4-20 x .50 MTD-710-0599
...
4
Hex Tapp Screw 1/4 x .75" Lg. MTD-710-0895
...
5
Miniature Lamp 12V Socket Type MTD-925-0963
...
6
Rachet Clip MTD-726-3046
...
7
DASH COLLAR MTD-931-06470A
...
8
HOOD G-STYLE MTD-931-06537
...
9
Shoulder Screw 5/16-18, .43 x .29 MTD-738-04091A
...
10
Pivot Hood Bracket MTD-783-04606C
...
11
LH Pivot Bracket MTD-783-05327B
...
12
PIVOT SUPPORT BRACKET (RH) MTD-783-05328B
...
13
HOOD SUPPORT BRACKET MTD-783-06117-0637
...
14
SCREW 1/4-20 x .500 MTD-710-04483
...
15
TANK CAP MTD-751-0603B
...
16
Hex Tapp Screw 1/4 x .75" Lg. MTD-710-0895
...
17
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
18
Steering Support MTD-731-04945
...
19
Gas Tank Support Bracket MTD-783-04584B-0637
...
20
DASH-LT-5 RMC MTD-783-04892B
...
21
Choke Plug MTD-731-05265
...
22
FUEL TANK 1.36 GAL MTD-751-0555D
...
23
Cable Tie MTD-726-0230
...
25
Choke/Throttle Cable MTD-746-04364
...
26
Indicator Monitor MTD-925-04156
...
27
Key MTD-925-1745A
...
28
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
29
Bumper Ass'y MTD-683-04219B
...
30
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
31
Hex Ctr. L-Nut 3/8-16 Thd. MTD-712-3000
...
32
Cap MTD-731-05674
...
34
FUEL TANK (1.36 GAL) MTD-651P08849
...
35
FUEL CAP W/12"TETHER VENTED MTD-951-12179C
...
36
Rubber Grommet MTD-735-04081
...
37
Roll over Valve MTD-751-12118
...
38
Hose Vent MTD-751-12089-28
...
xx
MAIN HARNESS (RMC/AM/ACDC/BULB) RMC® (Reverse Mowing Control), Not shown MTD-725P04432P
...
...
...
...
...
