Columbia 13AC76GF897 (2011) C76GF (2011) Lawn Tractor

Model: 13AC76GF897 (2011) C76GF (2011)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

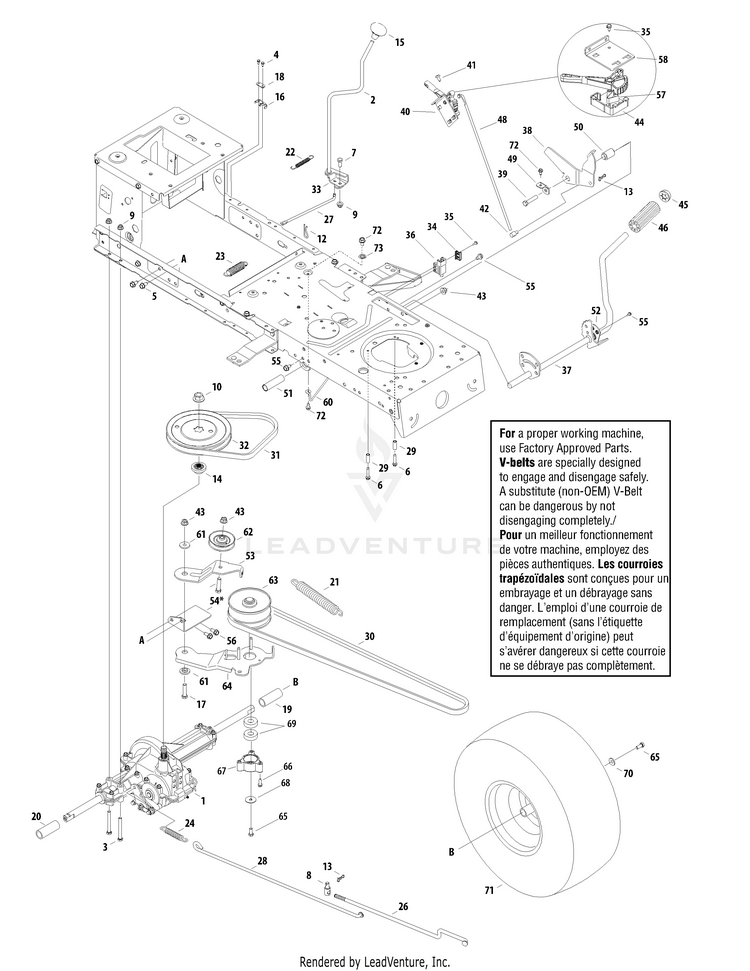

Drive & Rear Wheel

...
...
1
TRANSAXLE MTD-618P09815
...
2
Shift Lever Asm MTD-647-04035
...
3
Hex Screw 5/16-18 x 2.75 MTD-710-0176
...
4
Hex Wash HD AB S-Tapp Screw #8-.50 MTD-710-0227
...
5
SCREW 5/16-18 x .750 MTD-710-04484
...
6
Hex Bolt 1/4-20 x 1.25 MTD-710-0809
...
7
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
8
Ferrule MTD-911-04075A
...
9
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
10
Flange Nut MTD-712-0700
...
11
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
12
Cotter Pin MTD-914-0209
...
13
Bow Tie Cotter Pin MTD-714-04040
...
14
Pulley Hub 5/8" Spline MTD-718-04407
...
15
Shift Knob MTD-720-04028
...
16
SAFETY SPRING SWITCH MTD-725-1644
...
17
Screw, 3/8-16 x 1.75 MTD-710-0347
...
18
Insulator Nut Plate MTD-926-0320
...
19
Sleeve, .758 x .821 x 3.3125 MTD-731-04602
...
20
Sleeve, .758 x .821 x 2.4375 MTD-731-04604
...
21
Spring, Extension, .94 OD x 6.75 MTD-732-04746
...
22
Spring, Extension MTD-732-04488
...
23
Spring, Extension, .80 OD x 3.28 MTD-732-04306
...
24
Ext. Spring .59 OD x 4.00 Lg. MTD-732-0716D
...
25
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
26
Control Rod, Variable Speed MTD-747-05186
...
27
Shift Rod (38"/42" deck) MTD-747-05244
...
27
Shift Rod (46" deck) MTD-747-05243
...
28
BRAKE ROD MTD-747-04733A
...
29
Spacer .260 x .375 x 1.030 Lg. MTD-750-0566A
...
30
Belt MTD-954-04249A
...
31
Belt MTD-954-05040
...
32
Pulley, V-Type, 7.25 dia. MTD-956-04002
...
33
Shift Bracket, Adjustable MTD-783-04595A
...
34
Switch Plate MTD-17962
...
35
Hex AB-Tap Screw #10 X .50" Lg. MTD-910-0224
...
36
Interlock Switch MTD-725-04363
...
37
Drive Pedal Assembly MTD-647-04034C
...
38
SPEED TRANSMISSION LATCH RMC (Reverse Mowing Control) MTD-783-04862
...
38
SPEED LATCH BRACKET MTD-783-04903
...
39
Hex Screw 3/8-16 x 2.0 Gr. 5 MTD-710-3144
...
40
CONTROL ASSEMBLY: 6 SPD MTD-983-04225
...
40
7 Speed Shift Control Ass'y MTD-983-04216
...
41
SCREW 1/4-20 x .5 MTD-710-05070A
...
42
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
43
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
44
CONTROL COVER MTD-731-05361
...
45
Push Cap 5/8" Dia Rod MTD-726-0214
...
46
FOOT PAD MTD-735-0239A
...
48
Speed Selecter Control Rod MTD-747-04430
...
49
Tab MTD-783-06823
...
50
Flange Spacer .390 x .671 x 1.095 MTD-750-04465B
...
51
Spacer .630 ID MTD-750-0802
...
52
Pedal Support Bracket MTD-783-04536B
...
53
Idler Bracket MTD-753-05147
...
54
VARIABLE SPEED BRACKET MTD-783-04567B
...
55
Self-tapping Screw 5/16-18 x .625 MTD-710-0604A
...
56
Hex Wash. Hd. Screw. 5/16-18 x .75 Lg. MTD-710-1260A
...
57
Shift Lever Spring MTD-732-0627A
...
58
Control Bracket (Order Ref 40) MTD-NA
...
60
Belt Keeper Rod MTD-747-04969
...
61
Shoulder Spacer MTD-938-0347
...
62
Flat Idler MTD-756-04325
...
63
VARIABLE SPEED PULLEY (4.75 OD) MTD-656P05011
...
64
Idler Bracket MTD-753-05147
...
65
Hex L-Screw 5/16-24 x 0.75 Gr. 5 MTD-710-0627
...
66
Hex Screww 1/4-20 x 1.5 MTD-710-0778
...
67
Bearing Cup MTD-718-04261
...
68
Flat Washer .22 ID x 1.25 MTD-736-0362
...
69
Ball Bearing 17 x 40 x 12 MTD-941-0600
...
70
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
71
Wheel Assembly 20 x 8 x 8 MTD-634-0104
...
71
Tire Only 20 x 8 x 8 (Not shown) MTD-734-1730
...
71
Rim Only 20 x 8 x 8 (Not shown) MTD-634-04369
...
71
Valve 20 x 8 x 8 (Not shown) MTD-934-0255
...
71
WHEEL ASSEMBLY W/TIRE 18X6.5-8 MTD-734-0592
...
71
Tire Only 18 x 6.5 x 6 (Not shown) MTD-734-0294
...
71
Rim Only 18 x 6.5 x 6 (Not shown) MTD-634-04174
...
71
Valve 18 x 6.5 x 6 (Not shown) MTD-934-0255
...
72
Hex Wash S-Tapp Screw 1/4-20 x .50 MTD-710-0599
...
73
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
...
...
...
...
