Columbia 12AE76M8897 SP33HW (2018) Self Propelled Walk Behind Mower

Model: 12AE76M8897 SP33HW (2018)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

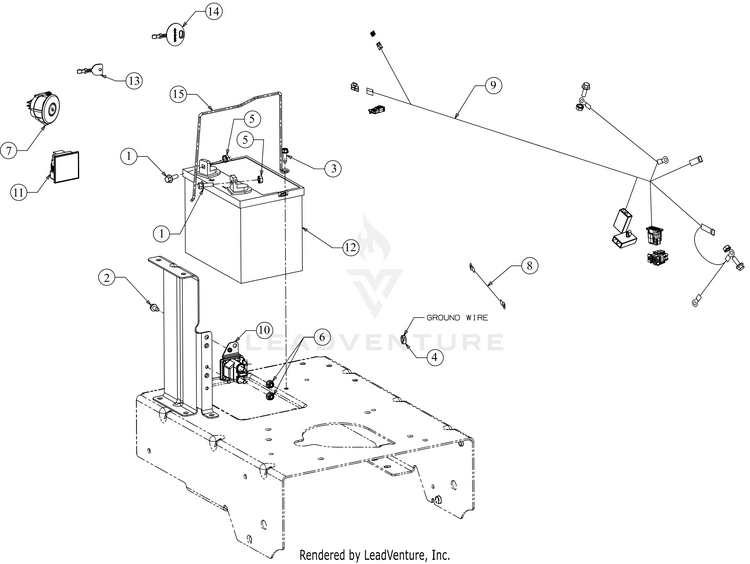

Electrical

...
...
1
SCREW 1/4-20 X .75 GR5 MTD-710-04666
...
2
SCREW 1/4-20 X.500 MTD-710-0599
...
3
SCREW 1/4-20 X .750 MTD-710-0642
...
4
JAM LOCK NUT MTD-712-0266A
...
5
SEMS NUT 1/4-20 MTD-712-0271
...
6
FLANGE LOCK NUT MTD-712-04064
...
7
KEY SWITCH 3 POSITION MTD-925-04228
...
8
STARTER HARNESS MTD-725-04478
...
9
HARNESS MTD-925-05266
...
9
SCREW 1/4-20 X .75 GR5 (Not Shown) MTD-710-04666
...
9
SEMS NUT 1/4-20 (Not Shown) MTD-712-0271
...
10
12V SOLENOID MTD-725-06153A
...
11
HOUR METER/SERVICE MINDER MTD-925-06170B
...
12
BATTERY MTD-925-1707D
...
13
IGNITION KEY MTD-925-1745A
...
14
Key MTD-925-1745A
...
15
BATTERY HOLD DOWN STRAP MTD-747-04657
...
...
...
...
...
