Columbia 12AE76M8897 SP33HW (2018) Self Propelled Walk Behind Mower

Model: 12AE76M8897 SP33HW (2018)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

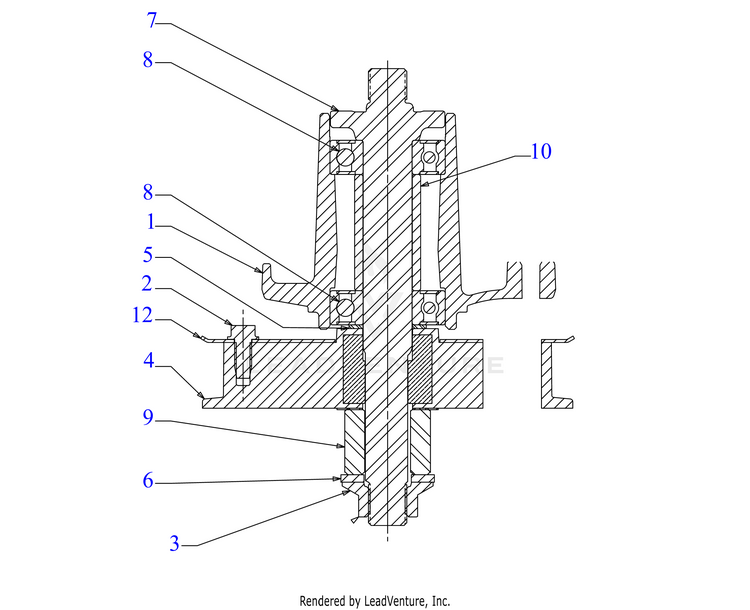

Deck Driven Spindle

...
...
1
SPINDLE HOUSING (Not serviceable) MTD-NA
...
2
SCREW 1/4-10:.625 MTD-710-04065
...
3
FLANGE NUT 5/8-18 MTD-712-05134
...
4
TIMING PULLEY 56T 11T SPLN MTD-913-04040A
...
5
Washer, Flat, .793 x 1.24 x .060 MTD-736-0287
...
6
FLAT WASHER MTD-736-0315
...
7
SPINDLE SHAFT 6.65 MTD-938-04233
...
8
BALL BEARING MTD-741P0919B
...
9
DECK SPINDLE SPACER MTD-750-04724
...
10
SPACER- .792 x 1.060 x 1.860 MTD-750-04936
...
12
TIMING PULLEY PLATE MTD-787-01520
...
xx
SPINDLE ASSEMBLY (Complete assembly) MTD-918-04439C
...
...
...
...
...
