Columbia 12AE76M8897 SP33HW (2017) Self Propelled Walk Behind Mower

Model: 12AE76M8897 SP33HW (2017)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

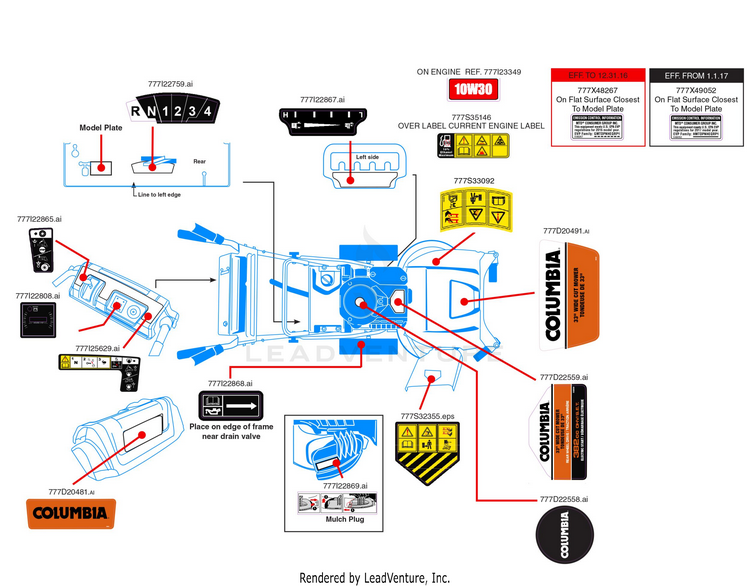

Label Map

...
...
xx
LABEL-SPEED INDICATE MTD-777I22759
...
xx
LABEL-HEIGHT ADJUST MF EXP MTD-777I22867
...
xx
LABEL-WIDECUT HANDLE (LH) MF EXP MTD-777I22865
...
xx
LABEL-HOUR METER MTD-777I22808
...
xx
LABEL-WIDECUT HANDLE (RH) MF EXP MTD-777I22866
...
xx
LABEL-OIL DRAIN MF EXP MTD-777I22868
...
xx
LABEL-MULCH PLUG 33" WCM EXP MTD-777I22869
...
xx
LABEL-MOWER ENGINE SHROUD MTD MTD-777S35146
...
xx
LABEL-DECK SAFETY PICTORIAL WCM MTD-777S33092
...
xx
LABEL:RIDER:SAFETY MTD-777S32355
...
xx
LABEL-WCM FRNT COVER COLUMBIA MTD-777D20491
...
xx
LABEL - 33" WIDE CUT COLUMBIA CAN MTD-777D22559
...
xx
LABEL-ENGINE COLUMBIA MTD-777D22558
...
xx
LABEL-WCM HNDL PNL COLUMBIA MTD-777D20481
...
...
...
...
...
