Columbia 12AE76M8897 SP33HW (2017) Self Propelled Walk Behind Mower

Model: 12AE76M8897 SP33HW (2017)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

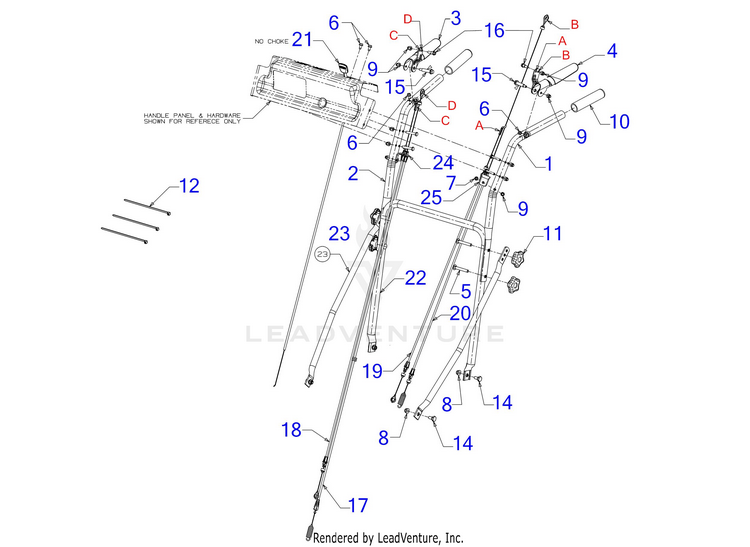

Handles

...
...
1
UPPER HANDLE ASSEMBLY (LH) MTD-649-05013B-0637
...
2
UPPER HANDLE ASSEMBLY (RH) MTD-649-05014B-0637
...
3
LEVER ASSEMBLY (RH) MTD-687P02426C
...
4
LEVER ASSEMBLY (LH) MTD-687P02427C
...
5
SCRE W5/16-18 x 2.25 GR5 MTD-710-0572
...
6
SCREW 1/4-20 X.500 MTD-710-0599
...
7
SCREW 1/4-20 x 1.50 GR.5 MTD-710-0606
...
8
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
9
Acorn Lock Nut 1/4-20 MTD-712-0442
...
10
GRIP MTD-720-0274
...
11
STAR KNOB 5/16-18 MTD-720-04072A
...
12
7" CABLE TIE MTD-725-0157
...
14
Shoulder Bolt 7/16" Dia. x 1.75" MTD-738-0140
...
15
SHOULDER BOLT .375X1.285:1/4-20 MTD-738-05041A
...
16
SHOULDER SCREW .342X.335X1/4-20 MTD-738-05149A
...
17
BLADE CONTROL CABLE MTD-946-05073
...
18
TRANSMISSION BRAKE CABLE (RH) MTD-946-05076A
...
19
TRANSMISSION BRAKE CABLE (LH) MTD-946-05077A
...
20
WHEEL CLUTCH CABLE MTD-946-05149
...
21
THROTTLE CABLE MTD-946-05354
...
22
LOWER HANDLE MTD-749-04330-0637
...
23
HANDLE ADJUSTMENT BRACE MTD-749-04333-0637
...
24
CABLE BRACKET MOUNTING (RH) MTD-787-01490A-0637
...
25
CABLE BRACKET MOUNTING (LH) MTD-787-01491A-0637
...
...
...
...
...
