Columbia 12ACD29W897 SP21SE (2016) Self Propelled Walk Behind Mower

Model: 12ACD29W897 SP21SE (2016)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

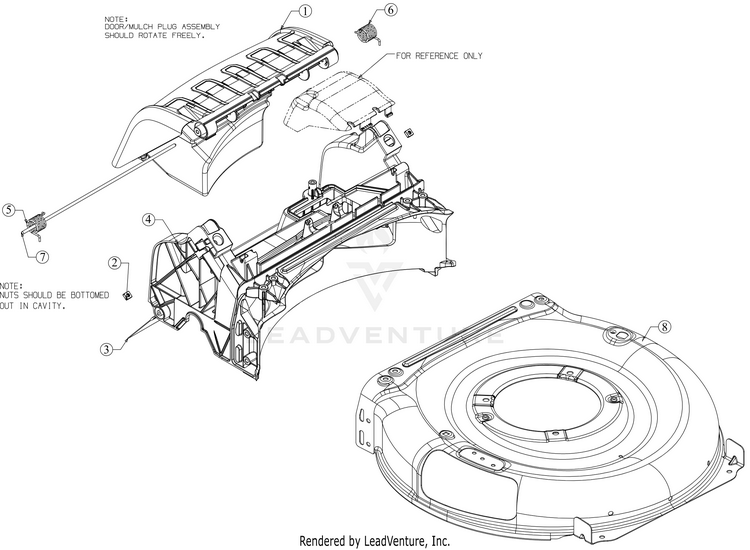

Deck Assembly

...
...
1
N/A (Not Serviceable; Order Part Number 631-04554A) MTD-NA
...
2
SQUARE NUT 1/4-20 MTD-712-04222
...
3
TRAILSHIELD MTD-731-07203
...
4
N/A (Not Serviceable; Order Part Number 631-04554A) MTD-NA
...
5
TORSION SPRING (RH) MTD-732-05061B
...
6
TORSION SPRING (LH) MTD-732-05062A
...
7
REAR DOOR PIVOT ROD MTD-747-05183
...
8
21" DECK (3N1) MTD-787-02003B-0606
...
xx
REAR BAG BAFFLE ASSEMBLY (Not Shown) MTD-631-04554A
...
...
...
...
...
