Columbia 12ABW32G897 SP28S (2016) Self Propelled Walk Behind Mower

Model: 12ABW32G897 SP28S (2016)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

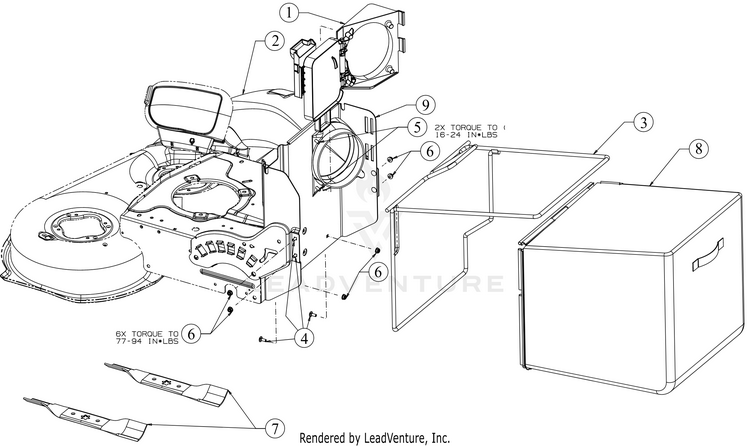

Grassbag

...
...
1
GRASSBAG DOOR ASSEMBLY MTD-631-05335B
...
1
PUSH CAP (NOT SHOWN) MTD-726-04009A
...
1
CHUTE HINGE PIN (NOT SHOWN) MTD-747-06290B
...
1
SPACER (NOT SHOWN) MTD-750-0885A
...
2
CHUTE ASSEMBLY MTD-931-05337
...
2
FLANGE LOCK NUT (NOT SHOWN) MTD-712-04064
...
2
SCREW 1/4-20 x .620 GR5 (NOT SHOWN) MTD-710-0751
...
2
FLAT WASHER .28 ID x .74 OD x .063 (NOT SHOWN) MTD-736-0173
...
3
GRASSBAG FRAME MTD-647-05065-0637
...
4
CARRIAGE BOLT 1/4-20 x .62 MTD-710-0134
...
5
SCREW 1/4 x .750 MTD-710-05108
...
6
FLANGE LOCK NUT MTD-712-04064
...
7
14.2" BLADE (HI-LIFT) MTD-742-05235-0637
...
8
28" MOWER GRASSBAG (PLAIN BLACK) MTD-964-05060B
...
9
GRASSBAG SUPPORT BRACKET (POWDER BLACK) MTD-787-03589-0637
...
...
...
...
...
