Columbia 12ABD29V897 (2015) Self Propelled Walk Behind Mower

Model: 12ABD29V897 (2015)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
Air Filter MTD-BS-795066
...
xx
PRE-CLEANER NLAUD MTD-BS-796254
...
xx
Blade MTD-942-0741A
...
xx
Blade - Xtreme (Optional) MTD-942-0741-X
...
xx
Blade Adapter MTD-687-02220
...
xx
Blade Bolt MTD-710-1044
...
xx
CABLE-CONTROL ERS 50.00 WLKBND MTD-946-05107B
...
xx
Discharge Chute MTD-731-07131
...
xx
Drive Belt MTD-954-04282
...
xx
Drive Cable MTD-946-05121A
...
xx
Fuel Cap MTD-BS-591003
...
xx
Grass Bag Frame MTD-747-05362A
...
xx
Grass Bag Only MTD-964-04097B
...
xx
HINGED MULCH PLUG ASSEMBLY MTD-987-05206
...
xx
Spark Plug MTD-759-3336
...
xx
Trailshield MTD-731-07203
...
xx
Wheels - Front MTD-634-04665
...
xx
Wheels - Rear MTD-934-04699
...
xx
Blade Removal Tool (Optional Accessory) MTD-490-850-0005
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional Accessory) MTD-490-850-0018
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional Accessory) MTD-490-850-0018
...
xx
SIPHON PUMP (Optional Accessory) MTD-490-850-0008
...
xx
Side Discharge Blower (Optional Accessory) MTD-490-850-0016
...
xx
UTILITY CARGO CARR (Optional Accessory) MTD-490-850-0015
...
xx
FLOOR MAT (Optional Accessory) MTD-735-04255
...
xx
MOWER KICK STAND (Optional Accessory) MTD-490-850-0012
...
xx
Mower Cover (Optional Accessory) MTD-490-290-0012
...
xx
COATING-GRAPHITE MOWER (Optional Accessory) MTD-490-900-0062
...
xx
STA-BIL 32 OZ (Optional Accessory) MTD-22287
...
xx
FUEL STABILIZER (Optional Accessory) MTD-22208
...
xx
CARB & CHOKE CLEAN (Optional Accessory) MTD-490-000-0028

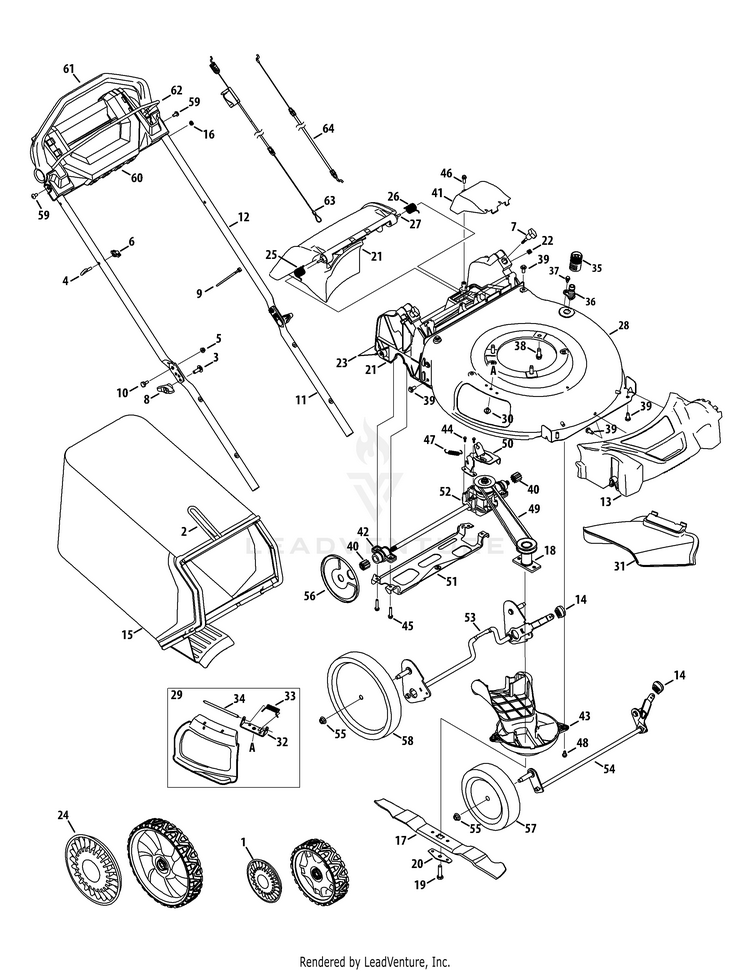

General Assembly

...
...
1
Hubcap, 8", Grey MTD-731-09429
...
2
GRASSBAG FRAME MTD-747-05362A
...
3
Carriage Screw ,5/16-18 MTD-710-04998
...
4
Rope Guide MTD-710-1205
...
5
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
6
Knob MTD-720-0279
...
7
Wing Nut MTD-720-05066A
...
8
Wing Knob MTD-720-04122
...
9
Cable Tie MTD-725-0157
...
10
Shdr. Screw, .375 x .126 x 1/4-20 MTD-738-04419A
...
11
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
12
UPPER HANDLE (POWDER BLACK) MTD-749-05084B-0637
...
13
Front Cover MTD-731-09618
...
14
Adjustment Lever Knob MTD-720-04130
...
15
Grass Bag MTD-964-04097B
...
16
Shoulder Spacer, .18 x .315 x .09 MTD-748-05047
...
17
Mulching Blade MTD-942-0741A
...
17
Cub Cadet 21" MULCH BLADE Retail Packaged Part MTD-490-100-C089
...
17
Genuine Factory Parts 21" MULCHING BLADE (0741A) Retail Packaged Part MTD-490-100-M084
...
17
21" BLADE (MULCH) (XTREME) MTD-942-0741-X
...
18
Blade Adapter MTD-687-02220
...
19
Screw, 3/8-24 x 1.50 MTD-710-1044
...
20
BLADE BELL SUPPORT MTD-736-0524B-1
...
21
Rear Discharge Door Assembly MTD-631-04554A
...
22
Nut, Sq., 1/4-20 MTD-712-04222
...
23
Trail Shield MTD-731-07203
...
24
Hubcap, 11", Grey MTD-731-07875
...
25
TORSION SPRING (RH) MTD-732-05061B
...
26
Torsion Spring - LH MTD-732-05062A
...
27
Pivot Rod MTD-747-05183
...
28
21" Deck MTD-787-02002B-0606
...
29
HINGED MULCH PLUG ASSEMBLY MTD-987-05206
...
30
Screw MTD-710-05073
...
31
Side Discharge Chute MTD-731-07131
...
32
Chute Deflector Bracket MTD-787-01779
...
33
Torsion Spring MTD-732-1014C
...
34
Hinge Pin MTD-747-0710A
...
35
Water Nozzle Adapter MTD-921-04041
...
36
Water Nozzle MTD-731-07487
...
37
Shoulder Screw, 1/4-20 x 0.50 MTD-738-04502
...
38
Screw, tt, 3/8-16 x 1.00 MTD-710-04683C
...
39
Screw, 5/16-14 x .750 MTD-710-04995A
...
40
Spur Gear, 9T MTD-917-04849
...
41
Transmission Cover MTD-731-08175
...
42
Bearing Assembly MTD-631-04501A
...
43
ENGINE BAFFLE ASSEMBLY MTD-631-04512D
...
44
Screw, Hex Washer, .159 x .43 MTD-710-04374
...
45
Screw, 1/4-15 x 1.25 MTD-710-04774
...
46
Screw, 1/4-15 x .750 MTD-710-0895
...
47
Exten. Spring, 2.405 MTD-732-05150A
...
48
Shoulder Screw, 1/4-20 x 0.50 MTD-738-04502
...
49
V-Belt MTD-954-04282
...
49
Genuine Factory Parts TRANSMISSION BELT Retail Packaged Part MTD-490-501-M055
...
50
TRANSMISSION BRACKET (POWDER BLACK) MTD-787-01868B-0637
...
51
REAR CLIP SUPPORT BRACKET MTD-787-01915C
...
52
Transmission Assembly MTD-918-07000
...
53
AXLE ASSEMBLY MTD-611-05029A
...
54
FRONT AXLE ASSEMBLY MTD-611Z05022
...
55
Flange Lock Nut, 3/8-16 MTD-712-04217
...
56
Wheel Dust Cover MTD-731-07731C
...
57
Front Wheel, 8 x2 MTD-634-04665
...
58
Rear Wheel, 11 x 2 MTD-934-04699
...
59
Screw, 1/4-14 x .625 MTD-710-1017
...
60
Handle Console MTD-931-09823A
...
61
DRIVE HANDLE MTD-731-09730B
...
62
Blade Control MTD-747-06307-0637
...
63
Drive Cable MTD-946-05121A
...
64
CABLE-CONTROL ERS 50.00 WLKBND MTD-946-05107B

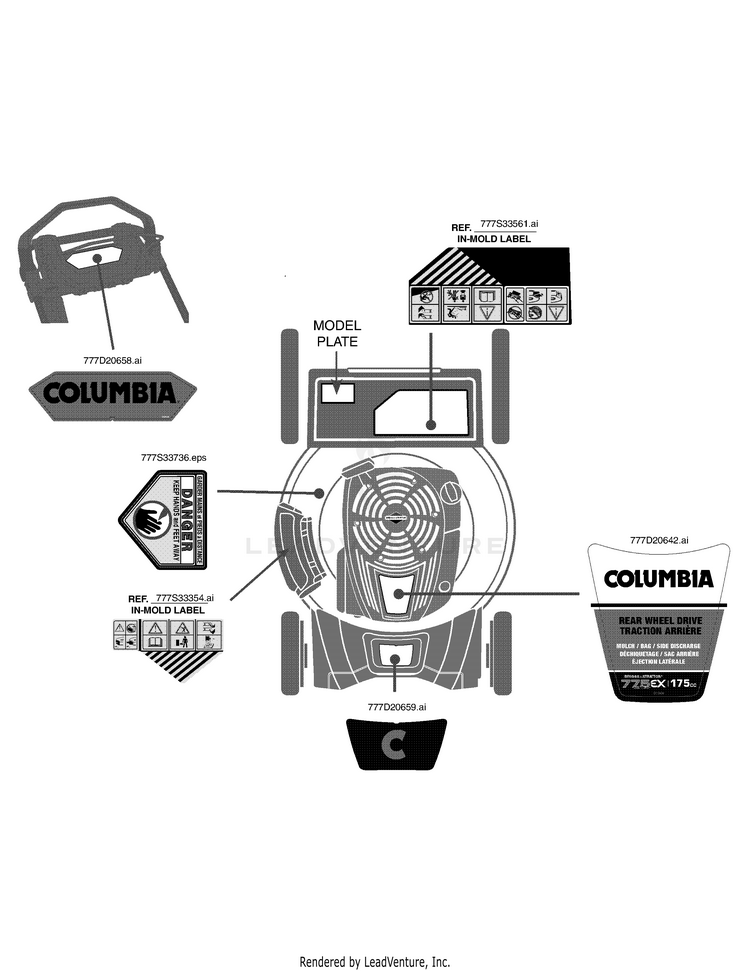

Label Map

...
...
777D20642
LABEL - ENGINE SHROUD RWD COLUMBIA MTD-777D20642
...
777D20658
LABEL - PANEL COLUMBIA MTD-777D20658
...
777D20659
LABEL - COLUMBIA C FRONT COVER MTD-777D20659
...
777S33736
LABEL-DANGER HAND/ MTD-777S33736
...
...
...
...
...
