Columbia 11A-A0A9897 (2015) Push Walk Behind Mower

Model: 11A-A0A9897 (2015)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
Air Filter MTD-BS-593260
...
xx
Blade MTD-942-0741A
...
xx
Cub Cadet 21" MULCH BLADE Retail Packaged Part MTD-490-100-C089
...
xx
Genuine Factory Parts 21" MULCHING BLADE (0741A) Retail Packaged Part MTD-490-100-M084
...
xx
21" BLADE (MULCH) (XTREME) MTD-942-0741-X
...
xx
Blade Adapter MTD-748-04096
...
xx
Blade Bolt MTD-710-1044
...
xx
Control Cable (brake) MTD-946-04661A
...
xx
Discharge Chute MTD-731-07131
...
xx
FUEL CAP MTD-BS-84004416
...
xx
HINGED MULCH PLUG ASSEMBLY MTD-987-05206
...
xx
Plug - Spark RJ19M MTD-759-3336
...
xx
Trailshield MTD-731-07203
...
xx
Wheel - Front MTD-634-04642
...
xx
Wheel - Rear MTD-634-04659
...
xx
Blade Removal Tool (Optional Accessory) MTD-490-850-0005
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional Accessory) MTD-490-850-0018
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional Accessory) MTD-490-850-0018
...
xx
SIPHON PUMP (Optional Accessory) MTD-490-850-0008
...
xx
Side Discharge Blower (Optional Accessory) MTD-490-850-0016
...
xx
UTILITY CARGO CARR (Optional Accessory) MTD-490-850-0015
...
xx
FLOOR MAT (Optional Accessory) MTD-735-04255
...
xx
MOWER KICK STAND (Optional Accessory) MTD-490-850-0012
...
xx
Mower Cover (Optional Accessory) MTD-490-290-0012
...
xx
COATING-GRAPHITE MOWER (Optional Accessory) MTD-490-900-0062
...
xx
STA-BIL 32 OZ (Optional Accessory) MTD-22287
...
xx
FUEL STABILIZER (Optional Accessory) MTD-22208

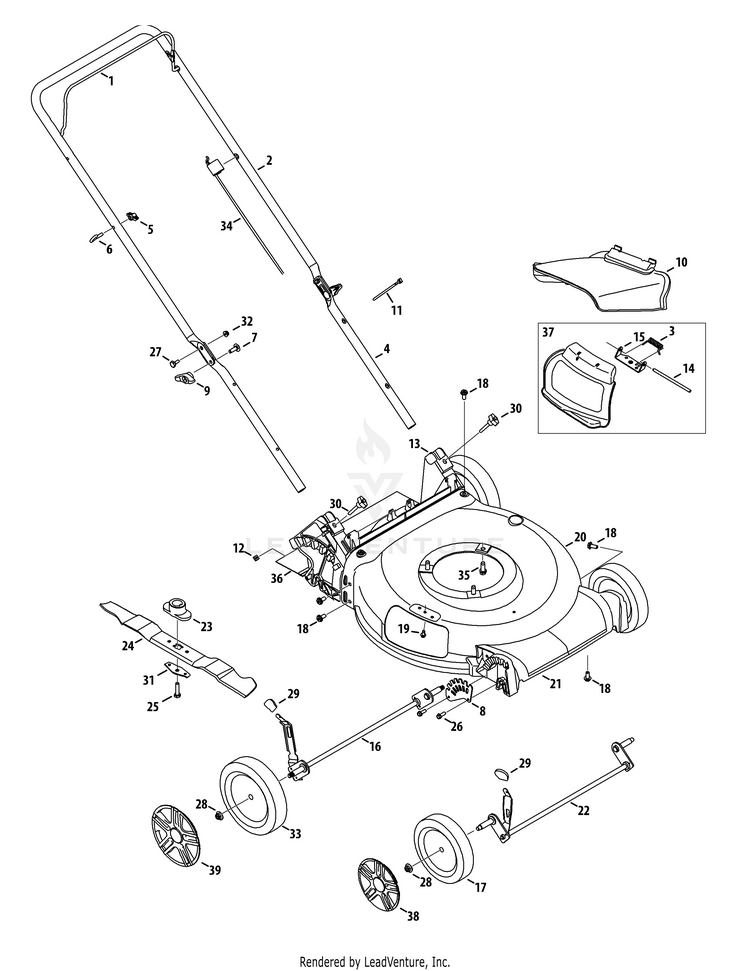

General Assembly

...
...
1
Blade Control MTD-747-05184D
...
2
UPPER HANDLE (POWDER BLACK) MTD-749-05084B-0637
...
3
Torsion Spring MTD-732-1014C
...
4
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
5
Wing Nut MTD-720-0279
...
6
Rope Guide MTD-710-1205
...
7
Carriage Screw ,5/16-18 MTD-710-04998
...
8
Front Height Adjuster Plate MTD-787-01818A-0637
...
9
Wing Knob MTD-720-04122
...
10
Side Chute MTD-731-07486
...
11
Cable Tie MTD-725-0157
...
12
Nut, Sq., 1/4-20 MTD-712-04222
...
13
Rear Baffle MTD-631-04491A
...
14
Hinge Pin MTD-747-0710A
...
15
Chute Deflector Bracket MTD-787-01779
...
16
8" REAR AXLE ASSEMBLY MTD-611-04142A
...
17
Front Wheel, 7 x 2.0, Z, Black MTD-634-04642
...
18
Screw, 5/16-14 x .750 MTD-710-04995A
...
19
Screw, 1/4-20 x .500 MTD-710-05073
...
20
Deck , 21" MTD-787-01869B-0606
...
21
Front Cover MTD-753-08680
...
22
7" FRONT AXLE ASSEMBLY MTD-611-04143B
...
23
Blade Adapter, 25mm x 1.19 MTD-748-04096
...
24
Mulching Blade MTD-942-0741A
...
24
Cub Cadet 21" MULCH BLADE Retail Packaged Part MTD-490-100-C089
...
24
Genuine Factory Parts 21" MULCHING BLADE (0741A) Retail Packaged Part MTD-490-100-M084
...
24
21" BLADE (MULCH) (XTREME) MTD-942-0741-X
...
25
Screw , 3/8-24 x 1.50 MTD-710-1044
...
26
Screw, 1/4-15 x .750 MTD-710-0895
...
27
Sldr. Screw, .375 x .126 x 1/4-20 MTD-738-04419A
...
28
Flange Lock Nut, 3/8-16 MTD-712-04217
...
29
Adjustment Lever Knob MTD-720-04130
...
30
Wing Nut MTD-720-05066A
...
31
BLADE BELL SUPPORT MTD-736-0524B-1
...
32
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
33
Rear Wheel, 8 x 2.0, Z, Black MTD-634-04659
...
34
Control Cable, 37.58" MTD-946-04661A
...
35
SCREW 3/8-16 X 1 MTD-710-04683C
...
36
Trail shield MTD-731-07203
...
37
HINGED MULCH PLUG ASSEMBLY MTD-987-05206
...
38
Hubcap, 7" Grey MTD-731-08202
...
39
Hubcap, 8" Grey MTD-731-09429

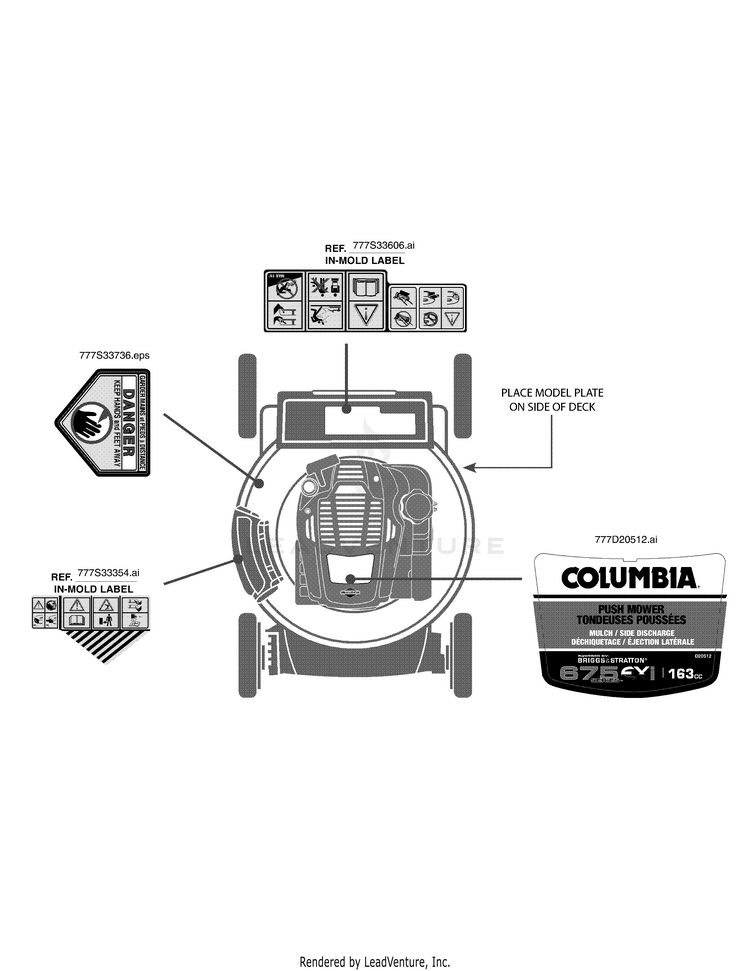

Label Map 11A-A0A9897

...
...
777D20512
LBL:MWR/XKJ/SHRD:675EXI/163:PU MTD-777D20512
...
777S33736
LABEL-DANGER HAND/ MTD-777S33736
...
...
...
...
...
