Columbia 11A-504A597 (2009) Push Walk Behind Mower

Model: 11A-504A597 (2009)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Air Filter MTD-490-200-0011
...
xx
Control Cable MTD-946-0957
...
xx
Blade Adapter MTD-753-06315
...
xx
Blade MTD-742-0742A-0637
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1044
...
xx
Wheels - Front MTD-734-04176A
...
xx
Wheels - Rear MTD-734-04093
...
xx
Trailshield MTD-731-2537
...
xx
CHUTE DEFLECTOR MTD-931-1034B
...
xx
Mulch Plug MTD-631-04045

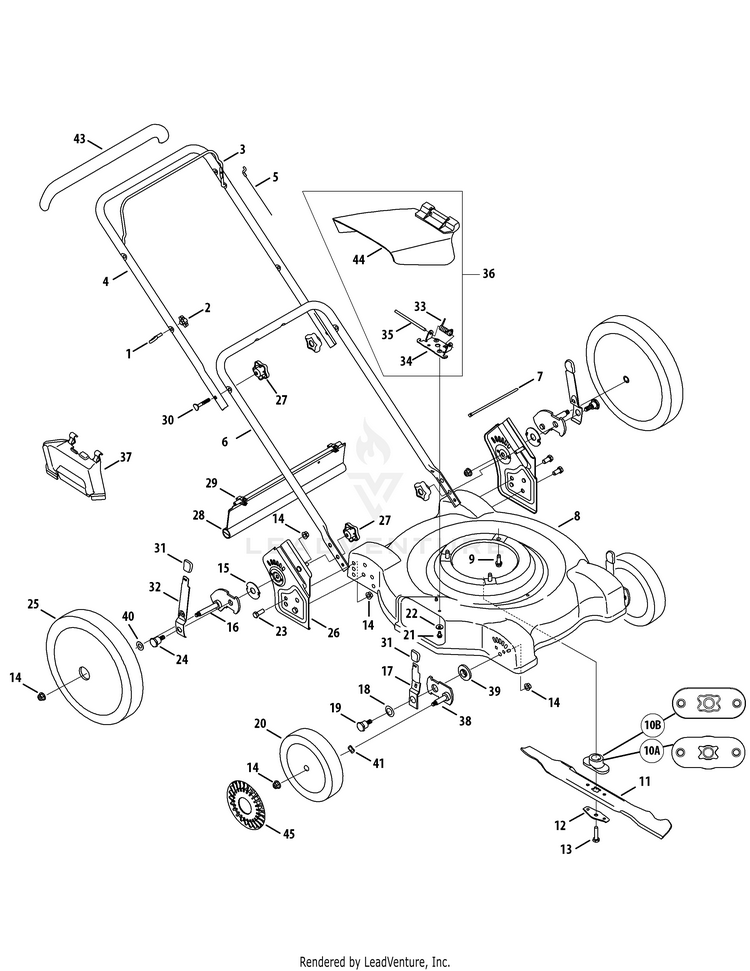

General Assembly

...
...
1
Rope Guide Bolt MTD-710-1205
...
2
Knob - ERS Guide 1/4-20 MTD-720-0279
...
3
Blade Control Handle MTD-747-1161A-0637
...
4
Upper Handle MTD-749-1092A-0637
...
5
Control Cable 37.25 " Lg. (w/B&S) MTD-946-0957
...
6
Lower Handle MTD-749-04037
...
7
Cable Tie MTD-725-0157
...
8
22" DECK ASSEMBLY(MAJESTIC ORANGE) MTD-687-02048A-0606
...
9
Hex Wash HD Tap Scr 3/8-16 x .88 MTD-710-0654A
...
10B
Blade Adapter #6 x 1.19 MTD-748-0376E
...
11
Blade MTD-742-0742A-0637
...
12
BLADE BELL SUPPORT MTD-736-0524B-1
...
13
Hex Screw 3/8-24 x 1.5" Lg. (Gr. 8) MTD-710-1044
...
14
Flanged Lock Nut 3/8-16 MTD-712-04065
...
15
THRUST BEARING MTD-741-0717
...
16
PIVOT ARM ASSEMBLY (RH) MTD-987-02344
...
16
PIVOT ARM ASSEMBLY (LH) MTD-687-02079
...
17
Lever Ass'y MTD-687-02051
...
17
Spring Lever MTD-732-1026
...
18
Cupped Washer .401 ID x .870 OD MTD-736-0741
...
19
Shoulder Screw 3/8-16 MTD-738-1172
...
20
Wheel Ass'y 7 x 2.125 Idle BB Zag MTD-734-04176A
...
21
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
22
SPRING WASHER BELL MTD-736-0270
...
23
Hex Cap Screw 3/8-16 x .75 MTD-710-0216
...
24
Shoulder Screw MTD-738-04267
...
25
Wheel Ass'y 12 x 2.15 Idle Zag MTD-734-04093
...
26
HANDLE BRACKET (RH) MTD-982-3062A
...
26
LH Handle Bracket Assembly MTD-982-3063A
...
27
Knob - Star 5/16-18 MTD-720-04072A
...
28
Trail Shield MTD-731-2537
...
29
HINGE CLIP MTD-17098P
...
30
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
31
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
32
HEIGHT LEVER ASSEMBLY MTD-687-02052
...
32
SPRING LEVER MTD-732-0984B
...
33
Torsion Spring MTD-732-1014C
...
34
PLATE-ADAPTER MTD-17032A
...
35
Hinge Pin MTD-747-0710A
...
36
CHUTE DEFLECTOR MTD-931-1034B
...
37
Mulch Plug MTD-631-04045
...
38
Front Pivot Bar MTD-687-02342
...
39
Height Adjuster Bearing MTD-741-04242
...
40
Spring Wash. .5 x 1.0 MTD-736-0182
...
41
Wave Washer .51" ID MTD-936-0504
...
43
Snap-On Bail Cover (optional) MTD-731-2626
...
44
CHUTE DEFLECTOR MTD-931-1034B
...
45
Hub Cap Grey Radial (optional) MTD-731-0981C

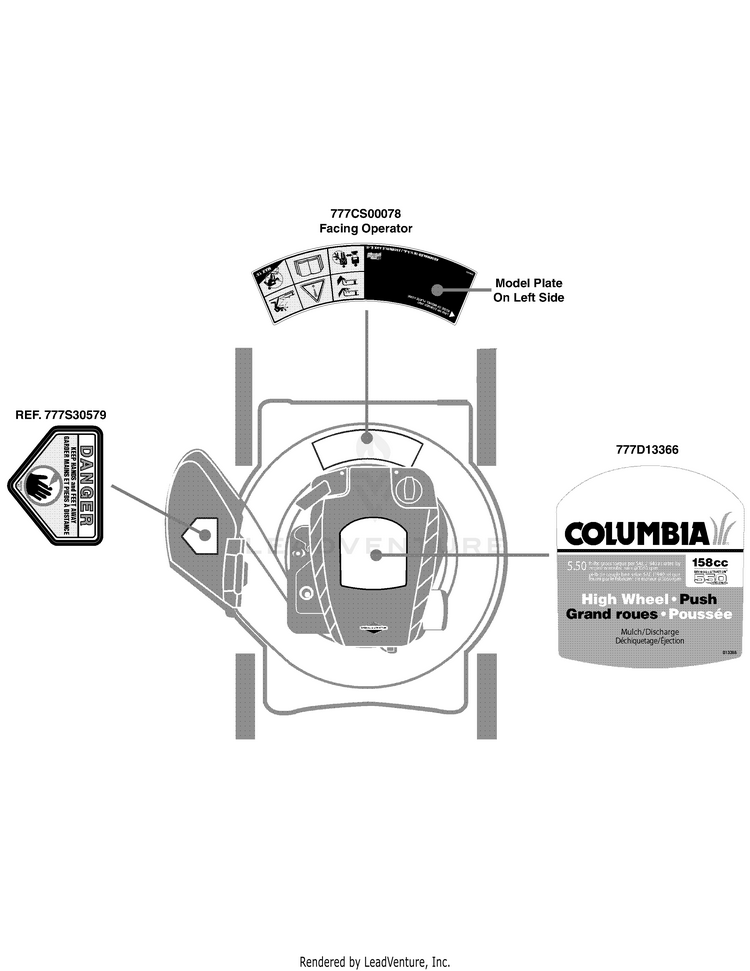

Label Map

...
...
777S30579
LABEL-DECK DANGER MTD-777S30579
...
777CS00078
LABEL-MWR DNGR CRVD PICTORIAL CDN MTD-777CS00078
...
777D13366
LABEL-MWR:Q SHRD:COLUMBIA HW MTD-777D13366
...
...
...
...
...
