Columbia 11530GC 31AH9775897 (2014) 31AH9775897 11530GC (2014) Snow Thrower

Model: 11530GC 31AH9775897 (2014)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

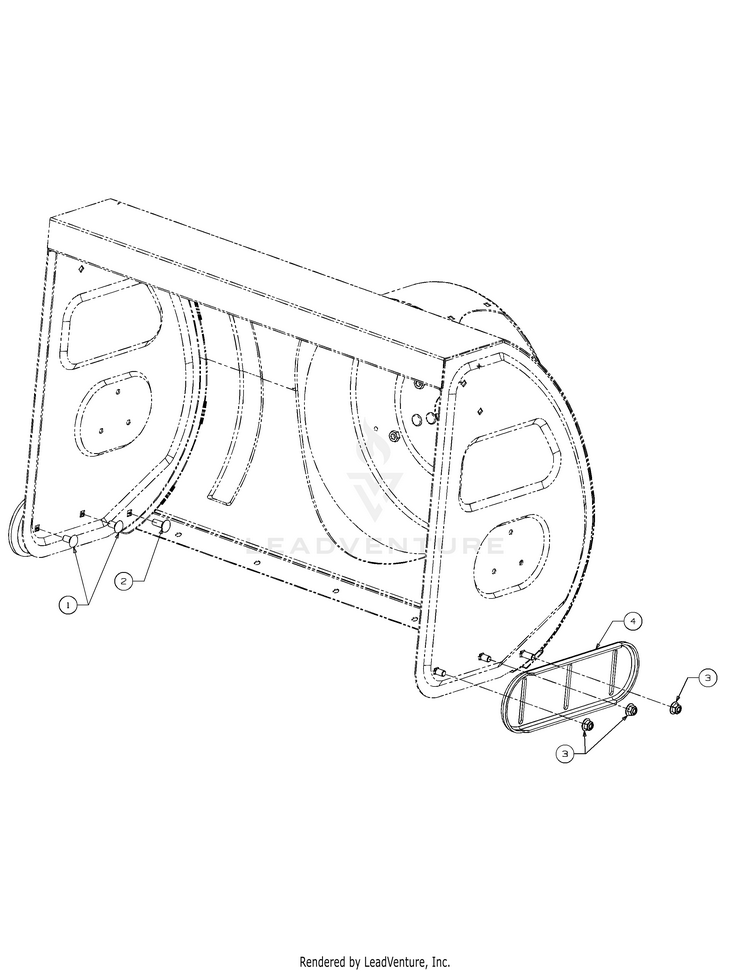

Slide Shoe

...
...
1
Bolt:Crg:3/8-16:.750 MTD-710-0389
...
2
Bolt:Crg:3/8-16:1.00:Gr1 MTD-710-3168
...
3
Nut:Flglk:3/8-16:Grf:Nylon MTD-712-04065
...
4
Slide Shoe MTD-784-5697-0637
...
xx
Skid Shoe, Polymer (Optional Equipment)(not shown) MTD-731-06007
...
...
...
...
...
