Columbia 11530GC 31AH9775897 (2014) 31AH9775897 11530GC (2014) Snow Thrower

Model: 11530GC 31AH9775897 (2014)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

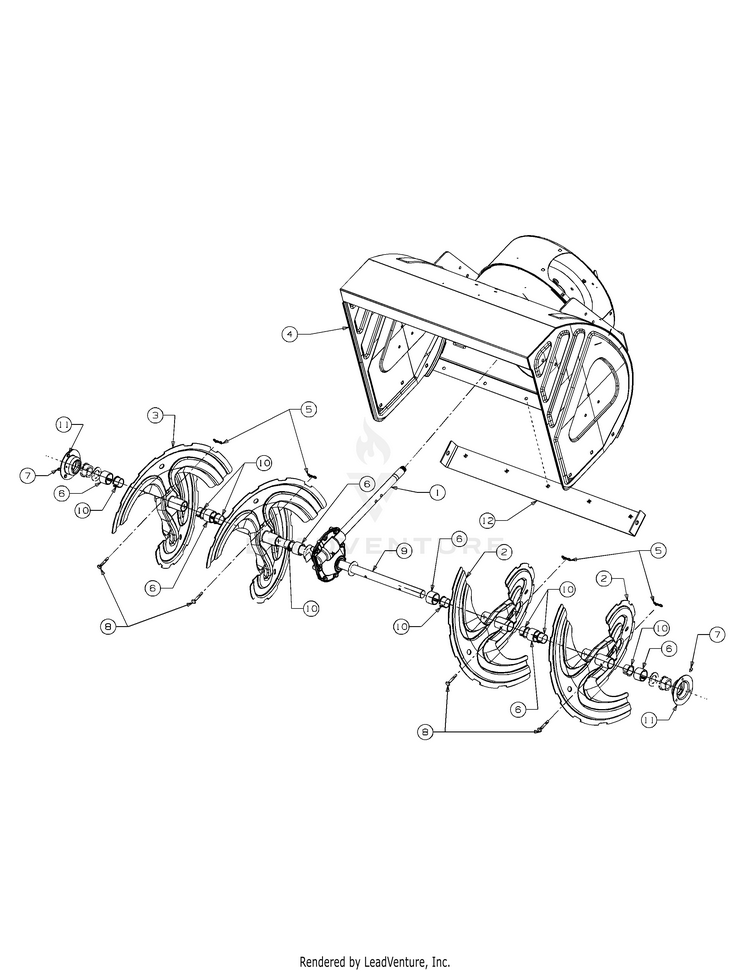

Auger & Shave Plate

...
...
1
Gear Assy-Auger MTD-918-04514
...
2
Spiral Asm:LH 900 MTD-684-04151-0637
...
3
Spiral Asm:RH 900 MTD-684-04152-0637
...
4
30" AUGER HOUSING MTD-684-04333
...
5
Pin-Cotter MTD-714-04040
...
6
Spacer: 1.50 Od X MTD-731-05163
...
7
Grease Fitting MTD-937-3000
...
8
Shear Pin .25X150 MTD-738-04155
...
9
Axle:Sprl: 29.1 MTD-938-04157
...
10
Bushing MTD-741-0494
...
11
BEARING HOUSING MTD-784-0315A-0637
...
12
SHAVE PLATE-30" (POWDER BLACK) MTD-784-5715B-0637
...
...
...
...
...
