Columbia 11530GC 31AH9775897 (2013) Snow Thrower

Model: 11530GC 31AH9775897 (2013)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

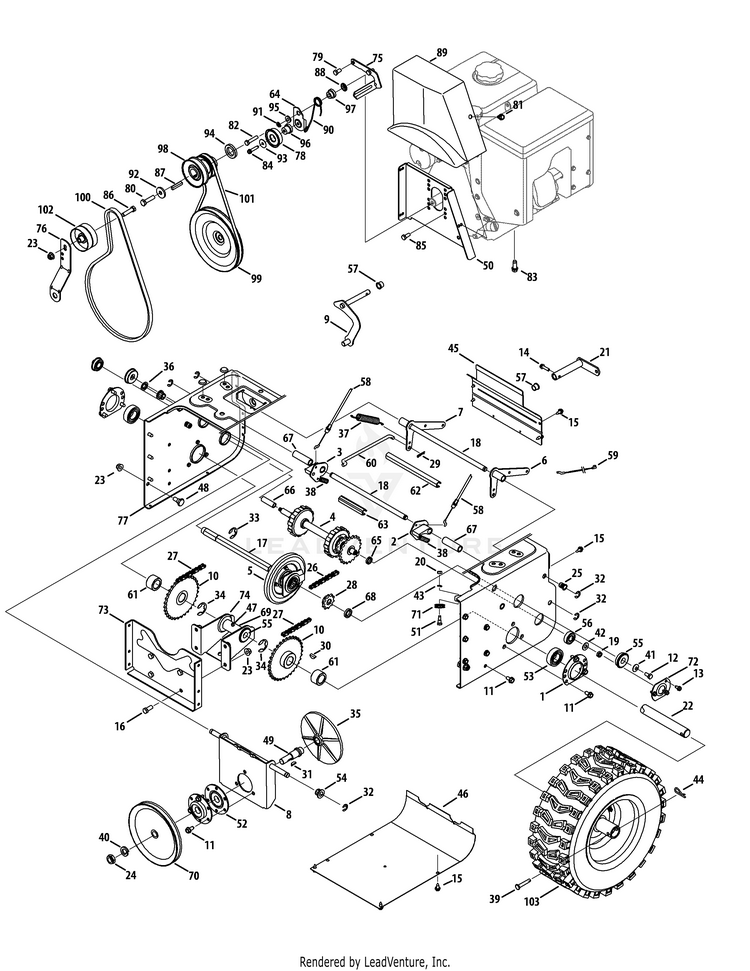

Drive System

...
...
1
Housing, Bearing MTD-05244B
...
2
LEFT DRIVE DOGG ASSEMBLY MTD-918-0279A
...
3
Dogg Assy-Rgt D MTD-918-0280A
...
4
Shaft Assembly, Steering MTD-918-0282E
...
5
Wheel Ass’y Bearing 6.0" OD MTD-918-07239
...
5
BONDED FRICTION WHEEL MTD-718-04034
...
5
Screw, Hex Wash MTD-710-0896
...
6
AUGER ACTUATOR BRACKET (POWDER BLACK) MTD-684-0118B-0637
...
7
ACTUATOR BRACKET (POWDER BLACK) MTD-684-0119B-0637
...
8
BRACKET ASSEMBLY (POWDER BLACK) MTD-684-04212-0637
...
9
Rod Assembly, Shift MTD-984-04103
...
10
Sprocket, 32T MTD-684-04235
...
11
SCREW 5/16-18 x .750 MTD-710-04484
...
12
Screw, Hex Cap Lock, MTD-710-0538
...
13
Screw, Self-tapping, 1/4-20, 0.500 MTD-710-0599
...
14
Shift Arm Assembly MTD-684-0161-0637
...
15
Screw, Hex Wash. MTD-710-1652
...
16
Screw, Hex Cap, 3/8-16 MTD-710-3001
...
17
HEX SHAFT DRIVE MTD-911-04279
...
18
ACTUATOR SHAFT MTD-711-04605
...
19
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
20
Hex Nut 1/4-28 Thd. MTD-712-0138
...
21
Screw, Self-tapping, 1/4-20, 1.00 MTD-710-0788
...
22
Axle, Wheel, 33" & 30" MTD-711-04607A
...
22
WHEEL AXLE .995 x 12.6 MTD-711-04608A
...
23
Flange Lock Nut, 3/8-16 MTD-712-04065
...
24
Nut, Jam Lock, 5/8-18, Gr5, Nylon MTD-712-0413
...
25
INSERT NUT 3/8-16 MTD-712-0717
...
26
Chain, Endless, #41 x 36L MTD-713-0284
...
27
Chain, #420 x 40L MTD-713-0286
...
28
Sprocket, #41 x 10T MTD-913-04015
...
29
Hairpin Clip MTD-714-0104
...
30
#91 Woodruff Key 1/4" X 3/4" Dia. MTD-714-0135
...
31
Key, Hi-Pro, 3/16 x 5/8 MTD-914-0388
...
32
E-Ring MTD-916-0104
...
33
Ring, Retaining MTD-716-0136
...
34
Ring, Retainer MTD-716-04048
...
35
Plate, Drive MTD-917-0302
...
36
Speed Nut, .500 MTD-726-0221
...
37
Spring, Extension MTD-932-0121
...
38
Spring, Extension MTD-932-0209
...
39
Pin, Clevis MTD-711-04615
...
40
Washer, Lock, 5/8 MTD-936-0158
...
41
Wsh, Bell., .34 x .872 x .06 MTD-736-0242
...
42
Wash, .375 x .812 x .060 MTD-936-0864
...
43
Washer, Lock, 1/4 MTD-936-0329
...
44
Inter. Cotter Pin MTD-714-0149B
...
45
Cover, Upper Frame MTD-790-00257
...
46
LOWER FRAME COVER MTD-790-00259
...
47
Fitting, Lube, 3/16 Drive MTD-937-3000
...
48
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
49
Spindle, Drive Plate MTD-738-0279
...
50
BELT COVER BRACKET MTD-790-00254A-0637
...
51
Screw, Hex Shldr., 1/4-28 MTD-738-0924A
...
52
BEARING HOUSING ASSEMBLY MTD-741-0163A
...
53
Bearing, Self Aligning MTD-941-04025
...
54
Bearing, Hex Flange MTD-741-04108
...
55
Bearing, Ball MTD-941-0563
...
56
Bush, Flg, .5625 x 1.375 x .4375 MTD-741-0747
...
57
Bush, Flg, .5 ID x .627 OD MTD-741-0748
...
58
Steering Cable, 34.78" Long MTD-746-0949A
...
59
Cable, Auger Idler MTD-946-0951A
...
60
Rod, Drive Clutch MTD-747-0973
...
61
Spacer, 1.0 ID x 1.50 OD MTD-750-04703
...
62
SPACER MTD-750-04717
...
63
SPACER MTD-750-04718
...
64
Drive Idler Bracket MTD-790-00208D
...
65
Spacer, .566 ID x .87 OD x .190 MTD-750-05342
...
66
Spacer, .566 ID x .87 OD x 1.25 MTD-750-05343
...
67
SPLIT SPACER MTD-750-0903B
...
68
Spacer, .675 x 1.0 x .23 MTD-950-0997
...
69
Spacer, .6725 x 1.125 x 2.48 MTD-750-1302B
...
70
Pulley, Auger MTD-756-0344
...
71
Roller, Cable MTD-756-0625
...
72
Bearing Retaining Bracket MTD-784-0404
...
73
Bracket, Frame Support MTD-784-0406A-0637
...
74
AXLE SUPPORT BRACKET MTD-784-0407-0637
...
75
BELT KEEPER BRACKET MTD-790-00167A-0637
...
76
Bracket, Auger Idler MTD-784-0385D
...
77
FRAME MTD-790-00349A-0606
...
78
Idler Pulley Assembly MTD-684-04169
...
79
Screw, Hex Cap, 5/16-24 MTD-710-0627
...
80
Hex Hd. Screw, 3/8-24 x 1.25 GR8 MTD-710-0191
...
81
Screw, Hx Wash Hd Tapp MTD-710-0607
...
82
Screw, Hex Cap, 5/16-24 x 1.50 MTD-710-0624
...
83
Screw, 3/8-16 x 1.00 MTD-710-0654A
...
84
Screw, 1/4-20 x 1.25 MTD-710-0809
...
85
SHOULDER SCREW MTD-738-04439
...
86
Hex Head Screw, 3/8-16 x 1.75 MTD-710-0347
...
87
Square Key, 1/4 x 1.50 MTD-714-0118
...
88
Nut, Push-on, .25 Dia. MTD-726-04012
...
89
Cover, Belt MTD-931-2531
...
90
TORSION SPRING MTD-732-04308C
...
91
Washer, Lock, 5/16 MTD-936-0119
...
92
Washer, Flat, .406 x 1.25 MTD-736-0247
...
93
Washer, Flat, .265 x 1.0 x .030 MTD-736-3092
...
94
Spacer, 1.155 ID x 1.50 OD x .15 MTD-750-05316
...
95
Shoulder Spcr., .3175 x .500 x.094 MTD-748-04112B
...
96
Shoulder Spacer, .260 x .785 x .538 MTD-750-04571
...
97
Shoulder Spacer, .340 x 1.00 MTD-750-04821
...
98
Double Pulley, 3.25 x 2.75 MTD-756-0241B
...
99
Pulley, Drive MTD-756-0344
...
100
V-Belt, 4L x 44.60 Lg. MTD-954-04194A
...
101
V Belt, 3/8 x 36.68 MTD-954-04202
...
102
Pulley, Flat Idler, 2.75 OD MTD-756-04224
...
103
WHEEL ASSEMBLY (16 x 6.5 x 8) (LH) (OYSTER-CARLISLE) MTD-634-0225A-0911
...
103
Wheel Ass’y. - RH, 33" & 30" MTD-634-0226A-0911
...
103
WHEEL ASSEMBLY (4.8 x 8 x 16) (LH)(OYSTER-CARLISLE) MTD-634-04179A-0911
...
103
WHEEL ASSEMBLY (4.8 x 8 x 16) (RH)(OYSTER-CARLISLE) MTD-634-04180A-0911
...
103
Tire, 33" & 30" (Not shown) MTD-734-2031
...
103
Tire, 28" (Not shown) MTD-734-2038-0901
...
103
Valve (Not shown) MTD-934-0255
...
103
BEARING (Not shown) MTD-741-0246A
...
...
...
...
...
