Columbia 11530GC 31AH9775897 (2013) Snow Thrower

Model: 11530GC 31AH9775897 (2013)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

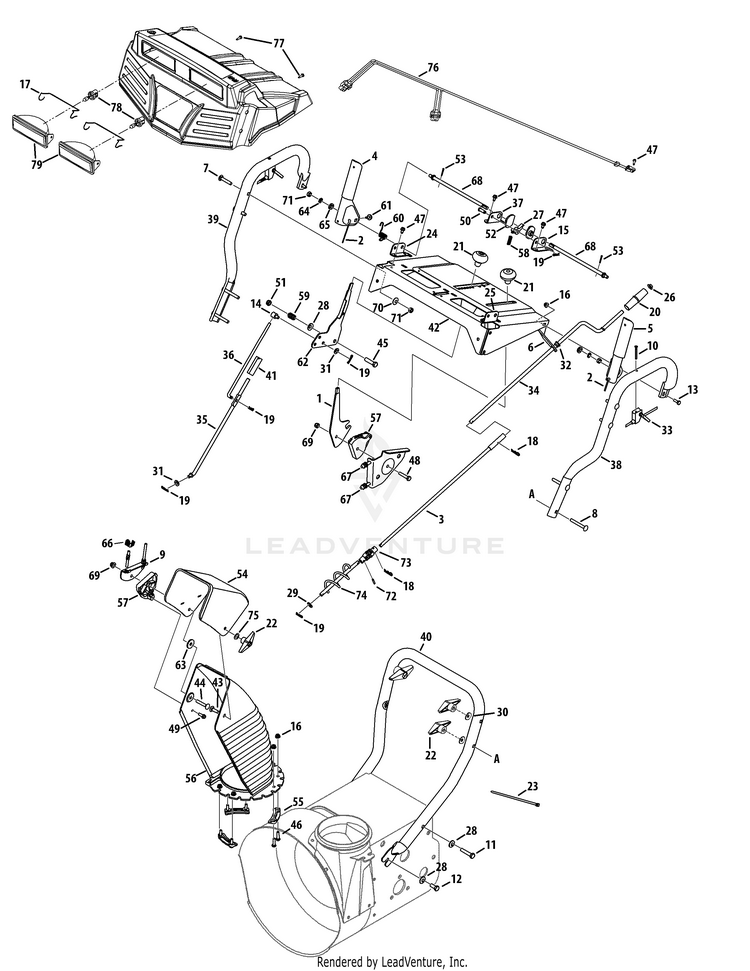

Handles, Panel & Discharge Chute

...
...
1
Chute Tilt Handle MTD-784-5604A-0637
...
2
Cable Ass’y (Auger/Drive) MTD-646-0012
...
3
CHUTE CRANK ROD (POWDER BLACK) MTD-684-04309A-0637
...
4
CLUTCH HANDLE(RH) MTD-705-5218
...
5
CLUTCH HANDLE(LH) MTD-705-5219
...
6
Upper Chute Crank Support MTD-705-5266-0637
...
7
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
8
Carriage Bolt 5/16-18 X 2.50 MTD-710-0572
...
9
Cable Bracket Chute Tilt MTD-784-5594-0637
...
10
Screw, #10-24 x 1.75 MTD-710-1625
...
11
SCREW 3/8-16 x 2.00 GR5 MTD-710-04682
...
12
Hex TT Screw 3/8-16 x .75 MTD-710-3118
...
13
Hex Cap Bolt 1/4-20 x .75" Lg. MTD-710-3015
...
14
Adjustment Ferrule MTD-911-0677
...
15
HANDLE BRACKET (LH) MTD-784-5679-0637
...
16
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
17
Retainer MTD-747-1136
...
18
Hairpin Cotter MTD-714-0101
...
19
Hairpin Clip MTD-714-0104
...
20
Knob 1.0 x 3.2 MTD-720-0201A
...
21
Shift Knob MTD-720-04039
...
22
Knob, Wing, 5/16-18 MTD-720-0284
...
23
Cable Tie MTD-725-0157
...
24
RH Handle Support Brkt. 3/8" MTD-784-5682-0637
...
25
LH Handle Support Brkt. 3/8" MTD-784-5681
...
26
Push Cap 3/8" Rod MTD-726-0100
...
27
Cam Lock Pawl MTD-948-0363
...
28
Cupped Washer .375 ID x .870 OD x .063 MTD-736-0105
...
29
Flat Washer .375 ID x .738 OD MTD-736-0185
...
30
Cupped Washer .345 ID x .88 OD x .06 MTD-736-0242
...
31
FLAT WASHER MTD-736-0275
...
32
Plastic Bushing .380 ID MTD-941-0475
...
33
Steering Trigger MTD-746-0950A
...
34
Upper Chute Crank Assembly MTD-747-0624-0637
...
35
Lower Shift Rod MTD-747-0983A
...
36
Upper Shift Rod MTD-747-0997
...
37
RH Handle Support Brkt. 5/8" MTD-784-5680-0637
...
38
UPPER HANDLE (LH) (POWDER BLACK) MTD-749-0989A-0637
...
39
Upper Handle RH MTD-749-0990A-0637
...
40
LOWER HANDLE (POWDER BLACK) MTD-749-0991-0637
...
41
Connector - Shift Rod MTD-950-0963
...
42
Panel, Handle MTD-684-0102A
...
43
Carriage Bolt 5/16-18 x 1.00" Lg MTD-710-0276
...
44
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
45
Hex Scr 3/8-24 x 1.50 MTD-710-0459A
...
46
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
47
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
48
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
49
Hex Tapp Scr 1/4 x .75" Lg. MTD-710-0895
...
50
Clevis Pin .31 Dia. x 1.0" Lg. MTD-711-0653
...
51
Hex Nut 3/8-16 Gr. 5 Nylon MTD-912-3020
...
52
Cam Handle Lock MTD-748-0362
...
53
Cotter Pin 3/32 x .75 MTD-914-0507
...
54
Upper Chute MTD-731-0846C
...
55
Chute Flange Keeper MTD-731-0851A
...
56
Lower Chute MTD-731-0903E
...
57
Cable Guide MTD-731-1313C
...
58
Compression Spring .62 OD x 6.12" Lg. MTD-732-0145
...
59
Compression Spring .38 ID x .88 Lg MTD-732-0193
...
60
Torsion Spring MTD-732-0746
...
61
Bumper, Rubber MTD-735-0199A
...
62
Shift Lever MTD-784-5619B-0637
...
63
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
64
L-Wash 5/16 ID MTD-936-0119
...
65
Flat Washer (special) .350 sq. x .72 x .134 MTD-736-0509
...
66
CABLE CLIP MTD-731-07868
...
67
Chute Control Cable w/clip MTD-946-0903
...
68
Cam Rod MTD-747-0877
...
69
Hex L-Flanged Nut 5/16-18 Gr. F Nylon MTD-712-04063
...
70
Fl-Wash. .344" I.D. MTD-736-0159
...
71
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
72
Spiral Pin .156 Diam x .80" Lg. MTD-715-04095
...
73
Joint Block Ass’y MTD-684-04350
...
74
Chute Crank Assembly MTD-684-04308A
...
75
Fl-Wash. .344" I.D. MTD-736-0159
...
76
HARNESS MTD-725-05151
...
77
Hex Tapp Wash Hd. Scr. #10 x 5/8 MTD-710-04669
...
78
Bulb #890, 12 V, 27 Watt MTD-925-1658
...
79
Headlight Housing MTD-925-1672
...
80
HANDLE PANEL STYLE 7 MTD-731-04069
...
...
...
...
...
