Columbia 10528PC 31AH55K4897 (2016) Snow Thrower

Model: 10528PC 31AH55K4897 (2016)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

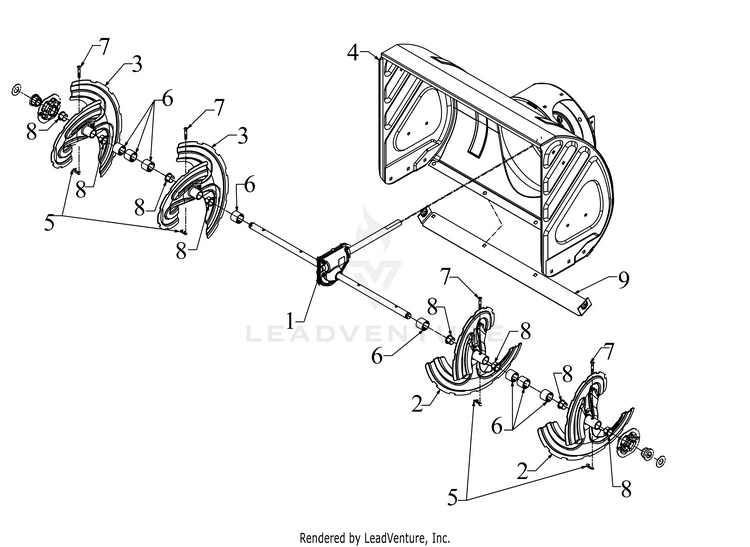

Auger Housing

...
...
1
28" GEARBOX ASSEMBLY (See Separate Breakdown) MTD-918-04173B
...
2
AUGER ASSEMBLY (LH) MTD-684-04107A-0637
...
3
AUGER ASSEMBLY (RH) MTD-684-04108A-0637
...
4
28" AUGER HOUSING (MAJESTIC ORANGE) MTD-684-05209A-0606
...
5
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
6
SPACER 1.25OD x .75ID X1.00 LG MTD-731-04870
...
7
SHEAR PIN .25 x 1.50 GR2 MTD-738-04124A
...
8
FLANGE BUSHING MTD-741-0493C
...
9
Shave Plate: Auger 28" MTD-790-00118-0637
...
...
...
...
...
