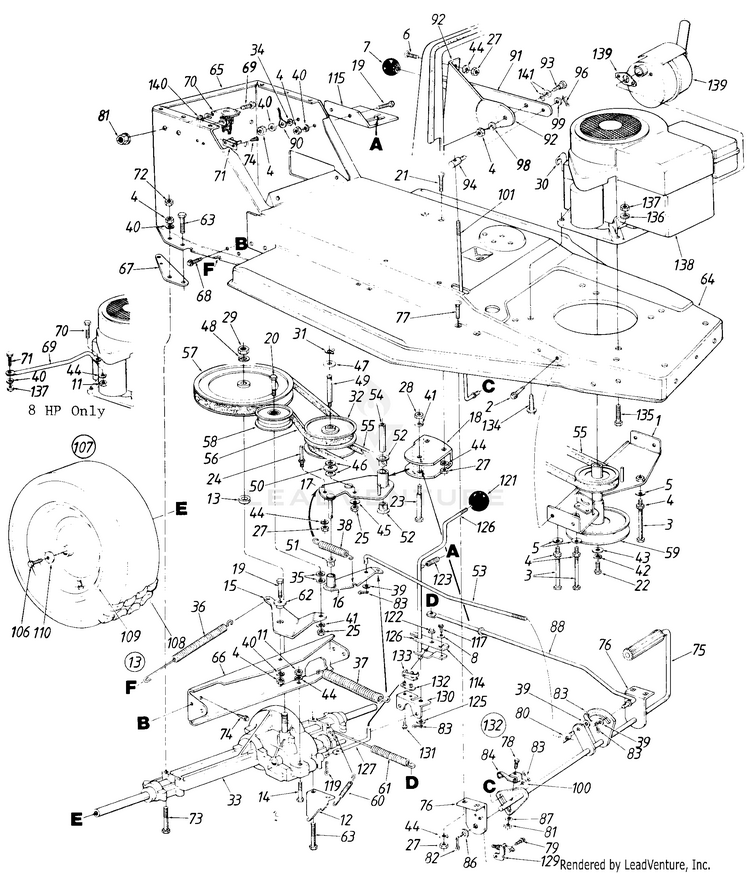

Coast to Coast Mdl 138-342-054/481-2145 Lawn Tractor

Model: Coast To Coast Mdl 138-342-054/481-2145

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
GUARD-ENGI MTD-16670
...
2
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
3
Hex Bolt 5/16-18 x 51/4" Lg. MTD-710-0833
...
4
HEX NUT 5/16-18 MTD-712-3010
...
5
Bell-Wash. .345" I.D. x .88 MTD-736-0242
...
6
Truss-Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
7
Knob MTD-920-0232
...
8
SPRING WASHER BELL MTD-736-0270
...
11
Hex Nut 1/4-28 Thd. MTD-712-0138
...
12
Spring Retainer Brkt. MTD-17128A-0637
...
13
SPACER MTD-750-0721
...
14
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
15
IDLER BRACKET MTD-15891C-0637
...
16
VARIABL E SPEED TORQUE BRACKET. ASS'Y. MTD-16352
...
17
VARIABLE SPEED BRKT. ASS'Y. MTD-16676
...
18
BRACKET-PI MTD-16679
...
19
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
20
Hex Bolt 3/8-24 x 13/4" Lg. Gr. 5 MTD-710-0539
...
21
Carr. Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
22
Hex Bolt 7/16-20 x 1.5" Lg. MTD-710-0757
...
23
Screws 3/8-16X2.5 MTD-710-0859
...
24
Belt Keeper, .25 DIA X 3.0 MTD-911-1000
...
25
Hex Nut 3/8-24 Thd.* MTD-712-0241
...
27
HEX NUT 1/4-20 MTD-912-0287
...
28
Hex Nut 3/8-16 Thd. MTD-712-0798
...
29
NUT MTD-712-3029
...
30
CLAMP MTD-726-0175
...
31
Snap Ring .56" Dia. MTD-916-0114
...
32
Variable Speed Pulley Ass'y. 5" O.D. MTD-917-0800A
...
33
KIT-TRANSAXLE MTD-717-0775
...
34
Ext. L-Wash. 5/16" I.D. MTD-736-0607
...
35
UNKNOWN MTD-NA
...
36
EXTENSION SPRING MTD-932-0384
...
37
Ext. Spring .94" O.D. x 6.7 MTD-732-0459C
...
38
EXTENSION SPRING MTD-732-0568
...
39
Fl-Wash. MTD-936-0117
...
40
Lock Wash. 5/16" I.D. MTD-936-0119
...
41
L-Wash. 3/8" I.D. MTD-736-0169
...
42
L-Wash. 7/16" I.D. MTD-736-0171
...
43
Fl-Wash. .450" I.D. x 1.25" MTD-736-0322
...
44
L-Wash. 1/4" I.D. MTD-936-0329
...
45
Bell-Wash. .39" I.D. x 1.13" MTD-736-0331
...
46
Fl-Wash. .56" I.D. x 1.0" O.D. MTD-736-0355
...
47
Washer "Teflon" .565 I.D. MTD-736-0414
...
48
L-Wash. 1/2" I.D. MTD-736-0921
...
49
Shaft 56" Dia. x 3.875" Lg. MTD-938-0569
...
50
THRUST BEARING MTD-941-0405
...
51
FLANGE BEARING MTD-741-0419
...
52
NYLINER BEARING MTD-741-0495
...
53
LINK-SPEED CONTROL MTD-747-0688
...
54
SPACER MTD-750-0703
...
55
Variable Speed Belt MTD-954-0280A
...
56
Variable Speed Belt MTD-954-0281
...
57
PULLEY MTD-756-0374
...
58
Fl-ldler Pulley 3.25" x 1.0" MTD-756-0643A
...
59
ENGINE PULLEY MTD-756-0508
...
60
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
61
Ext. Spring .59n O.D. x 7 08" MTD-932-0413
...
62
Shld. Spacer. 500" Dia. MTD-748-0234
...
63
Hex Bolt 5/16-18 x 2.75" Lg. MTD-710-0176
...
64
FRAME-FRONT MTD-16714
...
65
FRAME-RR MTD-16715
...
66
BRACKET-TRANSMISSION MTD-16654A-0637
...
67
BRACKET-TRANSMISSION MTD-16659-0637
...
68
Hex Wash. AB-Tap Scr. 5/16 x.75" Lg. MTD-710-0726
...
69
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
70
Solenoid MTD-925-0771
...
71
CIRCUIT BREAKER MTD-753-0685
...
72
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
73
Hex Bolt 5/16-18 x 3.0" Lg. MTD-710-0189
...
74
Truss Mach. B-Tap Scr. #10 x.50" Lg. MTD-710-0351
...
75
PEDAL ASSEMBLY MTD-16689
...
76
BRACKET-MTG MTD-16691
...
77
Carr. Bolt 1/4-20 x .62" Lg. MTD-710-0134
...
78
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
79
Hex TT-Tap Scr. 1/4-20 x .5" MTD-710-0599
...
80
Ferrule MTD-911-0198
...
81
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
82
Cot-Pin 3/32" Dia. x 1.0" Lg. MTD-714-0111
...
83
Cot-Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
84
SWITCH-ACTUATOR MTD-732-0582
...
86
Fl-Wash. MTD-936-0256
...
87
UNKNOWN MTD-NA
...
88
BRAKE ROD MTD-747-0686
...
90
WIRE MTD-725-0976
...
91
LEVER-SPEED SELECTOR MTD-17457B
...
92
5 SPEED SELECTOR BRKT. MTD-16693
...
xx
BRACKET-7-SPEED MTD-16694
...
93
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
94
Engagement Ferru MTD-911-0677
...
xx
HEX NUT 5/16-18 MTD-712-3010
...
96
Intern. Cot-Pin 5/16" Dia. MTD-714-0104
...
98
Lock Wash. 5/16" I.D. MTD-936-0119
...
99
Fl-Wash. .344" I.D. x .62" MTD-736-0264
...
100
Fl-Wash. .25" I.D. x .62" O.D. MTD-736-0463
...
101
SPEED CONTROL ROD MTD-747-0675
...
106
Hex L-Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
107
WHEEL ASSEMBLY W/TIRE- MTD-734-1424
...
108
TIRE-16 x 7.50 MTD-734-1423
...
109
WHEEL RIM MTD-734-1450
...
110
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
114
SHIFT LEVER ADJUSTING LINK MTD-17178
...
115
BRACKET MTD-16482
...
117
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
119
Inter. Cotter Pin MTD-714-0149B
...
121
Shfter Knob MTD-931-0009A
...
122
PUSH NUT MTD-726-0106
...
123
Compression Spring 1.5" Lg. MTD-732-0499
...
125
Fl-Wash. .469" I.D. x .88" MTD-736-0226
...
126
SHIFT ROD ASSEMBLY MTD-747-0694
...
127
SHIFT ROD MTD-747-0685
...
129
SAFETY SWITCH MTD-725-0577
...
130
Shift Lever Support MTD-17;79
...
131
Hex Wash. Hd. #8 x .50" Lg. MTD-710-0227
...
132
Insulatop Nut Plate MTD-926-0320
...
133
KIT-SAFETY SWITCH MTD-753-0580
...
134
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A
...
135
Hex Bolt 5/16-24 x 1-1/4" Lg. Grade 5 MTD-710-0672
...
136
Lock Wash. 5/16" I.D. MTD-936-0119
...
137
Hex Nut 5/16-24 Thd. MTD-912-3057
...
138
Engine MTD-NA
...
139
Muffler MTD-NA
...
xx
Muffler for 8 HP MTD-751-0157
...
xx
Muffler for 10 HP MTD-751-0157
...
xx
10 & 11 HP B&S MTD-751-0450
...
xx
MUFFLER MTD-951-0443A
...
140
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
141
Spr. Wash. 7/16" I.D. MTD-936-0141
...
xx
Hex Bolt 5/16-24 x . 75" Lg. MTD-710-0157
...
xx
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
xx
BRACE-SUPPORT MTD-749-0727
...
...
...
...
...
