Coast to Coast Mdl 131-650F054/481-2251 Lawn Tractor

Model: Coast To Coast Mdl 131-650F054/481-2251

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

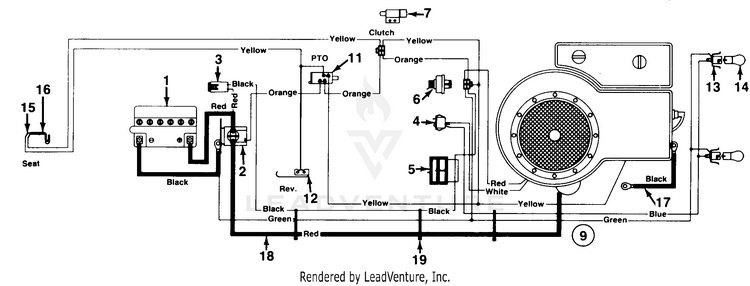

Electrical, Single Cylinder

...
...
1
BATTERY MTD-753-0607
...
2
Solenoid MTD-925-1426A
...
3
Fuse 7.5 Amp. MTD-725-1625
...
4
Light Switch MTD-925-0634
...
5
Ammeter MTD-925-0925
...
6
Ignition Switch MTD-925-0267B
...
7
SWITCH (Clutch) MTD-925-04039
...
9
WIRE HARNESS (B&S) MTD-629-0025
...
xx
WIRE HARNESS (Tec.) MTD-629-0048
...
11
Safety Switch (Deck) MTD-725-0803B
...
12
SAFETY SWITCH KIT (Reverse) MTD-725-0759
...
13
HEADLAMP SOCKET MTD-925-1058A
...
14
Miniature Lamp 12V Socket Type MTD-925-0963
...
15
Outer Seat Spring Switch (Seat) MTD-925-1303
...
16
Safety Switch (Seat) MTD-725-1439
...
17
WIRE MTD-725-0980
...
18
WIRE ASSEMBLY (RED) (#6X32.5) MTD-629-0740
...
19
Cable Tie MTD-726-0197
...
...
...
...
...
