Coast to Coast Mdl 131-650F054/481-2251 Lawn Tractor

Model: Coast To Coast Mdl 131-650F054/481-2251

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

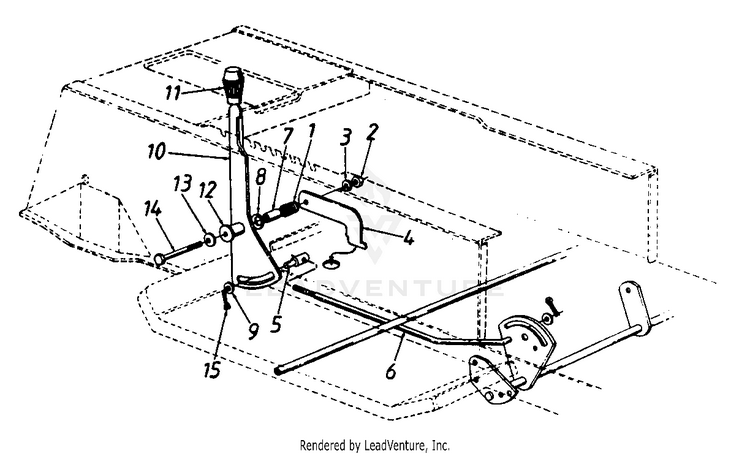

product name

Parts

...
...
1
SPRING .50IDX 1.00 MTD-932-0645
...
2
HEX NUT 5/16-18 MTD-712-3010
...
3
Lock Wash. 5/16" I.D. MTD-936-0119
...
4
SUPPORT-SHIFT LEVE MTD-17956
...
5
Ferrule MTD-911-0198
...
6
SPEED CONTROL ROD MTD-747-0787
...
7
SPACER-1.015 1D MTD-750-0661
...
8
Bell-Wash. .505" I.D. x 1" O.D. MTD-736-0253
...
9
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
10
LEVER-SPEED SELECT MTD-17888A
...
11
Knob MTD-920-0232
...
12
SPACER MTD-750-0702
...
13
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
14
Hex Bolt 5/16-18 x 3.25" Lg. MTD-710-3056
...
15
Cotter Pin 3/32" Dia. x 1 " Lg. MTD-714-0111
...
...
...
...
...
