Coast to Coast Mdl 131-650F054/481-2251 Lawn Tractor

Model: Coast To Coast Mdl 131-650F054/481-2251

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

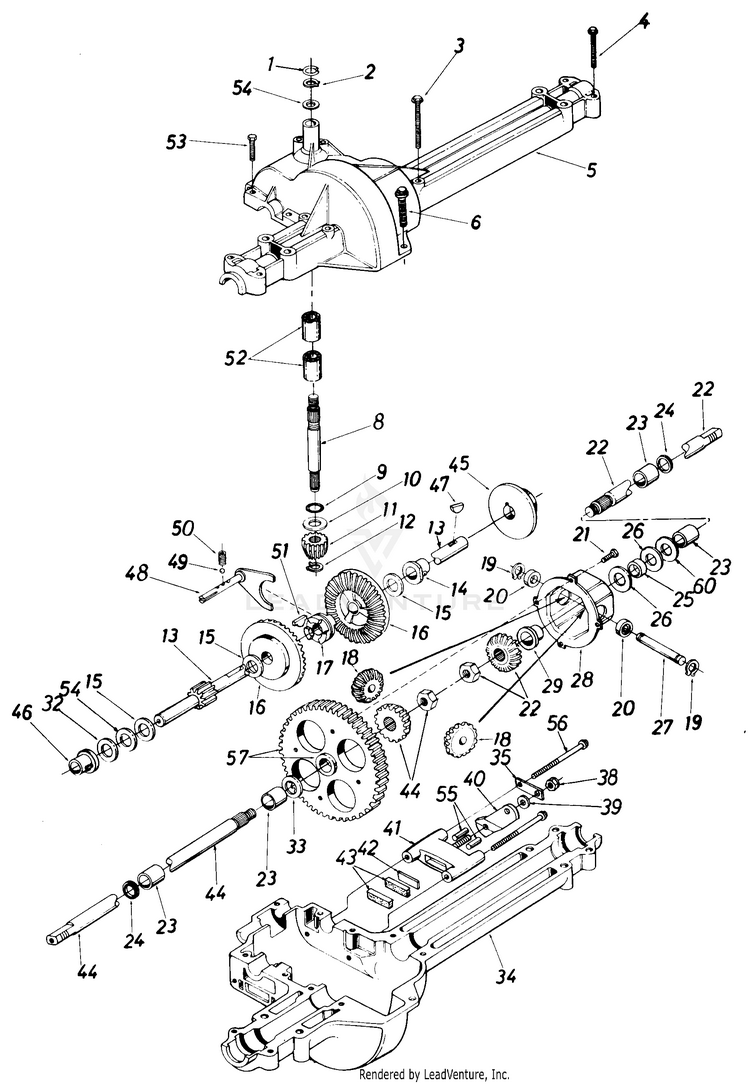

Single Speed Transaxle Right Hand

...
...
1
Wire Ring MTD-732-0614
...
2
Retaining-Ring MTD-716-0108
...
3
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75 Lg. MTD-710-1026
...
4
Hex Tap Scr. 1/4-20 x 1.25" Lg. MTD-710-0809
...
5
UPPER HOUSING MTD-717-0764A
...
6
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
8
INPUT SHAFT MTD-711-0861
...
9
SQUARE SEAL 5/8ID MTD-721-0178
...
10
THRUST WASHER MTD-936-0335
...
11
INPUT PINION 14T MTD-917-0633
...
12
Retainer Ring MTD-916-0171
...
13
DRIVE SHAFT (LH) MTD-717-0768
...
14
Flange Brg. 5/8" I.D. x 3/4" Lg. MTD-941-0336
...
15
THRUST WASHER MTD-936-0335
...
16
BEVEL GEAR 42 T MTD-717-0757
...
17
CLUTCH COLLAR MTD-917-0667
...
18
MITER GEAR MTD-717-1020
...
19
Snap Ring MTD-916-0184
...
20
Thrust Bearing MTD-941-0589
...
21
Pan Head Scr. 1/4-20 x .50" Lg. w/Patch MTD-710-0862A
...
22
AXLE ASSEMBLY (RH) MTD-717-0539
...
23
SLEEVE BEARING .75X1.00X1.00 MTD-741-05060
...
24
Oil Seal 3/4" I.D. MTD-721-0179
...
25
SPACER-AXLE MTD-750-0827
...
26
Fl-Wash. 760" I.D. x 1.5" O.D. MTD-736-0445
...
27
Cross Shaft MTD-711-0918
...
28
DIFF HOUSING ASSEMBLY W/BEARING MTD-918-04089
...
29
Part of Ref. 28 MTD-NA
...
32
Washer MTD-NA
...
xx
THRUST WASHER MTD-736-0495
...
xx
FLAT WASHER MTD-936-0336
...
xx
Thrust Wash. 5/8" I.D. x 1" O.D. x .035" Thk. MTD-736-0494
...
xx
Fl-Wash. 5/8" I.D. x 1" O.D. x .040" Thk. MTD-736-0337
...
33
Fl-Wash. 760" I.D. x 1.5" O.D. MTD-736-0445
...
34
TRANS HOUS MTD-719-0303
...
35
Anti-Rotation Brkt. MTD-718-0150
...
38
NUT MTD-912-0273
...
39
Fl-Wash. .844" I.D. x .875" O.D. MTD-736-0371
...
40
Actuating Arm MTD-717-0700
...
41
BRAKE YOKE MTD-961-0198B
...
42
PUCK PLATE MTD-917-0682
...
43
BRAKE PUCK MTD-917-0678
...
44
AXLE ASSEMBLY (LH) MTD-717-0538
...
45
BRAKE DISC MTD-717-0677
...
46
Flange Bearing 5/8" I.D. x 15/16" Lg. MTD-941-0337
...
47
KEY 3/16 x 5/8 H MTD-914-0161
...
48
SHIFT FORK ASSEMBLY MTD-917-0754
...
49
DETENT BALL .250 MTD-741-0862
...
50
DETENT SHAFT SPRING MTD-932-05125
...
51
KEY-HI PRO MTD-914-0169
...
52
NEEDLE BEARING MTD-941-0335
...
53
Screw, Hex MTD-710-0788
...
54
FLAT WASHER MTD-936-0349
...
55
Actuating Pin 5/16" Dia. MTD-741-0343
...
56
Hex Wash Hd. Self-Tap Scr. 1/4-20 Thd. MTD-710-1206
...
57
DIFFERENTIAL GEAR MTD-717-0767
...
xx
FLAT WASHER MTD-936-0349
...
xx
THRUST WASHER MTD-736-0495
...
60
Washer MTD-NA
...
xx
THRUST WASHER MTD-936-0492
...
xx
THRUST WASHER MTD-936-0493
...
xx
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
xx
Fl-Wash. .76" I.D. x 1.5" O.D. x .060" Thk. MTD-736-0445
...
xx
Grease, Benalene 8 oz tube (10 oz.) MTD-737-0300A
...
...
...
...
...
