Coast to Coast Mdl 130-312E054/481-1972 Lawn Tractor

Model: Coast To Coast Mdl 130-312E054/481-1972

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

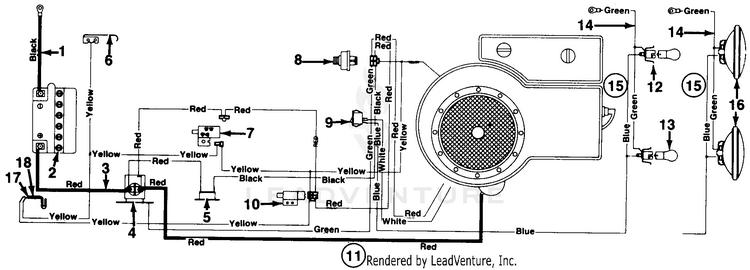

Electrical

...
...
1
WIRE MTD-725-0976A
...
2
BATTERY MTD-753-0607
...
3
WIRE W/BOOT MTD-725-0926
...
4
Solenoid MTD-925-1426A
...
5
CIRCUIT BREAKER MTD-753-0685
...
6
KIT-SAFETY SWITCH (Reverse) MTD-753-0580
...
7
SAFETY SWITCH (Deck) MTD-925-0819A
...
8
Ignition Switch MTD-925-0267B
...
9
Light Switch MTD-925-0634
...
10
SWITCH (Clutch) MTD-925-04039
...
11
WIRE HARNESS (B&S) MTD-725-1475
...
xx
WIRE HARNESS W-TEC ENG (Tec.) MTD-725-1476
...
12
HEADLAMP SOCKET (Sq. Headlights) MTD-925-1058A
...
13
Miniature Lamp 12V Socket Type (Sq. Headlights) MTD-925-0963
...
14
WIRE MTD-725-0916A
...
15
HARNESS-HEADLIGHT MTD-725-1477
...
16
Head Light (Round) MTD-925-0222
...
17
Outer Seat Spring Switch (Seat) MTD-925-1303
...
18
Safety Switch (Seat) MTD-725-1439
...
...
...
...
...
