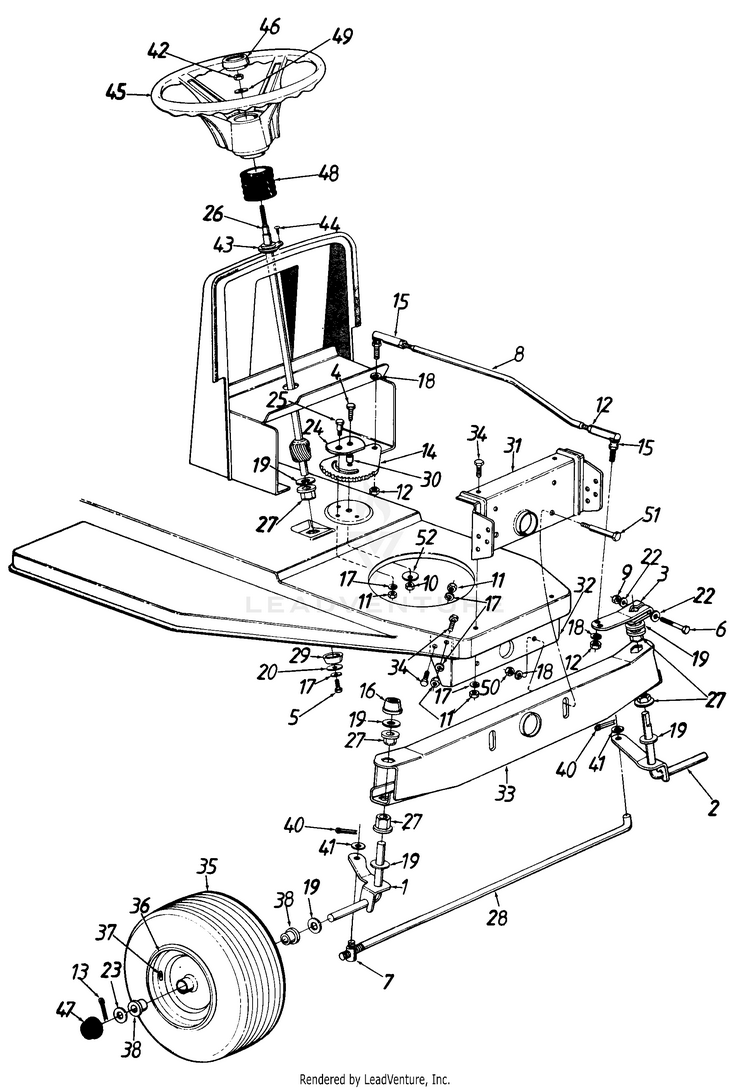

Coast to Coast Mdl 130-312E054/481-1972 Lawn Tractor

Model: Coast To Coast Mdl 130-312E054/481-1972

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
AXLE ASSEMBLY (RH) MTD-97584A-0637
...
2
Front Axle Ass'y.-L.H. MTD-17585
...
3
Steering Arm Front Axle MTD-983-0055-0637
...
4
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
5
Hex Bolt 5/16-18 x .62" (Spec.) MTD-710-0538
...
6
Hex Bolt 5/16-24 x 2" Lg. MTD-710-0772
...
7
FERRULE 3/8-24 x .375 x 1.31 LG MTD-911-0723A
...
8
DRAG LINK MTD-711-0809
...
9
Hex L-Nut 5/16-24 Thd. MTD-712-0237
...
10
Hex Nut 3/8-24 Thd. MTD-712-0241
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
13
Cotter Pin 1/8" Dia. MTD-714-0470
...
14
Steering Gear Segment MTD-717-0622C
...
15
Ball Joint, 3/8-24 MTD-923-3018
...
16
Push Cap MTD-726-0214
...
17
Lock Wash. 5/16" I.D. MTD-936-0119
...
18
L-Wash. 3/8" I.D. MTD-736-0169
...
19
Fl-Wash. .64" I.D. x 1.24" MTD-736-0187
...
20
Fl-Wash. .340" I.D. x 1.125" MTD-736-0343
...
22
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
23
Fl-Wash. .635" I.D. x 1.585" MTD-736-0285
...
24
STABILIZER PLATE MTD-783P08577A
...
25
SHOULDER SCREW .437 DIA x .350 MTD-938-0141
...
26
Steering Shaft MTD-738-0730
...
27
FLANGE BEARING MTD-941-0225
...
28
TIE ROD 19.1 LG. MTD-747-0759
...
29
SPACER MTD-950-0532
...
30
Spacer.380" I.D. x .625" O.D. x .227 MTD-950-0535
...
31
Front Pivot Bar Support Brkt. MTD-16657
...
32
Rear Pivot Bar Support Brkt. MTD-16658
...
33
BAR ASSEMBLY-P MTD-17127
...
34
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
35
WHEEL ASSEMBLY W/TIRE -13X6 MTD-734-1422
...
xx
TIRE ONLY MTD-734-1421
...
36
WHEEL RIM GREY MTD-753-0838-0662
...
xx
Grease Fitting MTD-737-0146
...
37
TUBELESS VALVE MTD-934-0255
...
38
Flange Bearing .632 ID MTD-741-0487C
...
40
Cotter Pin 3/32" Dia. MTD-714-0111
...
41
Fl-Wash. .406" I.D. x .75" MTD-736-0185
...
42
Hex L-Nut 5/16-24 Thd. MTD-712-0237
...
43
STEERING BEARING MTD-741-0501
...
44
Cr-Sunk Scr. #10 x 5/8" Lg. MTD-710-0837
...
45
STEERING WHEEL MTD-731-0805
...
46
Steering Wheel Cap MTD-931-0220
...
47
Hub Cap MTD-931-0484A
...
48
STEERING BELLOW MTD-731-0559B
...
49
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
50
Hex Nut 3/8-16 Thd. MTD-712-0798
...
51
SHLD. BO'T 1/2" DIA. x 2.32" MTD-738-0728
...
52
BELL WASHER MTD-936-0356
...
...
...
...
...
