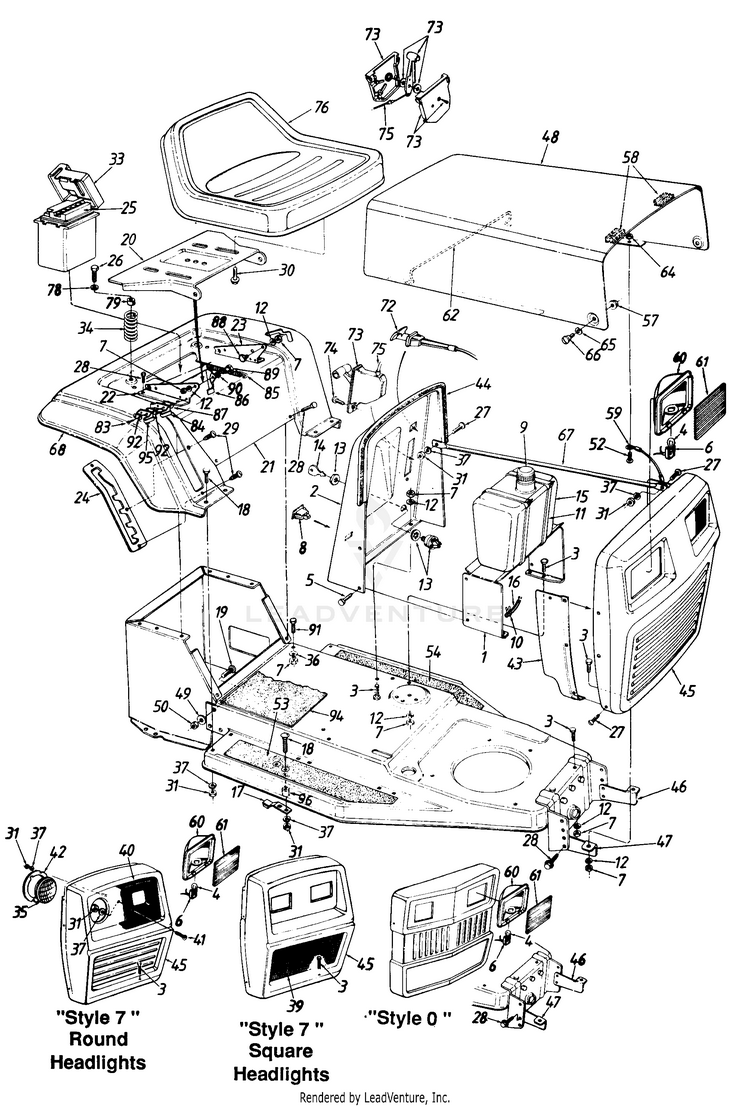

Coast to Coast Mdl 130-312E054/481-1972 Lawn Tractor

Model: Coast To Coast Mdl 130-312E054/481-1972

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
BRACKET-DASH SUPPORT MTD-16655A
...
2
DASH PANEL MTD-16656
...
3
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
4
Miniature Lamp 12V Socket Type (Style 0, 2) MTD-925-0963
...
5
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
6
HEADLAMP SOCKET (Style 0, 2) MTD-925-1058A
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
Light Switch MTD-925-0634
...
9
TANK CAP MTD-751-0603B
...
10
Hose Clamp MTD-726-0205
...
11
Cable Tie MTD-726-0230
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
Ignition Switch MTD-925-0267B
...
14
Key MTD-925-0201
...
15
FUEL TANK 1.36 GAL MTD-751-0555D
...
16
FUEL HOSE 1/4-24" MTD-751-22813-24
...
17
BLADE BRAKE ASSEMBLY MTD-961-0197
...
18
Carriage Bolt 1/4-20 x 1.25" MTD-710-0111
...
19
SCREW 3/8-24 x .80 MTD-710-0793
...
20
SEAT PIVOT BRACKET MTD-783-0039A
...
21
FENDER-RR MTD-17590
...
22
SEAT HINGE SUPPORT BRKT. (RH) MTD-17704
...
23
SEAT HINGE SUPPORT BRKT. (LH) MTD-17703
...
24
BRACKET-DECK INDEX MTD-17553
...
25
BATTERY MTD-753-0607
...
26
Hex Self-Tap Screw 5/6-18 x 1.25" Lg. MTD-710-0817
...
27
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
28
Hex AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
29
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
30
Hex Self-Tap Scr. 3/8-16 x 75" Lg. MTD-710-0623
...
31
HEX NUT 1/4-20 MTD-912-0287
...
33
BATTERY BOX MTD-731-0871B
...
34
COMPRESSION SPRING MTD-732-0588
...
35
Head Light (Style 7) MTD-925-0222
...
36
Bell-Wash. 5/16" I.D. MTD-736-0242
...
37
L-Wash. 1/4" I.D. MTD-936-0329
...
39
GRILLE INSERT (Style 7) MTD-13730
...
40
BEZEL-HEADLAMP (Style 7) (Optional Part) MTD-731-0465
...
41
SCREW-OVAL C SUNKMACH 1/4-20X (Style 7) (Optional Part) MTD-710-0346
...
42
RING HOLDE (Style 7) MTD-09960
...
43
PANEL-SIDE (RH) (Style 2) MTD-16622A
...
xx
PANEL-SIDE (LH) (Style 2) (Not Shown) MTD-16621A
...
xx
Side Panel-R.H. (Style 7) MTD-14748A
...
xx
Side Panel-R.H. (Style 7-Tec.) MTD-16269A
...
xx
Side Panel-L.H. (Style 7) (Not Shown) MTD-14749A
...
xx
SIDE PANEL (Style 0) MTD-14670
...
xx
Side Panel-R.H. (Style 0-Tec.) MTD-17175
...
xx
Side Panel-L.H. (Style 0) (Not Shown) MTD-14669A
...
44
Trim Strip 31" Lg. MTD-731-0511-31
...
45
GRILLE MTD-17025
...
xx
GRILLE-SQ LIGHT (Sq. Headlights) MTD-16444
...
xx
GRILLE (Round Headlights) MTD-14781
...
xx
GRILLE MTD-16277
...
xx
Grille - Style 0 MTD-17028
...
46
BRACKET-GR (Style 2) MTD-17131
...
xx
BRACKET-GRILLE (LH) (Style 0, 7) MTD-17143A
...
47
BRACKET-GR (Style 2) MTD-17132
...
xx
BRACKET-GRILLE (RH) (Style 0, 7) MTD-17144A
...
48
HOOD-86 CL (Style 2,7) MTD-16681
...
xx
HOOD-PROMO (Style 0) MTD-17146
...
49
L-Wash. 3/8" I.D.-H.D. MTD-736-0217
...
50
Hex L-Nut 3/8-24 Thd. MTD-712-0241
...
52
Truss Mach. Scr. #10-24 x .5" Lg. MTD-710-0473
...
53
FOOT PAD - R H MTD-723-0308B
...
54
FOOT PAD (LH) MTD-723-0309B
...
57
LOCK NUT 1/4 x 28 MTD-712-0380
...
58
Foam Strip MTD-722-0157
...
59
Hood Stop MTD-723-0302
...
60
HEADLIGHT HOUSING (Style 0,2) MTD-931-0705
...
61
HEADLAMP LENS (Style 0,2) MTD-931-0706
...
62
SPRING-HOOD MTD-732-0414A
...
64
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
65
Spr. Wash. .39" I.D. x .62" O.D. MTD-736-0413
...
66
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
67
SUPPORT-GR MTD-749-0722A
...
68
Trim Strip 81" Lg. MTD-731-0511-81
...
72
CONTROL-CHOKE MTD-746-0617A
...
xx
CONTROL-CHOKE (10 H.P. Tec. Only) MTD-746-0618
...
73
Throttle Control Box MTD-831-0823A
...
74
Truss AB-Tap Scr. #10 x .5" MTD-710-0779A
...
75
Throttle Wire (B&S) MTD-746-0501
...
xx
Throttle Control Wire 18.5" (10 H.P. Tec. Only) MTD-946-0638
...
xx
Throttle Control Wire 18.5" (12 H.P. Tec. Only) MTD-946-0638
...
76
LOW BACK SEAT BLACK W/SWITCH MTD-957-0378
...
78
Fl-Wash. .344" I.D. x .88" O.D. MTD-736-0159
...
79
RUBBER BUSHING .318IDX.930OD MTD-722-0160
...
83
Hex Tap Scr. #8 x .5" Lg. MTD-710-0227
...
84
Safety Switch (Seat) MTD-725-1439
...
85
Extension Spring MTD-932-0581B
...
86
BRACKET-SEAT LIFT MTD-17239C
...
87
Insulator Boss Plate MTD-726-0278
...
88
Shoulder Bolt MTD-938-0155
...
89
Shld. Bolt 437" Dia. x .268" Lg. MTD-738-0296
...
90
Spr. Wash. 7/16" I.D. MTD-936-0141
...
91
Screw, 5/16-18 x .625 MTD-710-0604A
...
92
Insulator Plate MTD-726-0279
...
94
CENTER FOOT PAD MTD-723-0310A
...
95
Outer Seat Spring Switch (Seat) MTD-925-1303
...
96
SPACER MTD-950-0539
...
...
...
...
...
