Coast to Coast Mdl 120-560B054/481-6302 Self-Propelled Walk-Behind Mower

Model: Coast To Coast Mdl 120-560B054/481-6302

Save
 Part Not Listed?Part Not Listed?
product name

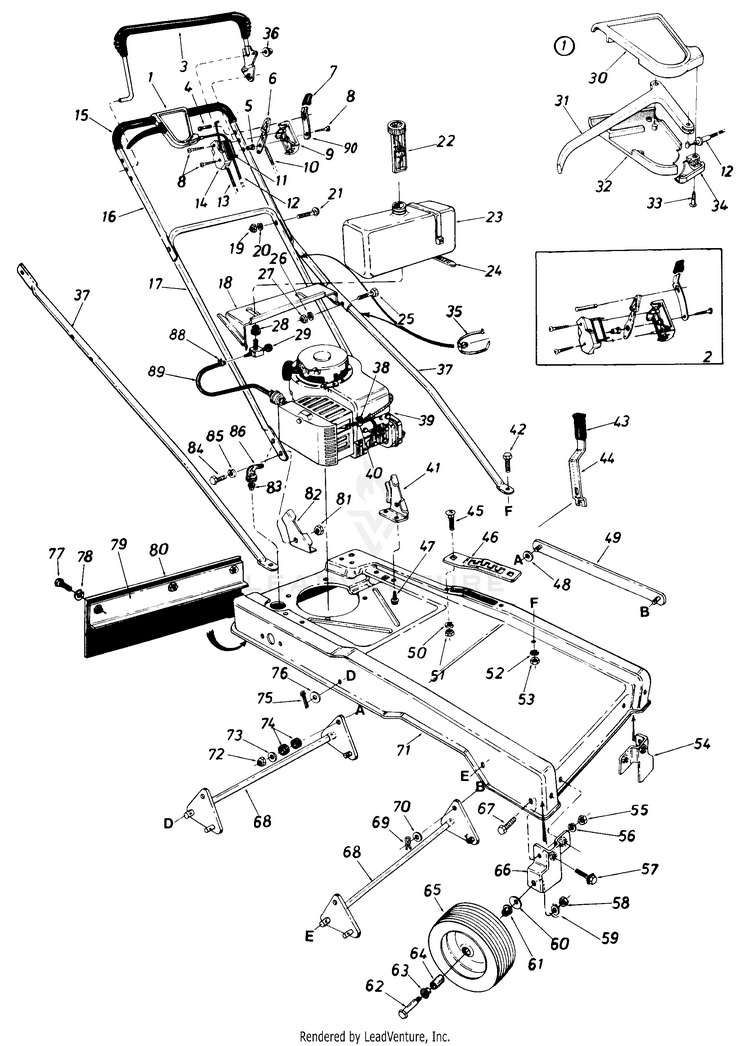

Parts

...
...
1
KIT-CLUTCH CONTROL MTD-753-0362
...
2
KIT-THROTTLE CONTROL MTD-753-0431
...
3
BAIL (LH) MTD-731-0609
...
4
LOCKING PIN MTD-731-0607
...
5
CONROL DISC PIN MTD-731-0524
...
6
Throttle Control Lever MTD-931-0972
...
7
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
8
Truss Mach. Hi-B Tap Scr. #12 x 1.50" Lg. MTD-710-0796
...
9
PANEL MTD-731-0817
...
10
Throttle Cable MTD-946-1115
...
11
Control Label-Throttle MTD-777-5772
...
12
CLUTCH CABLE 50" MTD-946-0650
...
13
CLUTCH CABLE MTD-946-0405
...
14
CIUTCH PANEL HALF MTD-731-0816
...
15
Grip 22" Lg. MTD-718-0145
...
16
Upper Handle MTD-749-0439E-0637
...
xx
Upper Handle (Chrome) MTD-749-0437A
...
17
Lower Handle MTD-749-0907B
...
xx
Lower Handle MTD-749-0907B
...
18
BRACKET-GA MTD-14426
...
19
HEX NUT 5/16-18 MTD-712-3010
...
20
Lock Wash. 5/16" I.D. MTD-936-0119
...
21
Carriage Bolt 5/16-18 x 1.50" Lg.* MTD-710-0262
...
22
GAUGE-GAS MTD-723-0155
...
23
FUEL TANK MTD-751-0225
...
24
Cable Tie MTD-726-0230
...
25
Hex Bolt 5/16-24 x 1.25" Lg. MTD-710-0672
...
26
Lock Wash. 5/16" I.D. MTD-936-0119
...
27
Hex Nut 5/16-24 Thd. MTD-912-3057
...
28
BUSHING MTD-935-0149
...
29
Fuel Shut-Off Valve with Screen MTD-951-0171
...
30
HALF COVER MTD-731-0617A
...
31
Drive Control MTD-731-0620A
...
32
Control Cover Half-Lower MTD-753-0833
...
33
Flat "C" Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
34
CABLE MOUNTING CAP MTD-731-0619A
...
35
Cable Tie MTD-725-0157
...
36
PUSH CAP MTD-726-0245
...
37
Strut .75" O.D. x 43.44" Lg. MTD-749-0697A
...
38
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
39
Engine-5 H.P. MTD-NA
...
40
CASING CLAMP MTD-751-0442
...
41
Handle Mount Brkt.-L.H. MTD-12577
...
42
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
43
Grip-Black MTD-720-0142
...
44
HANDLE-LIF MTD-15342
...
45
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
46
BRACKET-SUPPORT MTD-16507
...
47
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50 MTD-710-0603
...
48
FLAT WASHER .406 ID X 1 1/4 OD MTD-736-0247
...
49
LINK ASSEMBLY MTD-15331
...
50
Lock Wash. 5/16" I.D. MTD-936-0119
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
53
HEX NUT 5/16-18 MTD-712-3010
...
54
Wheel Brkt. Ass'y.-L.H. MTD-10293
...
55
HEX NUT 5/16-18 MTD-712-3010
...
56
Lock Wash. 5/16" I.D. MTD-936-0119
...
57
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
58
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
59
L-Wash. 3/8" I.D.' MTD-736-0169
...
60
Bell-Wash. .400' I.D. x .88" O.D. MTD-736-0105
...
61
UNKNOWN MTD-NA
...
62
Axle Bolt MTD-NA
...
xx
SCREW 3/8-16X1.875 GR2 MTD-710-1020
...
xx
Axle Bolt MTD-738-0102
...
63
Front Wheel Bearing MTD-NA
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0645
...
xx
WHEEL ASSEMBLY MTD-734-1259
...
xx
Wheels - Front MTD-753-08093
...
64
UNKNOWN MTD-NA
...
65
Wheel Ass'y. Comp. 8 x 1.75 MTD-NA
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0645
...
xx
WHEEL ASSEMBLY MTD-734-1259
...
xx
Wheels - Front MTD-753-08093
...
66
Wheel Brkt. Ass'y.-R.H. MTD-10294
...
67
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
68
SHAFT ASSEMBLY MTD-16497
...
69
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
70
Fl-Wash. .385" I.D. x .88" MTD-736-0300
...
71
Hi-Wheel Frame MTD-16505
...
72
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
73
Fl-Wash. .385" I.D. x .88" MTD-736-0300
...
74
RUBBER WASHER MTD-735-0126A
...
75
Cotter Pin 1/8" Dia. x 1 Lg. MTD-714-0115
...
76
FLAT WASHER .510 x .995 MTD-736-0272
...
77
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
78
L-Wash. 1/4" I.D. MTD-936-0329
...
79
STRIP ASSEMBLY RETAINING MTD-16563A
...
80
FLAP-RR MTD-731-0811
...
81
Jam Nut, 3/8-16 MTD-912-3008
...
82
BRACKET-HANDLE MTG MTD-12578
...
83
Part of Engine MTD-NA
...
84
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
85
L-Wash. 3/8" I.D. MTD-736-0169
...
86
90 DEGREE ELBOW MTD-737-0125
...
88
HOSE CLAMP MTD-726-0207
...
89
Fuel Line 15" Lg. MTD-751-0173A
...
90
SPRING-LOCKOUT MTD-732-0401

Parts

...
...

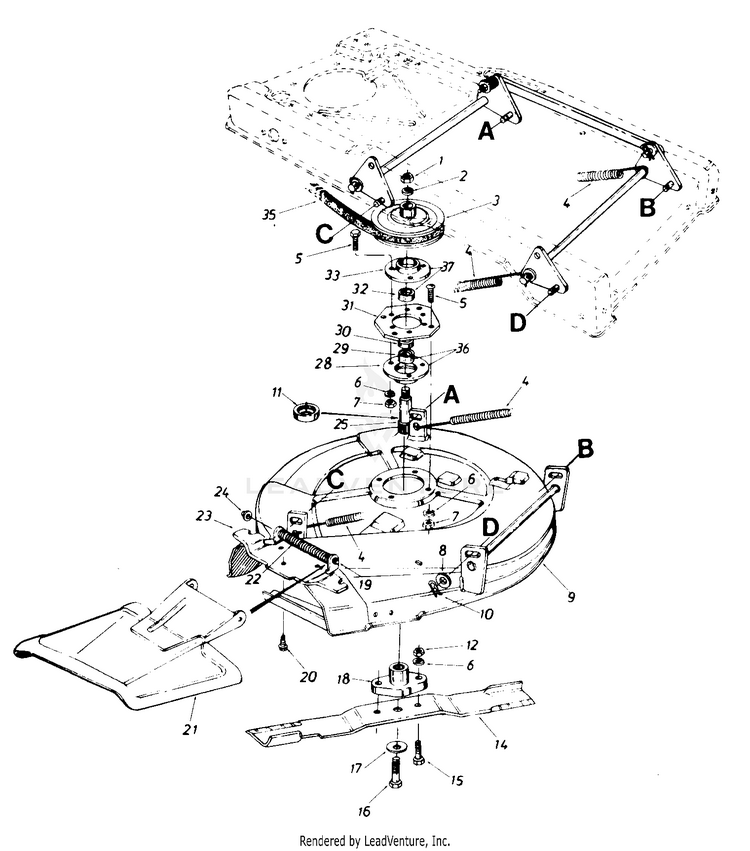

1
HEX JAM NUT 5/8-18 MTD-712-0318
...
2
Bell-Wash. .630" I.D. x 1.25" O.D. MTD-736-0317
...
3
5/8" "V"-Pulley .75" I.D. x 9.5" MTD-756-0484
...
4
EXTENSION SPRING MTD-732-0529
...
5
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
6
Lock Wash. 5/16" I.D. MTD-936-0119
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
FLAT WASHER .510 x .995 MTD-736-0272
...
9
26" Deck Ass'y. MTD-16499
...
10
Inter. Cotter Pin 1/2" Dia. MTD-714-0101
...
11
SHIELD-BRG MTD-13703
...
12
Hex Nut 5/16-24 Thd. MTD-912-3057
...
14
26" BLADE MTD-942-0147
...
15
Hex Bolt Special 5/16-24 x 1.0" Lg. MTD-710-0888
...
16
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
17
BELL WASHER MTD-936-0356
...
18
Blade Adapter MTD-748-0300
...
19
HINGE PIN MTD-711-0571
...
20
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599
...
21
CHUTE COVER ASS'Y. MTD-11571
...
22
TORSION SPRING MTD-732-0261
...
23
ADAPTER MTD-11396
...
24
PUSH NUT MTD-726-0106
...
25
BLADE SPINDLE MTD-738-0578
...
28
Bearing Housing MTD-08253B
...
29
BALL BEARING MTD-741P0919B
...
30
Spacer 1.0" O.D. x .790" I.D. x.350" Lg. MTD-750-0456
...
31
PLATE-SPIN MTD-16490
...
32
BALL BEARING MTD-741P0919B
...
33
Open Brg. Housing 1.85 I.D. MTD-15296A
...
35
V-Belt MTD-954-0326
...
36
BEARING HOUSING ASSEMBLY (Incl. Ref. 28 & 29) MTD-741-0163A
...
37
OPEN BRG. HOUSING 1.85 (Incl. Ref. 32 & 33) MTD-15297A

Parts

...
...

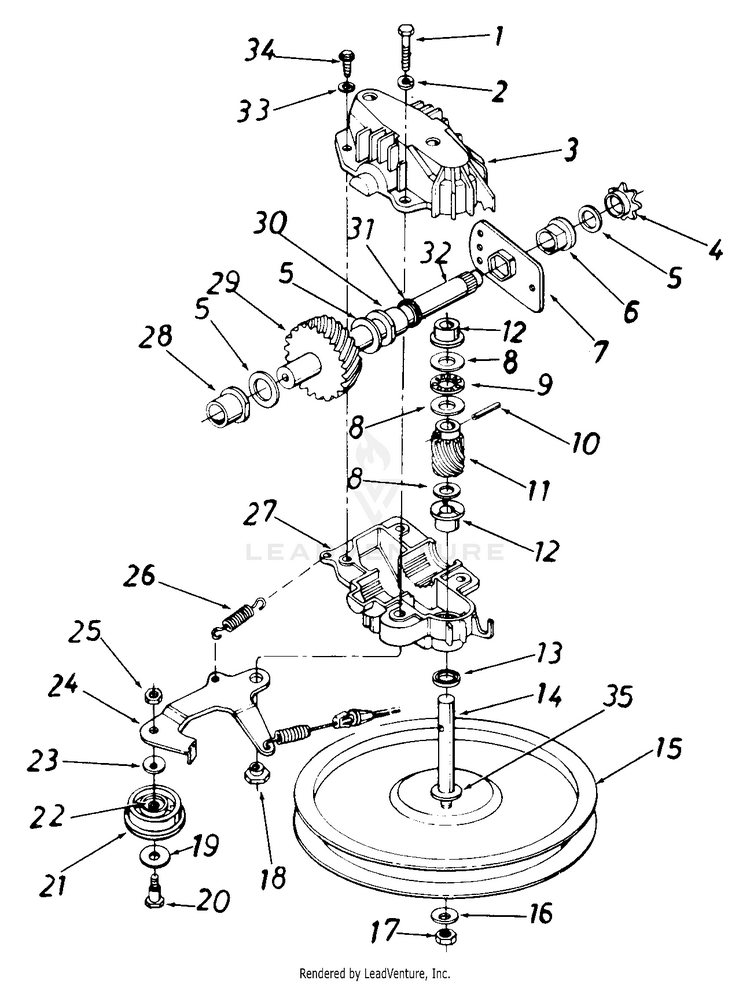

1
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
HOUSING HALF UPPER MTD-717-0418A
...
4
SPROCKET-7T MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. MTD-741-0413
...
7
CUP BEARING HEX MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
10
SPRING PIN MTD-715-0152
...
11
WORM GEAR MTD-717-0420
...
12
Flange Bearing MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
14
KIT-TRAN PUL SHFT MTD-753-0448
...
15
PULLEY (Not Part of Transmission Complete) MTD-756-0330A
...
16
SPRING WASHER BELL (Not Part of Transmission Complete) MTD-736-0270
...
17
Jam Nut, 1/4-28, LH (Not Part of Transmission Complete) MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 (Not Part of Transmission Complete) MTD-738-0440
...
19
Fl-Wash. .390" I.D. x 1.0" (Not Part of Transmission Complete) MTD-736-0344
...
20
SHOULDER SCREW (Not Part of Transmission Complete) MTD-938-0691
...
21
Fl-Idler Plastic 1.50" Dia. x .48 (Not Part of Transmission Complete) MTD-753-0518
...
22
NEEDLE BEARING (Not Part of Transmission Complete) MTD-741-0482
...
23
SPRING WASHER BELL (Not Part of Transmission Complete) MTD-736-0270
...
24
BRACKET AS (Not Part of Transmission Complete) MTD-16502
...
25
Hex Patch L-Nut 1/4-28 Thd. (Not Part of Transmission Complete) MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. (Not Part of Transmission Complete) MTD-732-0357A
...
27
HOUSING HALF-LOWER MTD-717-0419
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
SHAFT & GEAR AS MTD-717-0422
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
SHAFT & GEAR AS MTD-738-0607
...
33
L-Wash. #10 MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD (Not Part of Transmission Complete) MTD-736-0410
...
xx
TRANSMISSION MTD-917-0417B

Parts

...
...

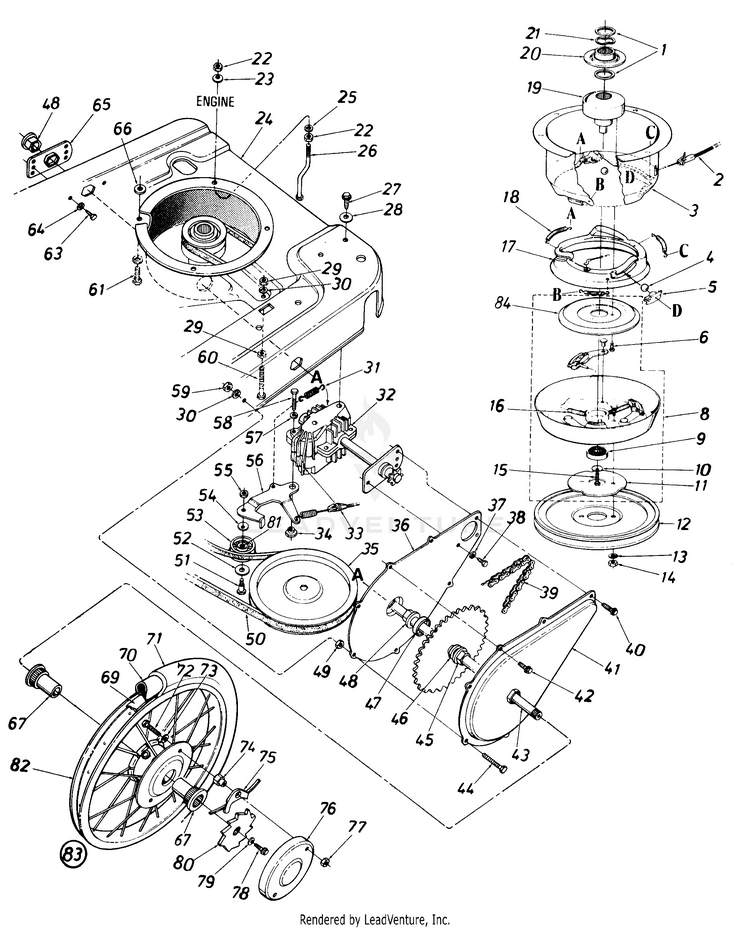

1
SERRATED WASHER MTD-936-0409
...
2
CLUTCH CABLE MTD-946-0405
...
3
HOUSING-CL MTD-16509
...
4
STEEL BALL MTD-741-0326
...
5
BALL-BLOCK MTD-731-0520
...
6
Hex Wash. TT-Tap Cl. Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
8
Clutch Blade Housing Ass'y. (Also Incl. Ref. 19) MTD-717-0889
...
9
BALL BEARING MTD-941-0600
...
10
BELL WASHER MTD-736-0412
...
11
Blade Disc. MTD-14302
...
12
PULLEY-5/8 MTD-756-0483
...
13
L-Wash. 3/8" I.D. MTD-736-0169
...
14
Hex Nut 3/8-24 Thd. MTD-712-0241
...
15
Hex Bolt 7/16-20 x 2.0" Lg.- Grade 5 MTD-710-1002
...
16
COMPRESSION SPRING MTD-732-0527
...
17
Brake Cup Cone MTD-719-0283
...
18
EXTENSION SPRING MTD-732-0545
...
19
ADAPTER-FIXED PULL MTD-756-0504
...
20
MOVABLE PULLEY MTD-756-0503
...
21
Wave Wash. 1.0" I.D. x 1.5" O.D. MTD-736-0447
...
22
HEX NUT 5/16-18 MTD-712-3010
...
23
Bell-Wash. .336" I.D. x .860" O.D. MTD-736-0242
...
24
Hi-Wheel Frame MTD-16505
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
BELT GUARD-5/16 BOLT MTD-710-0973
...
27
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
28
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
29
HEX NUT 1/4-20 MTD-912-0287
...
30
L-Wash. 1/4" I.D. MTD-936-0329
...
31
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
32
TRANSMISSION (See Breakdown) MTD-917-0417B
...
33
CLUTCH CABLE 50" MTD-946-0650
...
34
Shld. Spacer .375" Dia. x .170 MTD-738-0440
...
35
PULLEY MTD-756-0330A
...
36
COVER-CHAI MTD-16504
...
37
L-Wash. 1/4" I.D. MTD-936-0329
...
38
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
39
#48 CHAIN MTD-713-0257
...
40
Hex Wash. TT-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
41
45 TOOTH CHAIN CASE MTD-16503
...
42
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
43
AXLE ASSEMBLY MTD-713-0402
...
44
Hex Bolt 1/4-28 x .88" Lg. MTD-710-0281
...
45
Hex Flange Brg. .631" I.D. x .320 MTD-741-0481
...
46
Fl-Wash. MTD-936-0256
...
47
Spacer .630" I.D. x 1.250" O.D. MTD-748-0313
...
48
Hex Flange Brg. .631" I.D. x .720 MTD-741-0413
...
49
Hex Jam Nut 1/4-28 Thd. MTD-712-0314
...
50
V-BELT- 3/8 x 28 MTD-754-0327
...
51
SHOULDER SCREW MTD-938-0691
...
52
Fl-Wash. .390" I.D. x 1.00" O.D. MTD-736-0344
...
53
Fl-Idler Plastic 1.50" Dia. x .48 MTD-753-0518
...
54
SPRING WASHER BELL MTD-736-0270
...
55
Hex Nut 1/4-28 Thd. MTD-712-0138
...
56
BRACKET AS MTD-16502
...
57
L-Wash. 1/4" I.D. MTD-936-0329
...
58
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
59
Hex Nut 1/4-28 Thd. MTD-712-0138
...
60
Hex Bolt 1/4-20 x 2.00" Lg. MTD-710-0501
...
61
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
63
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
64
L-Wash. 1/4" I.D. MTD-936-0329
...
65
CUP BEARING HEX MTD-16500A-0637
...
66
Fl-Wash. .406" I.D. x .734" O.D. MTD-736-0185
...
67
FLANGE BEARING MTD-741-0485
...
69
RIM STRIP MTD-734-1400
...
70
TUBE-16 x 2.12 MTD-734-1397
...
71
CHEVRON TIRE 16 x 2.125 MTD-734-1396
...
72
Hex Bolt Special 5/16-18 x 1.0" Lg. MTD-710-0376
...
73
Washer, Lock, 5/16 MTD-936-0104
...
74
HEX NUT MTD-712-0329
...
75
PAWL MTD-748-0315
...
76
COVER-WHEE MTD-14967
...
77
HEX NUT 5/16-18 MTD-712-3010
...
78
TAP SCREW MTD-710-0782
...
79
SPRING WASHER BELL MTD-736-0270
...
80
WHEEL RACHET MTD-748-0312
...
81
NEEDLE BEARING MTD-741-0482
...
82
WHEEL RIM 16.0 x 2 MTD-734-1399
...
83
WHEEL ASSEMBLY W/TIRE MTD-734-1398
...
84
CONE-CLUTC MTD-14304A
...
...
...
...
...
