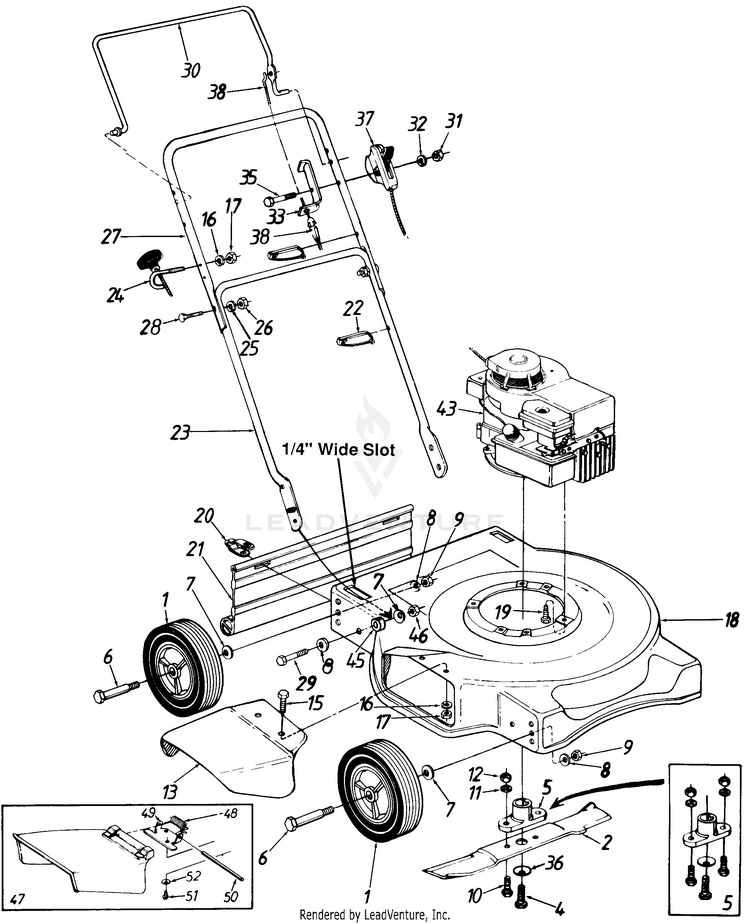

Coast to Coast Mdl 110-030R054 Push Walk-Behind Mower

Model: Coast To Coast Mdl 110-030R054

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
WHEEL ASSEMBLY W/TIRE MTD-734-1170
...
2
20" BLADE MTD-742-0520
...
4
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
5
Blade Adapter Kit (Keyed) MTD-753-0484
...
6
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
7
Bell-Wash. .380" I.D. x .88" MTD-736-0105
...
8
Bell-Wash. .39" I.D. x 1.13" MTD-736-0331
...
9
Hex Nut 3/8-16 Thd. MTD-712-0798
...
10
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055
...
11
L-Wash. 3/8" I.D. MTD-736-0169
...
12
Hex Nut 3/8-24 Thd. MTD-712-0241
...
13
CHUTE DEFLECTOR MTD-931-1034B
...
15
Hex Bolt 1/4-20 x .50" Lg. (Optional Part) MTD-910-0289
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
HEX NUT 1/4-20 MTD-912-0287
...
18
20" Deck Ass'y. MTD-706-14597
...
19
Hex Wash. Hd. Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
20
HINGE CLIP MTD-17098P
...
21
Rear Flap MTD-731-0872B
...
22
Cable Tie MTD-725-0157
...
23
Lower Handle (Side-Mounted Rope Guide) MTD-749-0928A-0637
...
xx
LOWER HANDLE (Center-Mounted Rope Guide) MTD-749-0807
...
24
J-BOLT MTD-747-0779
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
HEX NUT 5/16-18 MTD-712-3010
...
27
UPPER HANDLE MTD-749-0756A
...
28
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
29
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
30
CONTROL HANDLE ASSEMBLY MTD-747-0748
...
31
HEX NUT 1/4-20 MTD-912-0287
...
32
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
33
BRACKET-CA MTD-17174
...
35
Hex Bolt 1/4-20 x 1.75" Lg. MTD-710-0136
...
xx
Hex Bolt 1/4-20 x 1.25" Lg. (Used w/o Throttle Control) MTD-710-0106
...
36
Bell-Wash. .39" I.D. MTD-736-0452
...
37
Throttle Control MTD-746-0800A
...
38
Control Cable MTD-946-0553
...
43
Engine MTD-NA
...
45
SPACER MTD-706-10776
...
46
Hex L-Nut 3/8-24 Thd. MTD-912-0355
...
47
CHUTE DEFLECTOR (Optional Part) MTD-931-1034B
...
48
Torsion Spring (Optional Part) MTD-932-0593
...
49
PLATE-ADAPTER (Optional Part) MTD-17032A
...
50
Hinge Pin (Optional Part) MTD-747-0710A
...
51
Hex Self-Tap Scr. 1/4-20 x .5" Lg. (Optional Part) MTD-710-0599
...
52
SPRING WASHER BELL (Optional Part) MTD-736-0270
...
...
...
...
...
