Coast to Coast 133I670F054 (481-2251) (1993) Lawn Tractor

Model: 133I670F054 (481-2251) (1993)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

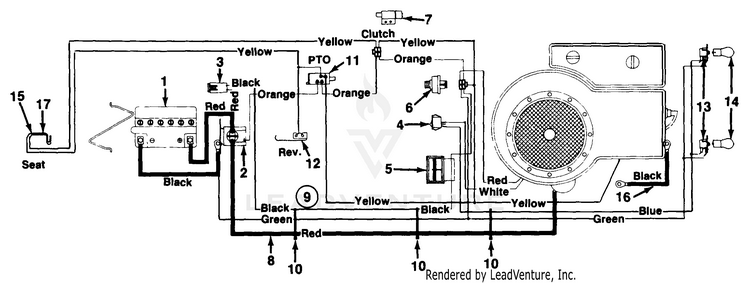

Electrical/Switches

...
...
1
BATTERY MTD-753-0607
...
2
Solenoid MTD-925-1426A
...
3
Fuse 1.5 Amps MTD-725-1625
...
4
Light Switch (Optional) MTD-925-0634
...
5
Ammeter (Optional) MTD-925-0925
...
6
Ignition Switch MTD-925-0267B
...
7
SWITCH MTD-925-04039
...
8
WIRE ASSEMBLY (RED) (#6X32.5) MTD-629-0740
...
xx
WIRE-SOLENOID/STARTER 36"LG MTD-725-1082
...
9
WIRE HARNESS MTD-629-0066
...
xx
WIRE HARNESS MTD-629-0073
...
xx
WIRE HARNESS-B&S MTD-629-0076
...
xx
WIRE HARNESS-TEC MTD-629-0078
...
10
Cable Tie MTD-726-0197
...
11
Safety Switch MTD-725-0803B
...
12
Safety Switch (Reverse) MTD-725-1643
...
13
HEADLIGHT SOCKET (1/4 TURN) (Used on Styles 0, 1, 6, 7) MTD-925-1649A
...
xx
SHORT LAMP SOCKET (Used on Styles 2, 3, 4, 5, 8, 9) MTD-925-1650
...
14
Miniature Lamp 12V Socket Type MTD-925-0963
...
15
Outer Seat Spring Switch MTD-925-1303
...
16
WIRE MTD-725-0980
...
17
Safety Switch (Seat) MTD-725-1439
...
...
...
...
...
