Coast to Coast 133I600F054 (481-2277) (1993) Lawn Tractor

Model: 133I600F054 (481-2277) (1993)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

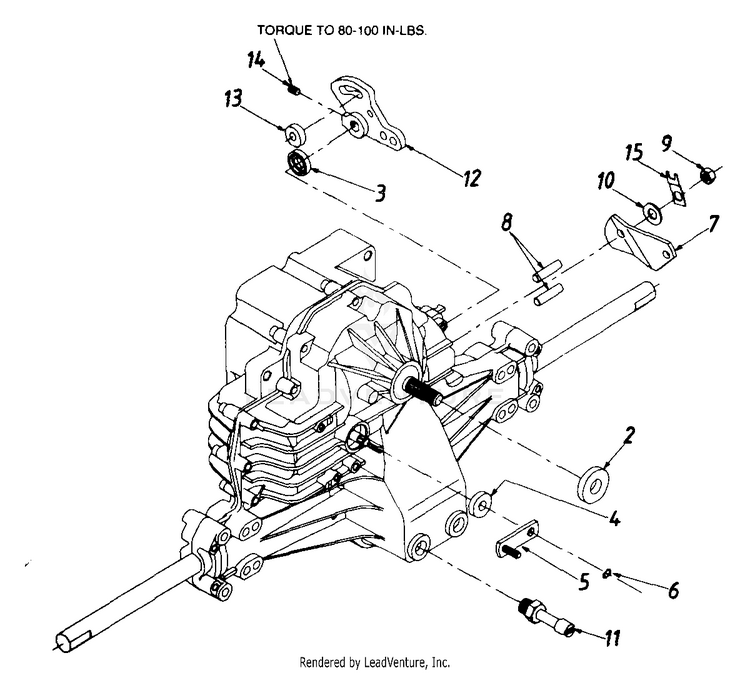

product name

Transmission Complete

...
...
?1
TRANSMISSION COMP. MTD-718-0254
...
2
Seal - Lip MTD-HG-9008000-0128
...
3
Seal - Lip MTD-HG-9008000-0126
...
4
LIP SEAL MTD-HG-45074
...
5
ARM-BYPASS MTD-HG-50126
...
6
RETAINING RING MTD-HG-44870
...
7
Arm - Actuating MTD-HG-44094
...
8
ACTUATING PIN MTD-HG-44891
...
9
NUT MTD-912-0273
...
10
Fl-Wash. .344" I.D. x .875" O.D. MTD-736-0371
...
11
BREATHER ASSEMBLY MTD-HG-50042
...
12
CONTROL ARM MTD-HG-45007
...
13
PUCK-DAMPENER MTD-HG-50034
...
14
SCREW-SET MTD-HG-50018
...
15
Strap, Locking MTD-HG-50129
...
...
...
...
...
