Coast to Coast 133I600F054 (481-2277) (1993) Lawn Tractor

Model: 133I600F054 (481-2277) (1993)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

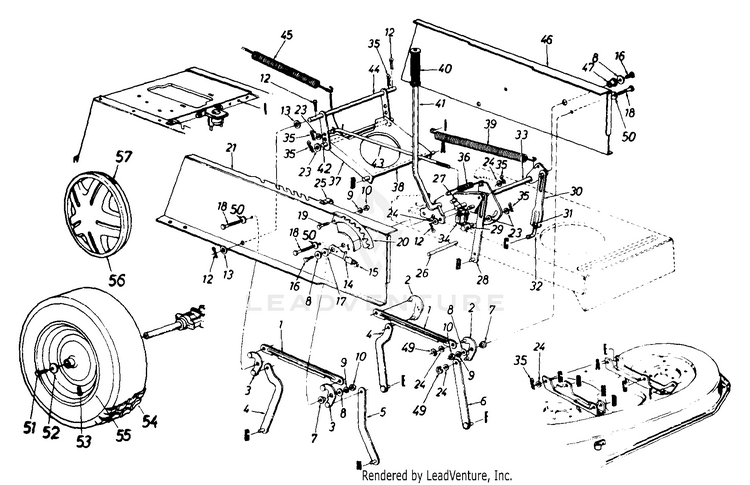

Deck Lift & Hanger/Wheels, Rear

...
...
1
ROD-CONNEC MTD-09735A
...
2
PIVOT LINK (LH) (Uses "E"-Ring) New Part MTD-983-0029A-0637
...
xx
PIVOT LINK (LH) (Uses Cotter Pin) MTD-983-0029A-0637
...
3
PIVOT LINK ASSEMBLY (RH) (Uses "E"-Ring) New Part MTD-683-0028
...
xx
PIVOT LINK ASS'Y. (RH) (Uses Cotter Pin) MTD-17641
...
4
DECK HANGER LINK ASS'Y MTD-17710
...
5
HANGER-DECK LINK MTD-14800A
...
6
DECK HANGER LINK ASS'Y MTD-14804A
...
7
SPACER MTD-948-0331
...
8
Fl-Wash. .344" I.D. x .62" O.D. MTD-736-0264
...
9
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts lists. MTD-936-0119
...
10
HEX NUT 5/16-18 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts lists. MTD-712-3010
...
12
Cotter Pin 1/8" Dia. MTD-714-0470
...
13
Fl-Wash. MTD-936-0256
...
14
HEIGHT ADJUSTER STOP LEVER ASSEMBLY (Incl. Ref. 15) MTD-683-0003
...
15
KNOB-HGT ADJ-BLACK Optional Part MTD-08540
...
16
Screw, 5/16-18 x .625 MTD-710-0604A
...
17
Flange Brg. .63" I.D. Optional Part MTD-748-0176
...
18
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
19
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
20
Index Brkt. MTD-783-04113P
...
21
UPPER FRAME (RH) New Part MTD-783-0042D
...
23
FLAT WASHER .38X.88 MTD-736-0267
...
24
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
25
Clamp MTD-726-0272
...
26
ROD-RUNNING BOARD MTD-738-0526
...
27
Hex Wash. Hd. Tap Scr. MTD-710-3007
...
28
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
29
FERRULE 3/8-24 x .375 x 1.31 LG MTD-911-0723A
...
30
Adj. Deck Lift Link MTD-17712-0637
...
31
Hex Nut 1/2-20 Grade 5 MTD-912-3066
...
32
LIFT ADJUSTMENT LINKER MTD-911-0841
...
33
LIFT SHAFT ASS'Y MTD-17637A
...
34
Safety Switch MTD-725-0803B
...
35
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
36
EXTENSION SPRING MTD-932-0637
...
37
STABILIZER BRACKET BLACK MTD-17636D-0637
...
38
SHAFT .50 DIA x 10.50 LG MTD-738-0670A
...
39
EXTENSION SPRING MTD-732-0638
...
40
LIFT HANDLE GRIP MTD-720-0233
...
41
DECK LIFT HANDLE ASS'Y MTD-17675
...
42
ROD .380 DIA x 9.34"L MTD-738-0669
...
43
Disengagement Rod MTD-747-0598
...
44
SHAFT ASSY (POWDER BLACK) MTD-97624-0637
...
45
Ext. Spring .94" O.D. x 7.58" MTD-932-0556
...
46
UPPER FRAME (LH) MTD-783-0043B
...
47
Flange Bearing .632 ID MTD-741-0487C
...
49
E-RING FOR .500 MTD-916-0104
...
xx
Cotter Pin 1/8" Dia. MTD-714-0470
...
50
Bell-Wash. .325" I.D. MTD-736-0425
...
51
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
52
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
53
TUBELESS VALVE (Service Only) MTD-934-0255
...
54
WHEEL ASSEMBLY W/TIRE 18 x 9.5 x COLOR MTD-734-0817
...
xx
TIRE-18.0X9.50-8-DOGBONE TRD MTD-734-0448
...
55
RIM ASSEMBLY (8.0 x 7.0 x .750) MTD-634-04369
...
56
Hub Cap Optional Part MTD-734-1615A
...
xx
HUB CAP W/ Optional Part MTD-734-1614
...
57
SPRING CLIP (Used w/Ref. No. 56) MTD-727-0425A
...
...
...
...
...
