Coast to Coast 133I600F054 (481-2277) (1993) Lawn Tractor

Model: 133I600F054 (481-2277) (1993)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

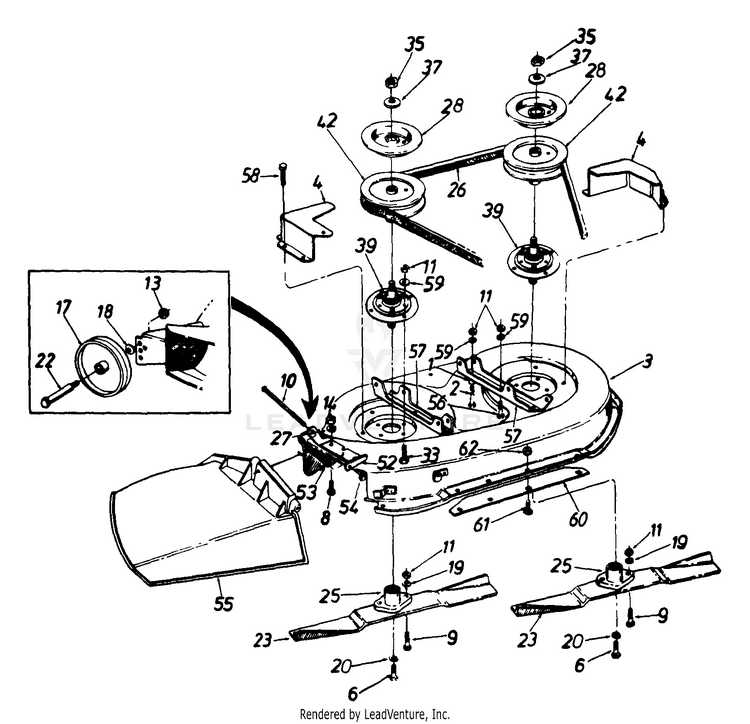

Deck Assembly

...
...
1
SPACER .33" I D. x .88" MTD-750-0776
...
2
Hex Bolt 5/16-24 x 1.25" Lg. MTD-710-0672
...
3
DECK ASSEMBLY K MTD-17503B
...
xx
KIT-DECK 38" (For Service Only) MTD-801-7503
...
xx
38" Deck Ass'y. w/o Deck Wheels MTD-17717B
...
xx
KIT-DECK 38" (For Service Only) MTD-813-06102
...
4
BELT GUARD (POWDER BLACK) MTD-17665-0637
...
6
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
8
Hex Bolt 1/4-20 x .62" MTD-710-0258
...
9
Hex Bolt Special 5/16-24 x 1.0" MTD-710-0888
...
10
Hinge Pin MTD-911-0792
...
11
Hex Nut 5/16-24 Thd. For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-3057
...
13
Hex Top L-Nut 3/8-16 Thd. Optional deck assembly with wheels MTD-712-0181
...
14
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
17
DECK WHEEL (5.0 DIA X 1.38) Optional deck assembly with wheels MTD-734-06265
...
18
Bell-Wash. .40" I.D. x .88" O.D. Optional deck assembly with wheels MTD-736-0105
...
19
Lock Wash. 5/16" I.D. MTD-936-0119
...
20
L-Wash. 3/8" I.D.- H.D. MTD-736-0217
...
22
Shld. Bolt .498" Dia. x 1.53" Optional deck assembly with wheels MTD-938-0373
...
23
19.38" BLADE (HI LIFT) MTD-942-0473A
...
25
Blade Adapter MTD-748-0300
...
26
V-Belt MTD-954-0329A
...
27
SPRING WASHER BELL MTD-736-0270
...
28
BRAKE DISC MTD-09322
...
33
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
35
HEX JAM NUT 5/8-18 MTD-712-0318
...
37
L-Wash. 5/8" I.D. For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0158
...
39
Blade Spindle Ass'y. Comp. MTD-753-05319
...
42
5" Dia. Pulley MTD-756-0486
...
52
Hinge Mtg. Brkt. MTD-703-1693A
...
53
Torsion Spring MTD-732-0602A
...
54
PUSH NUT MTD-726-0106
...
55
CHUTE ASSEMBLY (Incl. Ref. 10, 52, 53, 54, 55) MTD-631-05229
...
56
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
57
DECK HANGER BRACKET BLACK MTD-17493B-0637
...
58
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
59
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
60
SKIRT-EXTENSION MTD-17863
...
61
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
62
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
...
...
...
...
