Central Park Mdl 128-478R046 Self-Propelled Mower

Model: Central Park Mdl 128-478R046

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...

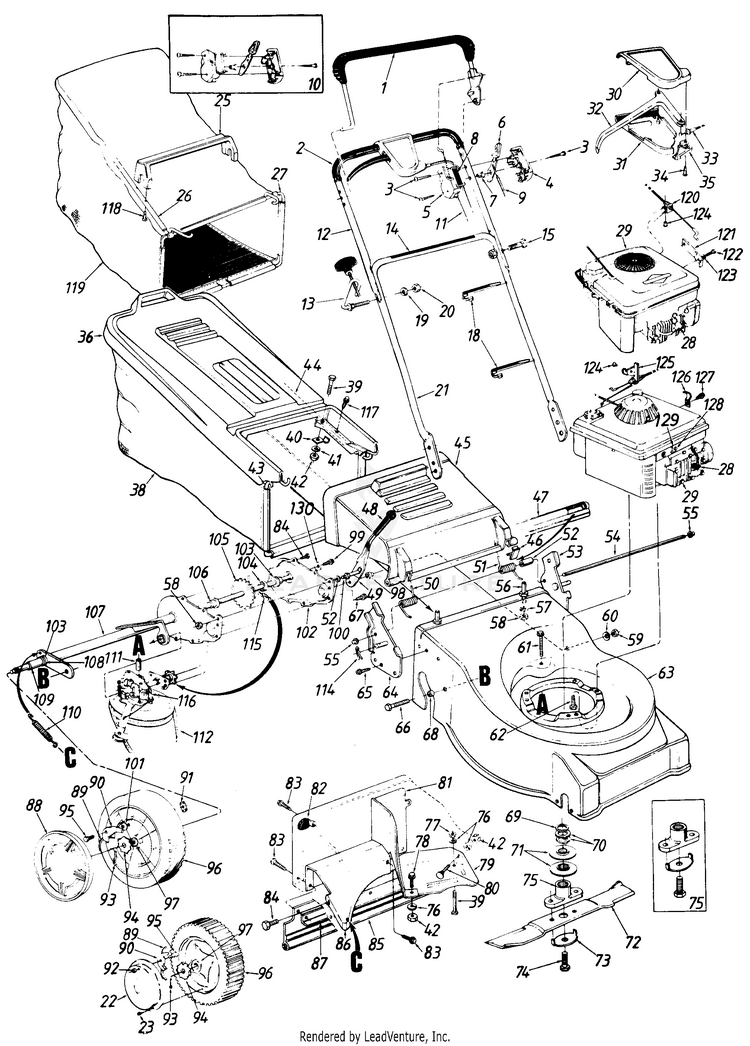

1
BAIL (LH) MTD-731-0609
...
2
FOAM GRIP - 9" MTD-720-0294A
...
3
Truss Mach. B-Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
4
PANEL MTD-731-0817
...
5
CIUTCH PANEL HALF MTD-731-0816
...
6
Throttle Control Lever (ATTACHING THROTTLE WIRE TO LEVER Modles 466R, 469R, 476R and 479R: Use upper hole in lever as shown. All other models: Use lower hole in lever.) MTD-931-0972
...
7
CONROL DISC PIN MTD-731-0524
...
8
Control Label-Throttle MTD-777-5774
...
9
Throttle Wire 55" Lg. (464R, 474R) (ATTACHING THROTTLE WIRE TO LEVER Modles 466R, 469R, 476R and 479R: Use upper hole in lever as shown. All other models: Use lower hole in lever.) MTD-946-0671A
...
xx
Throttle Cable (465R, 468R, 475R, 478R) MTD-946-1115
...
xx
Throttle Wire-58" Lg. (466R, 469R, 476R, 479R) MTD-946-0674A
...
10
CONTROL HOUSING COMP. MTD-753-0430
...
11
49" CONTROL CABLE (464R, 474R) MTD-946-0478A
...
xx
CONTROL CABLE 55" (465R, 468R, 475R, 478R) MTD-946-0479A
...
xx
CONTROL CABLE (466R, 469R, 476R, 479R) MTD-946-0477A
...
12
Upper Handle MTD-749-0437
...
13
OPE GUIDE BOLT MTD-710-0842
...
14
Instruction Label-Handle MTD-777-5776
...
15
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
18
Cable Tie MTD-725-0157
...
19
Lock Wash. 5/16" I.D. MTD-936-0119
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Lower Handle MTD-749-0907B
...
22
HUB CAP MTD-10647
...
23
SCREW #12-14 x .500 (Used w/Ref. #22) MTD-710-0748
...
xx
SPRING WASHER BELL MTD-736-0270
...
25
BAG HANDLE BLACK (Models 464R and 469R only) MTD-731-0801
...
26
Rear Grass Catcher Frame (Models 464R and 469R only) MTD-749-0764A-0637
...
27
CATCHER FRAME (Models 464R and 469R only) MTD-764-0412-0637
...
28
INSULATOR-SPARK PLUG MTD-735-0639
...
29
Engine MTD-NA
...
30
HALF COVER MTD-731-0617A
...
31
Control Cover Half-Lower MTD-753-0833
...
32
Drive Control MTD-731-0620A
...
33
CLUTCH CABLE MTD-746-0651
...
34
Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
35
CABLE MOUNTING CAP MTD-731-0619
...
36
Hardtop Bag Cover (Models 474R and 479R only) MTD-631-0003
...
38
Grass Bag (Models 474R and 479R only) MTD-964-0252
...
39
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
40
CABLE CLAMP (Models 474R and 479R only) MTD-12894
...
41
Fl-Wash. .281" I.D. x .62" (Models 474R and 479R only) MTD-736-0463
...
42
HEX NUT 1/4-20 MTD-912-0287
...
43
Front Catcher Frame (Models 474R and 479R only) MTD-764-0411-0637
...
44
REAR CATCHER FRAME (Models 474R and 479R only) MTD-749-0736
...
45
CHUTE DEFLECTOR MTD-931-0859A
...
46
DEFLECTOR PLUG MTD-731-0970B
...
47
EXTRUSION SEAL MTD-731-0858
...
48
Grip MTD-720-0223
...
49
SPRING LEVER MTD-732-0580
...
50
TORSION SPRING (RH) MTD-732-0578
...
51
TORSION SPRING MTD-732-0577
...
52
Spacer, .260 x .372 x 1.030 MTD-750-0566A
...
53
BRACKET ASSEMBLY MTD-12297
...
54
HINGE PIN MTD-747-0698B
...
55
PUSH NUT MTD-726-0106
...
56
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
57
L-Wash. 3/8" I.D.* MTD-736-0169
...
58
Hex Jam Nut 3/8-24 Thd MTD-712-0711
...
59
HEX LOCK NUT 3/8-2 MTD-912-0296
...
60
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
61
Hex Wash. Hd. Tap Scr. 1/4-20 x 1. 5 " Lg . MTD-710-0778
...
62
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
63
21" Deck Ass'y. MTD-16997
...
64
BRACKET ASSEMBLY MTD-12296B-0637
...
65
SCREW 1/4-14 x .625 MTD-710-0892
...
66
HEX SCREW 3/8 x 7/8 MTD-910-1006
...
67
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
68
Spacer.385" I.D. MTD-750-0526
...
69
SERRATED WASHER MTD-936-0409
...
70
Wave Washer MTD-736-0447
...
71
SERRATED HALF PULLEY MTD-756-0502
...
72
21" Blade MTD-942-0621
...
73
KIT-BLADE MOUNTING MTD-753-0525
...
74
Hex Bolt 7/16-20 x 1.5" Lg. (Grade 5) MTD-710-0757
...
75
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
76
L-Wash. 1/4" I.D. MTD-936-0329
...
77
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
78
Hex Bolt 1/4-20 x .75" Lg. MTD-710-3015
...
79
BAFFLE-BELT MTD-17013
...
80
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
81
BAFFLE-RR-PANEL MTD-17006
...
82
PLUG-CORNER MTD-731-0931
...
83
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
84
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
85
Rear Flap 17.30" Lg. MTD-731-0669
...
86
BAFFLE-RR-CHUTE MTD-17008-0637
...
87
RETAINING STRIP MTD-14847
...
88
Hub Cap MTD-731-0981C
...
89
Spring - Nylon MTD-10622B
...
90
PAWL - (LH) MTD-948-0188B
...
91
NUT (Used w/Ref. #88) MTD-712-0189
...
92
Hex Ins. L-Nut 1/4-20 Thd. (Used w/Ref. #22) MTD-712-0324
...
93
Cotter Pin 1/8" Dia. MTD-714-0115
...
94
Wheel Ratchet MTD-948-0318
...
95
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
96
Wheel Ass'y. Comp.-Rear MTD-NA
...
xx
WHEEL ASSEMBLY W/TIRE-T-TREAD MTD-734-1412
...
xx
T TREAD MTD-734-1260
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
97
Flange Ball bearing 1/2" I.D. MTD-NA
...
xx
BALL BEARING MTD-941-0180
...
xx
BALL BEARING MTD-941-0180
...
xx
BEARING MTD-741-0486
...
98
SHOULDER SPACER MTD-750-0624
...
99
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
100
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
101
SPRING WASHER BELL (Used w/Ref. #88) MTD-736-0270
...
102
COVER-CHAI MTD-17053
...
103
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
104
Fl-Wash. .531" I.D. x .93" MTD-736-0160
...
105
REAR SHAFT ASSEMBLY MTD-738-0719
...
106
Hex Flange Bearing MTD-741-0522
...
107
CHAIN AXLE ASS'. MTD-17009
...
108
Fl-Wash. .510" I.D. x 1.0" MTD-736-0326
...
109
Spacer. 513" I.D. MTD-748-0190
...
110
EXTENSION SPRING MTD-732-0481
...
111
Spacer.325" I.D. MTD-950-0589
...
112
V - Belt MTD-954-0346
...
114
Internal Cotter Pin 5/16n Dia. MTD-714-0104
...
115
#48 CHAIN 1/2 PI MTD-713-0353
...
116
TRANSMISSION (See Breakdown) MTD-917-0417B
...
117
Hex Screw, 1/4-14 x 0.625" (Models 474R and 479R only) MTD-710-0896
...
118
Hex AB-Tap Scr. #12 x 1.25" Lg. (Models 464R and 469R only) MTD-710-1025
...
119
GRASSBAG (Models 464R and 469R only) MTD-764-0246
...
120
BRACKET-CA (464R, 474R) MTD-16703
...
121
Mounting Brkt. (464R, 474R) MTD-16704
...
122
Truss Mach. Scr. #10 x .5" Lg. (464R, 474R) MTD-710-0473
...
123
L-Wash. #10 I.D. (464R, 474R) MTD-736-0722
...
124
RIVET (B&S) MTD-728-0171
...
125
BRACKET-CA (466R, 469R, 476R, 479R) MTD-14924
...
126
CABLE CLAMP (466R, 469R, 476R, 479R) MTD-12894
...
127
Hex B-Tap Scr. #10 x .38" (466R, 469R, 476R, 479R) MTD-910-0429
...
128
Hex Wash. Hd. Self-Tap Scr. (466R, 469R, 476R, 479R) MTD-710-0651
...
129
CLIP-CASING (466R, 469R. 476R. 479R) MTD-751-0463
...
130
SPRING WASHER BELL MTD-736-0270

Parts

...
...

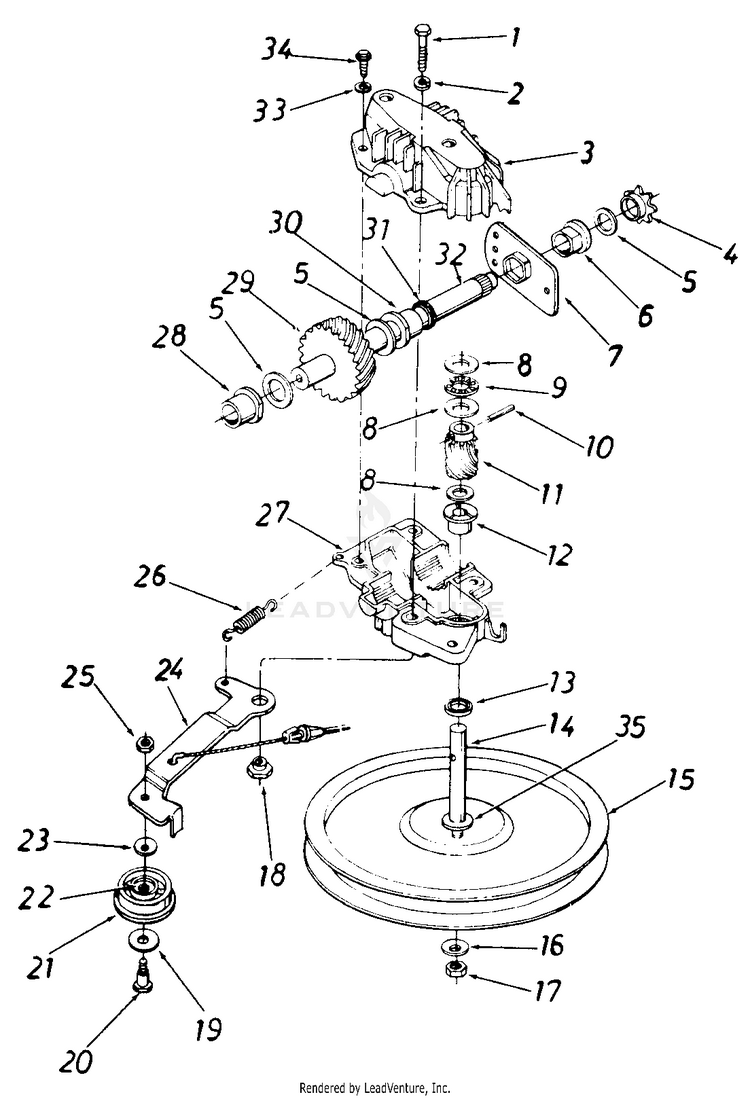

1
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
HOUSING HALF UPPER MTD-717-0418A
...
4
SPROCKET-7T MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg. 631" I.D. MTD-741-0413
...
7
CUP BEARING HEX MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x 70n 0 D MTD-736-0314
...
9
Thrust Bearing .375" I.D. x-.812" O.D. MTD-741-0479
...
10
SPRING PIN MTD-715-0152
...
11
WORM GEAR MTD-717-0420
...
12
Flange Bearing MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
14
KIT-TRAN PUL SHFT MTD-753-0448
...
15
PULLEY (Not Part of Transmission Complete) MTD-756-0330A
...
16
SPRING WASHER BELL (Not Part of Transmission Complete) MTD-736-0270
...
17
Jam Nut, 1/4-28, LH (Not Part of Transmission Complete) MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .1 70 (Not Part of Transmission Complete) MTD-738-0440
...
19
Fl-Wash. .390" I.D. x 1.0" (Not Part of Transmission Complete) MTD-736-0344
...
20
SHOULDER SCREW (Not Part of Transmission Complete) MTD-938-0691
...
21
Fl-Idler Plastic 1.50" Dia. x .48 (Not Part of Transmission Complete) MTD-753-0518
...
22
NEEDLE BEARING (Not Part of Transmission Complete) MTD-741-0482
...
23
SPRING WASHER BELL (Not Part of Transmission Complete) MTD-736-0270
...
24
IDLER BRACKET ASSEMBLY (Not Part of Transmission Complete) MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. (Not Part of Transmission Complete) MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. (Not Part of Transmission Complete) MTD-732-0357A
...
27
HOUSING HALF-LOWER MTD-717-0419
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
SHAFT & GEAR AS MTD-717-0422
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
SHAFT & GEAR AS MTD-738-0607
...
33
L-Wash. #10 I.D. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD (Not Part of Transmission Complete) MTD-736-0410
...
xx
TRANSMISSION MTD-917-0417B

Parts

...
...

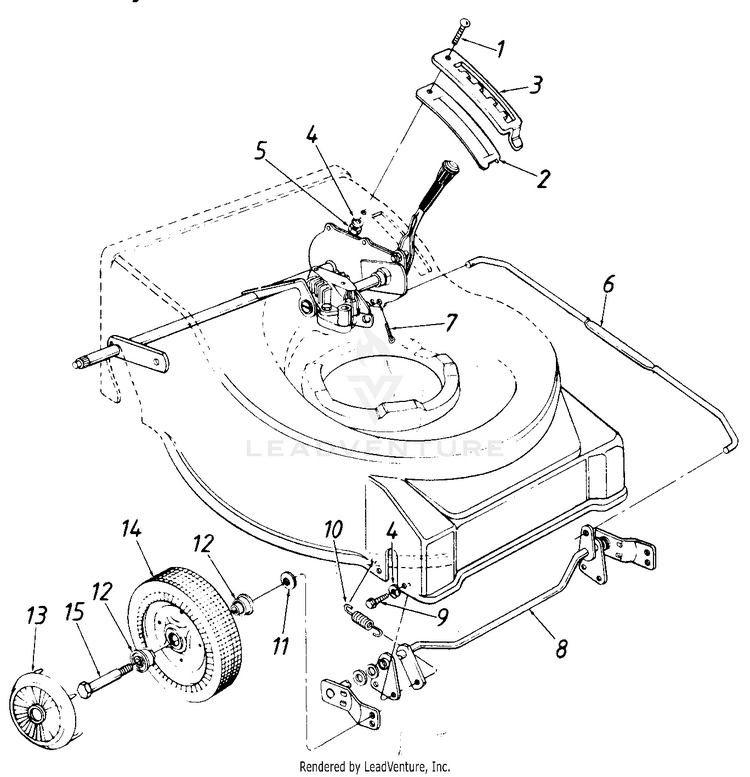

1
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
2
SEAL-HGT A MTD-721-0216
...
3
PLATE-HGT MTD-17323
...
4
L-Wash. 1/4" I.D. MTD-936-0329
...
5
HEX NUT 1/4-20 MTD-912-0287
...
6
ROD-HGT ADJ MTD-747-0699
...
7
Cotter Pin 3/32" Dia. MTD-714-0507
...
8
Front Axle Ass'y. MTD-17022-0637
...
9
Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
10
EXTENSION SPRING 2 89" LG. MTD-732-0589
...
11
Bell-Wash. .380" I.D. x .88" O.D. MTD-736-0105
...
12
BALL BEARING MTD-941-0180
...
13
Hub Cap (See Below) MTD-NA
...
xx
HUB CAP MTD-731-0124
...
xx
HUB CAP MTD-731-0254
...
xx
HUB CAP-BLACK MTD-731-0354
...
xx
GRAY MTD-731-0355
...
14
Wheel Ass'y. Comp.-Front MTD-NA
...
xx
"T" Tread (7 x 1.75) MTD-734-1264
...
xx
WHEEL ASSEMBLY W/TIRE-T-TREAD MTD-734-1412
...
xx
T TREAD MTD-734-1260
...
xx
Wheels - Front (Use 731-0975 Hub Cap) MTD-753-08093
...
15
Shld. Bolt .498" Dia. x 1.45" MTD-738-0102
...
...
...
...
...
