Central Park Mdl 127-374-046 Self-Propelled Mower

Model: Central Park Mdl 127-374-046

Save
 Part Not Listed?Part Not Listed?

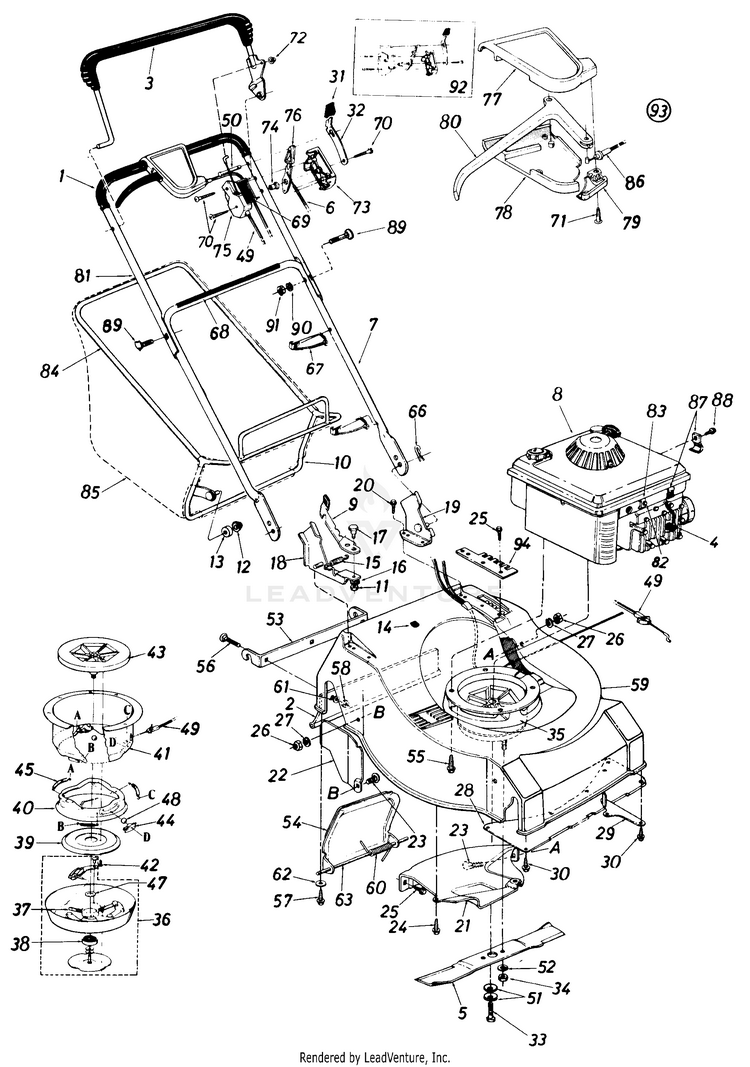

product name

Parts

...
...
1
Grip MTD-718-0145
...
2
FLAP ASSEMBLY-RR MTD-731-0585
...
3
BAIL (LH) MTD-731-0609
...
4
INSULATOR-SPARK PLUG MTD-735-0639
...
5
22" BLADE MTD-742-0222
...
6
Throttle Wire-58" Lg. MTD-946-0674A
...
7
Lower Handle MTD-749-0907B
...
xx
Lower Handle MTD-749-0907B
...
8
Engine MTD-NA
...
9
CATCHER LOCK LEVER W/ KNOB MTD-14845
...
10
CATCHER LOWER FRAME MTD-14582
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Push Nut 3/8" Rod MTD-726-0100
...
13
ROLLER-PLASTIC MTD-731-0430
...
14
PLUG MTD-731-0564
...
15
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
16
Lock Wash. 5/16" I.D. MTD-936-0119
...
17
Shoulder Bolt MTD-938-0155
...
18
BRACKET-HA MTD-14593
...
19
BRACKET-HA MTD-14597
...
20
Screw, Hex MTD-710-0788
...
21
Rear Baffle-L.H. MTD-15248
...
22
Side Baffle MTD-15254
...
23
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
24
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
25
TAP SCREW MTD-710-0782
...
26
HEX NUT 1/4-20 MTD-912-0287
...
27
L-Wash. 1/4" I.D. MTD-936-0329
...
28
Front Cover Plate MTD-15668
...
29
Left Strap MTD-15253
...
30
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
31
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
32
SPRING-LOCKOUT MTD-732-0401
...
33
Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8) MTD-710-0818
...
34
Hex Nut 3/8-24 Thd. MTD-712-0241
...
35
BLADE BRAKE CLUTCH ASS'Y. COMP. MTD-717-0485
...
36
CLUTCH BLADE HOUSING ASS'Y. MTD-14300
...
37
SPRING MTD-732-0396
...
38
BALL BEARING MTD-941-0600
...
39
CLUTCH CONE MTD-14304
...
40
Brake Cup Cone MTD-14305
...
41
HOUSING-CL MTD-14307
...
42
Hex TT-Tap L-Scr. 1/4-20 x .75" Lg. MTD-710-0875
...
43
ADAPTER-FAN MTD-719-0256
...
44
BALL-BLOCK MTD-731-0520
...
45
EXTENSION SPRING MTD-732-0397
...
47
FLAT WASHER .687 x 1.060 x .032 MTD-736-0333
...
48
STEEL BALL MTD-741-0326
...
xx
STEEL BALL MTD-741-0326
...
49
CLUTCH CABLE (Incl. Ref. No. 72) MTD-946-0405
...
50
LOCKING PIN MTD-731-0607
...
51
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
52
L-Wash. 3/8" I.D. MTD-736-0169
...
53
ADAPTER-GR MTD-14012
...
54
Chute Door MTD-15245
...
55
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
56
SCREW 1/4-20 x 1 GR5 MTD-710-0932A
...
57
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
58
Sems Nut 1/4-20 Thd. MTD-712-0271
...
59
22" Deck Ass'y. MTD-719-0253
...
60
SPRING MTD-732-0408
...
61
Fl-Wash. .281" I.D. x .73" O.D. x .063 MTD-736-0173
...
62
Fl-Wash. .285" I.D. x 1.25" O.D. x .060 MTD-736-0211
...
63
ROD .25" DIA. x 8.25 LG. MTD-747-0353
...
66
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
67
Cable Tie MTD-725-0157
...
68
Ins{ruction Label-Handle MTD-777-5775
...
69
Control Label-Throttle MTD-777-5772
...
70
Truss Mach. B-Tap Scr. #12 x 1.50" Lg. MTD-710-0796
...
71
Flat C-Sunk AB-Tap Scr. #10 x.75" Lg. MTD-710-0841
...
72
PUSH NUT MTD-726-0111
...
73
PANEL MTD-731-0817
...
74
CONROL DISC PIN MTD-731-0524
...
75
CIUTCH PANEL HALF MTD-731-0816
...
76
Throttle Control Lever MTD-931-0972
...
77
HALF COVER MTD-731-0617A
...
78
Control Cover Half-Lower MTD-753-0833
...
79
CABLE MOUNTING CAP MTD-731-0619
...
80
Drive Control MTD-731-0620A
...
81
Upper Handle (Chrome) MTD-749-0437
...
xx
Upper Handle MTD-749-0439E-0637
...
82
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
83
CASING CLAMP MTD-751-0442
...
84
FRAME-CATCHER-UPR MTD-749-0278
...
85
GRASSBAG MTD-764-0171
...
xx
GRASS BAA MTD-764-0170
...
86
CABLE-CLUTCH MTD-746-0463
...
87
CABLE CLAMP MTD-12894
...
88
Hex B-Tap Scr. #10 x .38" Lg. MTD-710-0425
...
89
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
90
L-Wash. 5/16" I.D. MTD-736-0115
...
91
HEX NUT 5/16-18 MTD-712-3010
...
92
KIT-THROTTLE CONTROL MTD-753-0431
...
93
KIT-CLUTCH CONTROL MTD-753-0362
...
94
Reinforcing Brkt. MTD-15879
...
xx
Hardware Pack MTD-8374-000-6

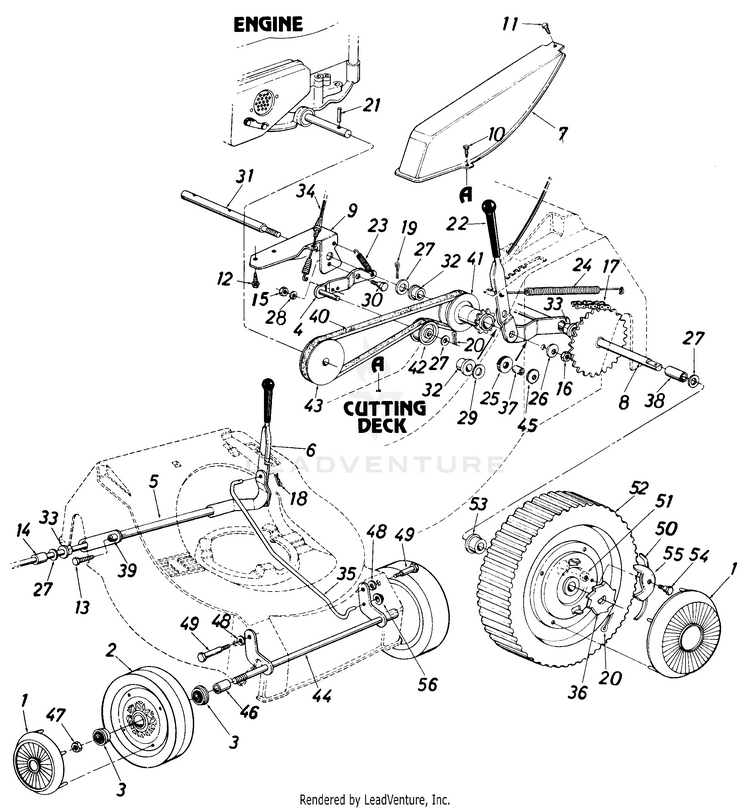

Parts

...
...
1
Hub Cap MTD-NA
...
2
WHEEL ASSEMBLY W/TIRE MTD-734-0924
...
3
BALL BEARING MTD-941-0180
...
4
BRACKET AS MTD-13415
...
5
Axle Ass'y. MTD-15244
...
6
HANDLE-HT MTD-15246
...
7
Belt Cover MTD-15247
...
8
SHAFT ASSEMBLY MTD-15249
...
9
Bracket-Pulley Shaft MTD-15250
...
10
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
11
HEX SCREW #10-16 x 0.500 MTD-710-0456
...
12
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
13
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
14
SLEEVE MTD-711-0500
...
15
HEX NUT 1/4-20 MTD-912-0287
...
16
Jam Nut, 3/8-16 MTD-912-3008
...
17
#48 Chain MTD-713-0289
...
18
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
19
Cotter Pin 3/32" Dia. x 1.00" Lg.* MTD-714-0111
...
20
Cot Pin 1/8" Dia. x 1.00" Lg.* MTD-714-0115
...
21
SPIROL PIN MTD-715-0144
...
22
GRIP MTD-720-0143
...
23
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
24
Spring, extension, .50 Od x 4.35 MTD-732-0428B
...
25
RUBBER WASHER MTD-735-0144
...
26
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
27
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
29
Fl-Wash. .390" I.D. x 1.00" O.D. MTD-736-0344
...
30
SHOULDER SCREW MTD-938-0255
...
31
SHAFT-PULLEY MTD-738-0501
...
32
Flange Brg. .506" I.D. Plastic MTD-741-0248
...
33
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
34
CABLE-CLUTCH MTD-746-0463
...
35
Linkage Rod .38" Dia. MTD-747-0351
...
36
RACHET-WHEEL MTD-748-0187
...
37
SPACER MTD-950-0503
...
38
SPACER MTD-750-0506
...
39
Spacer .385" I.D. x .503" O.D. x.270" Lg. MTD-750-0526
...
40
V-BELT 1/2 x 33 MTD-754-0252
...
41
PULLEY W/S MTD-756-0191
...
42
FLAT IDLER PULLEY MTD-756-0360
...
43
PULLEY MTD-756-0384
...
44
Front Axle Ass'y. MTD-10662
...
45
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
46
SLEEVE MTD-711-0313
...
47
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
48
LOCK WASHER 3/8 X.56 OD MTD-736-0221
...
49
SHOULDER SCREW MTD-738-0149
...
50
Spring - Nylon MTD-10622B
...
51
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
52
Wheel Ass'y. Comp. 9.25 x 1.75 Rear MTD-734-1051
...
53
BALL BEARING MTD-941-0180
...
54
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
55
PAWL - (LH) MTD-948-0188B
...
56
Cap Speed Nut 5/16" Rod MTD-726-0135
...
...
...
...
...
