Central Park 122-478R331 (0595047) (1992) Self-Propelled Mower

Model: 122-478R331 (0595047) (1992)

Save
 Part Not Listed?Part Not Listed?
product name

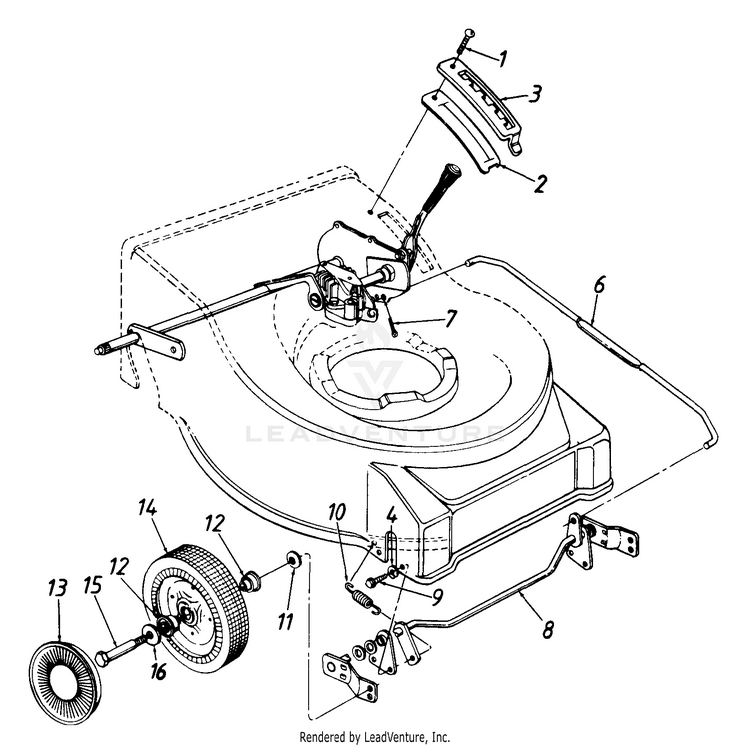

Deck And Front Wheel Assembly

...
...
1
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
2
SEAL-HGT A MTD-721-0216
...
3
PLATE-HGT MTD-17323
...
4
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
6
ROD-HGT ADJ MTD-747-0699
...
7
Cotter Pin 3/32" Dia. MTD-714-0507
...
8
Front Axle Ass'y. MTD-17022-0637
...
9
Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
10
EXTENSION SPRING 2 89" LG. MTD-732-0589
...
11
Bell-Wash..380" I.D. x .88" MTD-736-0105
...
12
Flange Ball Bearing 1/2" I.D. MTD-NA
...
13
Hub Cap (See Below) MTD-NA
...
xx
Hub Cap MTD-731-0981C
...
xx
Hub Cap (Beige) MTD-731-0982C
...
xx
HUB CAP MTD-920-0249
...
xx
HUB CAP-BLACK PLAS MTD-720-0251
...
xx
HUB CAP RED (1-3/8" DIA.) MTD-731-0342
...
14
Wheel Ass'y. Comp.- Front MTD-NA
...
xx
8" x 1.75" Bar Tread Not Required MTD-634-0020
...
xx
8" x 1.75" "T" Tread MTD-734-1268
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Wheels - Front MTD-753-08093
...
xx
8" x 2" "S" Wave MTD-734-1517B
...
xx
BALL BEARING MTD-941-0180
...
xx
BALL BEARING MTD-941-0180
...
xx
BALL BEARING MTD-941-0180
...
15
Shld. Bolt .498" Dia. x 1.45" MTD-738-0102
...
16
Wave Wash..53" I.D. x .78" MTD-736-0232

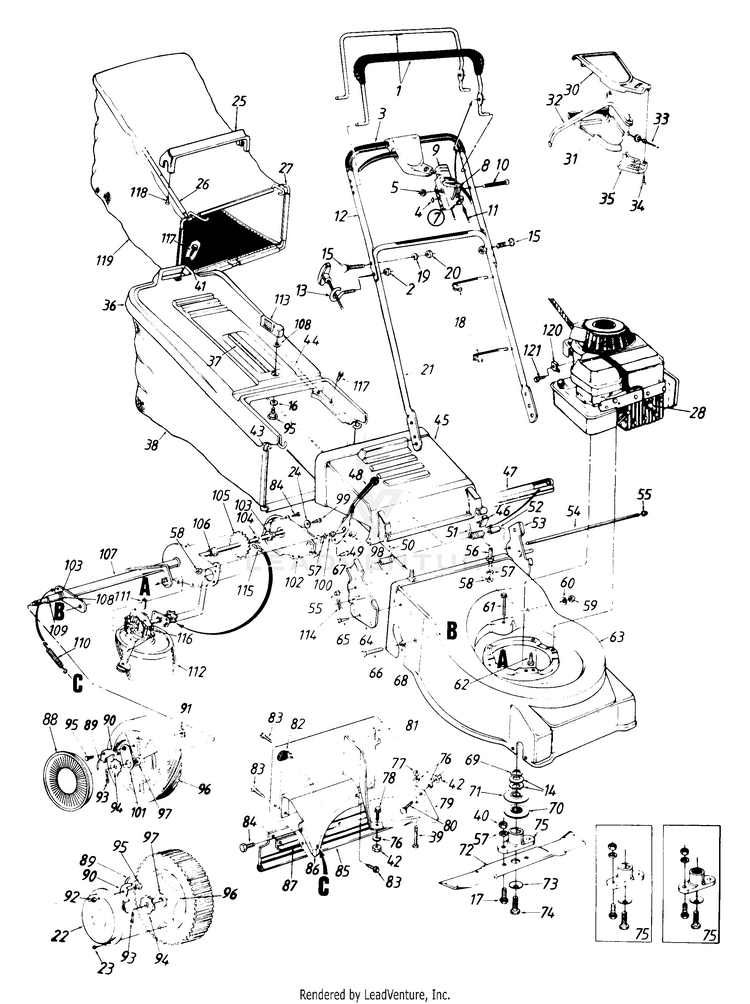

Handle And Engine Assembly

...
...
1
CONTROL HANDLE ASSEMBLY MTD-747-0748
...
2
Hex Lock Nut 1/4-20 Thd. MTD-712-0324
...
3
FOAM GRIP - 9" (Optional) MTD-720-0294A
...
4
Spr. Wash..66" I.D. MTD-936-0501
...
5
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
6
Throttle Cable - 55" (B&S) MTD-946-0671A
...
6
Throttle Cable - 45" (Tecumseh) MTD-946-1115
...
7
Throttle Box Comp. (Incl. Ref. 3, 4, 5, 24, 25) MTD-811-0185
...
8
Throttle Lever MTD-946-0876
...
9
Throttle Body MTD-946-0875
...
10
Oval C-Sunk Scr. MTD-710-0605
...
11
Control Cable - 40.5" (B&S) MTD-946-0554
...
11
CONTROL CABLE 55" MTD-946-0555
...
12
Upper Handle MTD-749-0439E-0637
...
13
Rope Guide MTD-710-1205
...
14
BELL WASHER (Used w/Keyed Adapter) MTD-736-0473
...
14
BELL-WASH 1.01" I.D. (Used w/Splined Adapter) No Longer Available MTD-736-0450
...
15
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 No Longer Available MTD-710-0671
...
16
Bowed Washer MTD-936-0286
...
17
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055
...
18
Cable Tie MTD-725-0157
...
19
L-Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
20
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
21
Lower Handle MTD-749-0907B
...
22
HUB CAP MTD-10647
...
23
SCREW #12-14 x .500 (Used w/Ref. #22) MTD-710-0748
...
24
SPRING WASHER BELL MTD-736-0270
...
25
BAG HANDLE BLACK For models 460R thru 468R Only. MTD-731-0801
...
26
Rear Catcher Frame For models 460R thru 468R Only. MTD-749-0764A-0637
...
27
CATCHER FRAME For models 460R thru 468R Only. MTD-764-0412-0637
...
28
INSULATOR-SPARK PLUG No Longer Available MTD-735-0639
...
?29
Engine MTD-NA
...
30
Control Cover Half - Upper MTD-753-0833
...
31
Control Cover Half - Lower MTD-753-0833
...
32
Control Lever MTD-731-0620A
...
33
Drive Cable - 51" Lg. MTD-946-0711B
...
34
Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
35
Cable Mtg. Cap MTD-753-0833
...
36
Hardtop Bag Cover For models 470R thru 478R Only. MTD-631-0003
...
37
Hardtop Handle For models 470R thru 478R Only. MTD-631-0003
...
38
Grass Bag For models 470R thru 478R Only. MTD-964-0252
...
39
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
40
Hex Nut 3/8-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0241
...
?41
Fl-Wash. .280" I.D. x .620" O.D. For models 470R thru 478R Only. MTD-736-0463
...
42
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
43
Front Catcher Frame For models 470R thru 478R Only. MTD-764-0411-0637
...
44
REAR CATCHER FRAME No Longer Available For models 470R thru 478R Only. MTD-749-0736A
...
45
CHUTE DEFLECTOR MTD-931-0859A
...
46
DEFLECTOR PLUG MTD-731-0970B
...
47
EXTRUSION SEAL MTD-731-0858
...
48
Grip MTD-720-0223
...
49
SPRING LEVER MTD-732-0580
...
50
TORSION SPRING (RH) MTD-732-0578B
...
51
TORSION SPRING No Longer Available MTD-732-0577A
...
52
Spacer 255" I.D. MTD-750-0566A
...
53
BRACKET ASSEMBLY No Longer Available MTD-12297A
...
54
HINGE PIN MTD-747-0698B
...
55
Cap Speed Nut MTD-926-0106
...
56
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
57
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169
...
58
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
59
HEX LOCK NUT 3/8-2 MTD-912-0296
...
60
Bell-Wash..38" I.D. x .88" MTD-736-0105
...
61
Hex Wash. Hd. Tap Scr. 1/4-20 x 1.5" Lg. MTD-710-0778
...
62
Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
63
DECK ASSEMBLY-21" *CHOOSE COLOR WHEN ORDERING* MTD-16997B
...
64
BRACKET ASSEMBLY MTD-12296B-0637
...
65
HEX SCREW L-WASH HD MTD-910-0892
...
66
HEX SCREW 3/8 x 7/8 MTD-910-1006
...
67
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
68
SPACER MTD-950-0736
...
69
ENGINE CRANK SPACER (Keyed) MTD-748-0358
...
69
SPACER-CRANKSHAFT (Splined) No Longer Available MTD-748-0332
...
70
HALF PULLEY-LOWER (Keyed) No Longer Available MTD-756-0961
...
71
UPPER HALF PULLEY (Keyed) MTD-756-0962
...
71
HALF SERRATED PULLEY (Used w/Splined Adapter) MTD-956-0502
...
72
21" Blade MTD-942-0621
...
73
Bell-Wash. .396" I.D. x 1.14" O.D. (Used w/Keyed Adapter) MTD-736-0452
...
73
BELL WASHER (Used w/Splined Adapter) MTD-936-0453
...
74
Hex Bolt 3/8-24 x 1.5" Lg. (Used w/Keyed Adapter) MTD-710-1044
...
74
Hex Bolt 7/16-20 x 1.5" Lg. (Used w/Splined Adapter) MTD-710-0757
...
75
Blade Adapter Kit (Keyed) MTD-753-0484
...
75
SPLINED BLADE ADAPTER KIT (Splined) MTD-753-0485
...
76
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
77
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
78
Hex Bolt 1/4-20 x .85" Lg. MTD-710-3015
...
79
BAFFLE-BELT No Longer Available MTD-17013
...
80
CARRIAGE BOLT 1/4-20X.50" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-05177
...
81
BAFFLE-RR-PANEL No Longer Available MTD-17006
...
82
PLUG-CORNER No Longer Available MTD-731-0931
...
83
Torx Mach. AB-Tap Scr. 1/4 x 62" Lg MTD-710-1017
...
84
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
85
Rear Flap MTD-731-0669
...
86
BAFFLE-RR-CHUTE MTD-17008-0637
...
87
RETAINING STRIP No Longer Available MTD-14847
...
88
Hub Cap Gray (5-1/2" Dia) MTD-731-0981C
...
88
Hub Cap Beige (5-1/2" Dia.) MTD-731-0982C
...
88
HUB CAP MTD-920-0249
...
88
HUB CAP-BLACK PLAS No Longer Available MTD-720-0251
...
88
HUB CAP RED (1-3/8" DIA.) No Longer Available MTD-731-0342
...
89
Spring - Nylon MTD-10622B
...
90
PAWL - (LH) MTD-948-0188B
...
91
Weld Top L-Nut 1/4-20 Thd. (Used w/Ref. #88) MTD-712-0414
...
92
Hex Ins. L-Nut 1/4-20 Thd. (Used w/Ref. #22) MTD-712-0324
...
93
Cotter Pin 1/8" Dia. x 1" Lg. MTD-714-0115
...
94
Ratchet Wheel 1.62" O.D. MTD-948-0318
...
95
BOLT, SHOULDER, 1/4-20 x 2.65 LG No Longer Available MTD-738-0137
...
96
Wheel Ass'y. Comp.- Rear MTD-NA
...
96
8" x 1.75" Bar Tread Not Required MTD-634-0020
...
96
WHEEL ASSEMBLY W/TIRE-T-TREAD No Longer Available MTD-734-1412
...
96
WHEEL ASSEMBLY W/TIRE-T-TREAD No Longer Available MTD-734-1412
...
96
8" x 2" "S" Wave (Beige) MTD-734-1826
...
96
8" x 2" "S" Wave (Silver) Not Required MTD-734-1826
...
97
Bearing 1/2" I.D. MTD-NA
...
97
BALL BEARING MTD-941-0180
...
97
BEARING No Longer Available MTD-741-0486B
...
97
BEARING No Longer Available MTD-741-0486B
...
98
SHOULDER SPACER MTD-750-0624
...
99
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
100
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
101
Pawl Plate MTD-16855
...
102
COVER-CHAIN *CHOOSE COLOR WHEN ORDERING* MTD-17053A
...
103
Hex Flange Brg..506" I.D. MTD-741-0324A
...
104
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
105
SHAFT ASSEMBLY-REAR-20T MTD-938-0719A
...
106
Hex Flange Bearing MTD-741-0522
...
107
CHAIN AXLE ASS'. No Longer Available MTD-17009
...
108
Internal L-Wash. 1/4" I.D. MTD-736-0498
...
109
Spacer 513" I.D. MTD-748-0190
...
110
EXTENSION SPRING MTD-932-0481
...
111
Spacer.325" I.D. MTD-950-0589
...
112
V-Belt MTD-954-0346
...
113
LOCKING KNOB MTD-920-0224
...
114
Hairpin Clip MTD-714-0104
...
115
#48 CHAIN 1/2 PITCH MTD-913-0353
...
116
TRANSMISSION MTD-917-0417B
...
117
HEX SCREW L-WASH HD For models 470R thru 478R Only. MTD-910-0892
...
118
Hex AB-Tap Scr. #12 x 1.25" Lg. For models 460R thru 468R Only. MTD-710-1025
...
119
GRASSBAG No Longer Available For models 460R thru 468R Only. MTD-764-0246
...
120
Cable Clamp (B&S) New Part MTD-BS-690798
...
121
Hex Self-Tap Scr. #10-32 x 62" Lg. (B&S) New Part MTD-710-1237

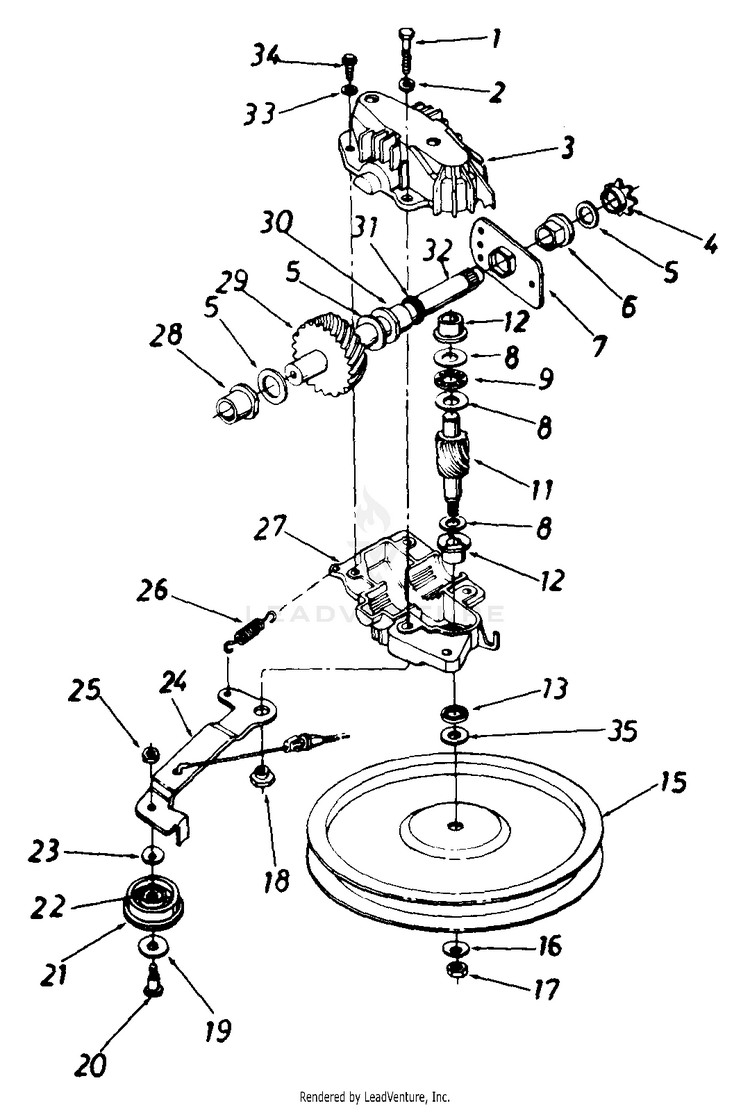

Idler Bracket Assembly

...
...
1
Hex Bolt 1/4-20 x 1.25" Lg. w/Patch MTD-710-1062
...
2
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
3
HOUSING HALF UPPER MTD-717-0418A
...
4
SPROCKET-7T MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg..631" I.D. MTD-741-0413
...
7
CUP BEARING HEX MTD-16500A-0637
...
8
Thrust Wash..382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .315" I.D. x .812" O.D, MTD-741-0479
...
11
PINION SHAFT 11T MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
15
PULLEY Not Part of Transmission Complete MTD-756-0330A
...
16
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
17
Jam Nut, 1/4-28, LH Not Part of Transmission Complete MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170" MTD-738-0440
...
19
Fl-Wash..390" I.D. x 1.0" Not Part of Transmission Complete MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" Not Part of Transmission Complete MTD-738-0826
...
21
Fl-ldler Plastic 1.50" Dia. Not Part of Transmission Complete MTD-956-0558
...
22
Needle Brg..375" x .31 Not Part of Transmission Complete MTD-741-0556
...
23
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
24
IDLER BRACKET ASSEMBLY Not Part of Transmission Complete MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. Not Part of Transmission Complete MTD-712-0138
...
26
Extension Spring 1.12" Lg. Not Part of Transmission Complete MTD-732-0357A
...
27
HOUSING HALF-LOWER MTD-717-0419A
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
SHAFT & GEAR AS MTD-717-0422
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
SHAFT & GEAR AS MTD-738-0607
...
33
L-Wash. #10 I.D. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD Not Part of Transmission Complete MTD-736-0410
...
xx
Transmission Comp. MTD-714-0417B
...
...
...
...
...
