Central Park 122-118R331 (0595055) (1992) Self-Propelled Mower

Model: 122-118R331 (0595055) (1992)

Save
 Part Not Listed?Part Not Listed?
product name

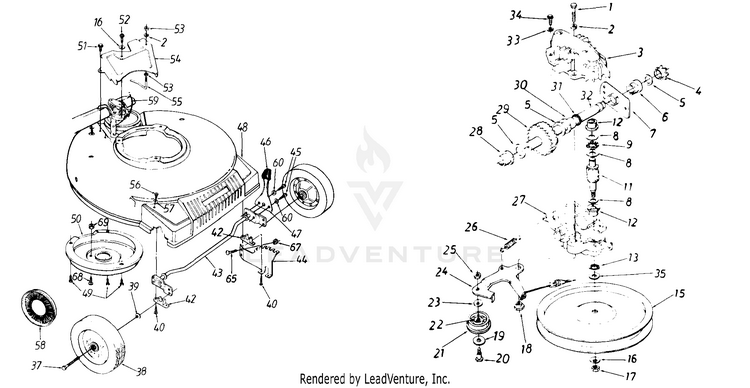

Front Wheel Assembly And Transmission Complete

...
...
1
Hex Patch Bolt 1/4-20 x 1.25" Part of Transmission Complete, Ref. No. 36 MTD-710-1062
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
HOUSING HALF UPPER Part of Transmission Complete, Ref. No. 36 MTD-717-0418A
...
4
SPROCKET-7T Part of Transmission Complete, Ref. No. 36 MTD-713-0400
...
5
FLAT WASHER Part of Transmission Complete, Ref. No. 36 MTD-936-0336
...
6
Hex Flange Brg..631" I.D. Part of Transmission Complete, Ref. No. 36 MTD-741-0413
...
7
CUP BEARING HEX Part of Transmission Complete, Ref. No. 36 MTD-16500A-0637
...
8
Thrust Wash..382" I.D. x .70" O.D. Part of Transmission Complete, Ref. No. 36 MTD-736-0314
...
9
Thrust Bearing .3/5" I.D. x .812" O.D. Part of Transmission Complete, Ref. No. 36 MTD-741-0479
...
11
PINION SHAFT 11T Part of Transmission Complete, Ref. No. 36 MTD-917-1216
...
12
Flange Bearing Part of Transmission Complete, Ref. No. 36 MTD-748-0208A
...
13
OIL SEAL -.375 ID Part of Transmission Complete, Ref. No. 36 MTD-721-0212
...
15
PULLEY MTD-756-0330A
...
16
SPRING WASHER BELL MTD-736-0270
...
17
Jam Nut, 1/4-28, LH MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 MTD-738-0440
...
19
Fl-Wash..390" l.D. x 1.0" MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" MTD-738-0826
...
21
Fl-ldler Plastic 1.50" Dia. MTD-956-0558
...
22
Needle Brg..375" x .31 MTD-741-0556
...
23
UNKNOWN MTD-NA
...
24
IDLER BRACKET ASSEMBLY MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. MTD-712-0138
...
26
Extension Spring 1.12" Lg. MTD-732-0357A
...
27
Lower Hsg. Half Part of Transmission Complete, Ref. No. 36 MTD-717-04194
...
28
Flange Bearing .566 ID Part of Transmission Complete, Ref. No. 36 MTD-941-0415
...
29
SHAFT & GEAR AS Part of Transmission Complete, Ref. No. 36 MTD-717-0422A
...
30
Flange Bearing .629 Dia. Part of Transmission Complete, Ref. No. 36 MTD-741-0414
...
31
Oil Seal .625 Dia. Part of Transmission Complete, Ref. No. 36 MTD-721-0213
...
32
SHAFT & GEAR AS Part of Transmission Complete, Ref. No. 36 MTD-738-0607A
...
33
L-Wash. #10 I.D. Part of Transmission Complete, Ref. No. 36 MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. Part of Transmission Complete, Ref. No. 36 MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD MTD-736-0410
...
?36
TRANSMISSION MTD-917-0417B
...
37
Front Axle Bolt MTD-738-0102
...
38
Wheel Ass'y. Comp. MTD-NA
...
39
Bell-Wash..380" I.D. x .88 MTD-736-0105
...
40
Hex Wash. Hd. Scr. 1/4 x 1" Lg. MTD-710-1241
...
42
Block Bushing MTD-741-0492A
...
43
AXLE ASSEMBLY- MTD-17733
...
44
HEIGHT ADJUSTMENT BRACKET MTD-782-0516
...
?45
Hex TT-Tap Scr. 1/4-20 x .38" MTD-710-0653
...
46
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
47
LEVER-SPRING MTD-732-0639
...
48
FRONT END MTD-731-1281
...
49
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
50
BELT COVER MTD-782-7522
...
51
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599
...
52
Hex Wash. Hd. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
53
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
54
BELT GUARD MTD-17058A-0637
...
55
BELT GUARD MTD-747-0549
...
56
Ton Truss Hd. Scr. 5/16 x .75" Lg. MTD-710-1242
...
57
Bell-Wash..345" I.D. x .88" MTD-736-0242
...
58
Hub Cap MTD-NA
...
59
CLUTCH CABLE CONTROL MTD-746-0712A
...
60
External L-Wash. 1/4" I.D. MTD-736-0222
...
?61
BALL BEARING (Optional) MTD-941-0180
...
?62
Wave Wash..53" I.D. x .78" MTD-736-0232
...
65
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
67
LOCK NUT 1/4 MTD-912-3027
...
68
SCREW-TRUSS MACH MTD-710-1131
...
69
Hex L-Nut 1/4-20 Thd. MTD-712-0324

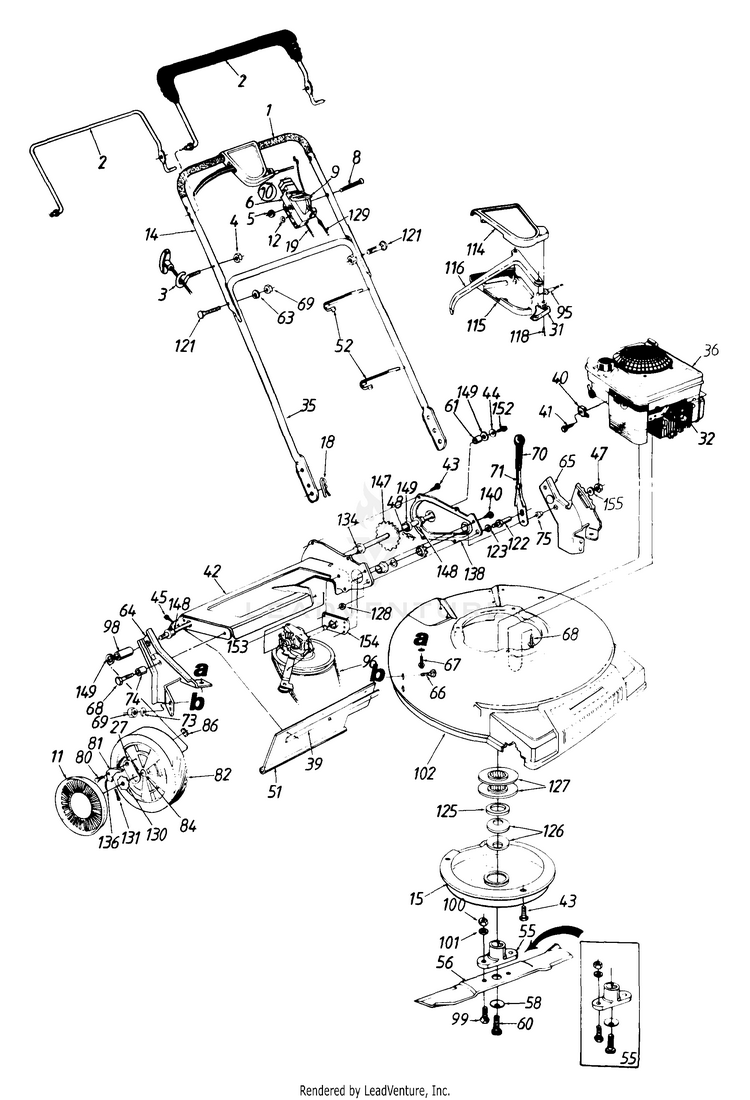

Handle And Wheel Assembly

...
...
1
FOAM GRIP - 9" (Optional) MTD-720-0294A
...
2
Std. Control Handle New Part MTD-747-0824B-0637
...
xx
Std. Control Handle New Part MTD-747-0824B-0637
...
3
Rope Guide MTD-710-1205
...
4
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
5
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
6
Throttle Body New Part MTD-946-0875
...
8
Oval C-Sunk Scr. New Part MTD-710-0605
...
9
Throttle Lever New Part MTD-745-0876
...
10
Throttle Box Comp. New Part; (Incl. Ref. 5, 6, 8, 9, 12) MTD-811-0185
...
11
Hub Cap MTD-NA
...
12
Curved Spring Wash. .66" I.D. New Part MTD-936-0501
...
14
UPPER HANDLE New Part MTD-749-0539C-0637
...
15
BELT COVER MTD-782-7522
...
18
Internal Cotter Pin 5/16" Dia. MTD-714-0104
...
19
Throttle Wire 55" Lg. New Part; For model (118R) MTD-946-0671A
...
xx
THROTTLE CABLE - 39" New Part; For model (115R) MTD-746-0844
...
?26
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
27
Pawl Plate MTD-16855
...
31
Control Cover Half-Lower MTD-753-0833
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
35
Lower Handle MTD-749-0928A-0637
...
36
Engine MTD-NA
...
39
STRIP-RETA MTD-14835
...
40
Cable Clamp (B&S) For model (118R) New Part MTD-BS-690798
...
41
Hex Self-Tap Scr. #10-32 x .62" New Part; For model MTD-710-1237
...
42
KIT-CHAIN MTD-682-7507
...
43
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
44
SPRING WASHER BELL MTD-736-0270
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
47
HEX LOCK NUT 3/8-2 MTD-912-0296
...
48
#48 CHAIN-1/2 PITCH MTD-913-0361
...
51
FLAP-REAR MTD-731-0672A
...
52
Cable Tie MTD-725-0157
...
55
KIT-BLADE MTD-753-0519
...
56
21" Mulching Blade MTD-942-0721
...
58
BELL WASHER MTD-936-0453
...
60
Hex Bolt 7/16-20 x 2.5" MTD-710-0561
...
61
Spacer .513" I.D. MTD-748-0190
...
63
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
64
BRACKET ASSY-HDLE-RH New Part MTD-682-3006
...
65
BRACKET ASSEMBLY-HDLE (LH) New Part MTD-682-3007
...
66
Carriage Bolt 5/16-18 x.62 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0260A
...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
70
Grip MTD-720-0223
...
71
SPRING LEVER MTD-732-0580
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
SPACER MTD-950-0736
...
75
SHOULDER SPACER MTD-750-0624
...
80
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
81
PAWL - (LH) MTD-948-0188B
...
82
Wheel Ass'y. Comp. - Rear 8" x 1.75" Bar Tread MTD-634-0020
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
84
BEARING (Optional) MTD-741-0486B
...
86
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
95
CLUTCH CABLE CONTROL MTD-746-0712A
...
96
V-Belt MTD-954-0343
...
98
SLEEVE MTD-711-0313
...
99
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1055
...
100
Hex Nut 3/8-24 Thd. MTD-712-0241
...
101
L-Wash. 3/8" I.D. MTD-736-0169
...
102
KIT-DECK ASSEMBLY Code 638 MTD-782-0015
...
114
Control Cover Half-Lower MTD-753-0833
...
115
Control Cover Half-Lower MTD-753-0833
...
116
Drive Control MTD-731-0620A
...
118
Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
121
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
123
L-Wash. 3/8" I.D. MTD-736-0169
...
125
SPACER-CRANKSHAFT MTD-748-0332
...
126
BELL-WASH 1.01" I.D. MTD-736-0450
...
127
SERRATED HALF PULLEY MTD-756-0502
...
128
Hex Jam Nut 3/8-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0711
...
129
Control Cable 39" For model (118R) MTD-946-0550
...
xx
CONTROL CABLE For model (115R) MTD-746-0727
...
130
Wheel Ratchet MTD-948-0318
...
131
Cotter Pin 1/8" Dia. x 1" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-714-0115
...
134
Hex Flange Bearing MTD-741-0522
...
136
Spring - Nylon MTD-10622B
...
138
COVER ASSEMBLY-CHAIN MTD-682-7506
...
140
Hex S-Tap Scr. 1/4-20 x .50" MTD-710-0599
...
147
REAR AXLE SHAFT ASSEMBLY 22T MTD-938-0864
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
TRANSMISSION See "Transmission" illustration and parts list. MTD-917-0417B
...
154
CUP BEARING HEX MTD-16500A-0637
...
155
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
...
...
...
...
