Cenex by MTD Mdl 127-365-095 Self-Propelled Mower

Model: Cenex Mdl 127-365-095

Save
 Part Not Listed?Part Not Listed?
product name

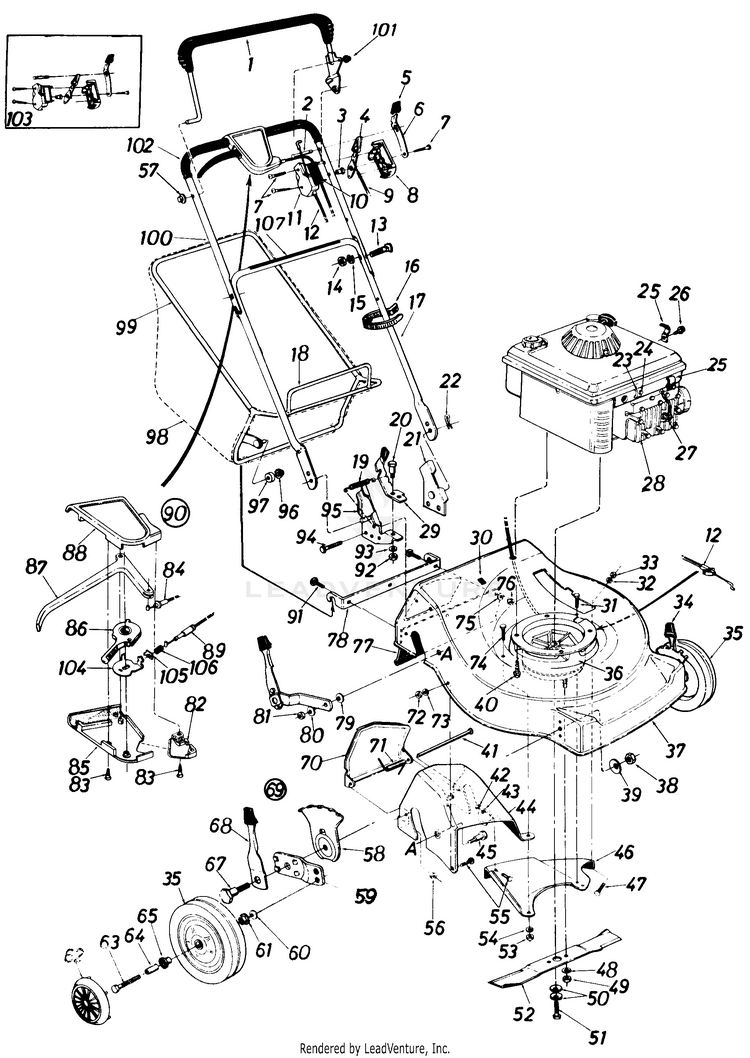

Parts

...
...
1
BAIL (LH) MTD-731-0609
...
2
LOCKING PIN MTD-731-0607
...
3
CONROL DISC PIN MTD-731-0524
...
4
Throttle Control Lever MTD-931-0972
...
5
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
6
SPRING-LOCKOUT MTD-732-0401
...
7
Truss Mach. Hi-B Tap Scr. #12 x 1.50" Lg. MTD-710-0796
...
8
PANEL MTD-731-0817
...
9
Throttle Wire-58" Lg. MTD-946-0674A
...
10
Control Label MTD-777-5774
...
11
CIUTCH PANEL HALF MTD-731-0816
...
12
CLUTCH CABLE MTD-946-0405
...
13
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Lock Wash. 5/16" I.D. MTD-936-0119
...
16
Cable Tie MTD-725-0157
...
17
Lower Handle MTD-749-0907B
...
18
CATCHER LOWER FRAME MTD-14582
...
19
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
20
Shoulder Bolt MTD-938-0155
...
21
BRACKET ASSEMBLY MTD-12297
...
22
Hairpin Cotter 5/16" Dia. MTD-714-0104
...
23
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
24
CASING CLAMP MTD-751-0442
...
25
CABLE CLAMP MTD-12894
...
26
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
27
INSULATOR-SPARK PLUG MTD-735-0639
...
28
Engine MTD-NA
...
29
CATCHER LOCK LEVER W/ KNOB MTD-14845
...
30
PLUG MTD-731-0564
...
31
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
32
L-Wash. 1/4" I.D. MTD-936-0329
...
33
HEX NUT 1/4-20 MTD-912-0287
...
34
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
35
Front Wheel Ass'y. Comp. MTD-NA
...
xx
FRONT WHEEL-SMOOTH TREAD MTD-734-0843
...
xx
8" REAR WHEEL ASS'Y. (STEEL WHEEL) MTD-734-0894
...
xx
WHEEL ASSEMBLY W/TIRE-8 x 1.75 TL MTD-734-0661
...
xx
FRONT WHEEL ASS'Y. COMP. 8 x 1.75 MTD-734-0845
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0645
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0643
...
36
BLADE BRAKE CLUTCH ASS'Y. COMP. MTD-717-0485
...
37
DECK ASSEMBLY-22IN MTD-16327
...
38
Hex Nut 3/8-16 Thd. MTD-712-0798
...
39
BELL WASHER MTD-936-0356
...
40
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
41
HINGE PIN MTD-738-0386
...
42
HEX NUT 1/4-20 MTD-912-0287
...
43
L-Wash. 1/4" I.D. MTD-936-0329
...
44
BAFFLE-CHUTE-RR-RH MTD-14236
...
45
Shld. Bolt.500" Dia. MTD-738-0430
...
46
Rear Baffle-L.H. MTD-14014
...
47
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
48
L-Wash. 3/8" I.D. MTD-736-0169
...
49
Hex Nut 3/8-24 Thd. MTD-712-0241
...
50
Bell-Wash. 40" I.D. x .88" MTD-736-0105
...
51
Hex Cl-Bolt 3/8-24 x 2.0" Lg. (Grade 8) MTD-710-0818
...
52
22" BLADE MTD-742-0222
...
53
HEX NUT 1/4-20 MTD-912-0287
...
54
L-Wash. 1/4" I.D. MTD-936-0329
...
55
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
56
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
57
Push Cap MTD-726-0135
...
58
Height Adjustment Plate MTD-787-01290A
...
59
Pivot Bar MTD-15262B
...
60
Bell-Wash. .40" I.D. x .88" MTD-736-0105
...
61
Bearing MTD-NA
...
62
Plastic Hub Cap MTD-NA
...
63
Axle Bolt MTD-NA
...
xx
Axle Bolt MTD-738-0102
...
xx
Axle Bolt MTD-710-0347
...
64
Spacer (Used w/Ball Bearings) MTD-NA
...
xx
Spacer MTD-750-0434
...
65
Bearing MTD-NA
...
xx
Plastic Bearing MTD-741-0262
...
xx
FORTIFLEX BEARING MTD-741-0267
...
xx
BALL BEARING MTD-941-0484
...
67
Shoulder Bolt .50" Dia. MTD-738-0507B
...
68
Front Spring Lever MTD-94832
...
69
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
70
CHUTE DOOR MTD-13407
...
71
TORSION SPRING MTD-732-0346
...
72
HEX NUT 1/4-20 MTD-912-0287
...
73
L-Wash. 1/4" I.D. MTD-936-0329
...
74
Hex Bolt 1/4-20 x .88" Lg. MTD-710-0206
...
75
Fl-Wash. .285" I.D. x 1.25" MTD-736-0211
...
76
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
77
FLAP MTD-731-0664
...
78
ADAPTER-GR MTD-14012
...
79
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
80
Bell-Wash. 40" I.D. x .88" MTD-736-0105
...
81
Jam Nut, 3/8-16 MTD-912-3008
...
82
CABLE MOUNTING CAP MTD-731-0763
...
83
Flat "C"-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
84
CABLE-53" LONG MTD-746-0466
...
85
LOWER COVER MTD-731-0762
...
86
LEVER-3 SP SHIFT MTD-717-0822
...
87
Drive Control MTD-731-0620A
...
88
UPPER COVER MTD-731-0761
...
89
SHIFT CABLE MTD-717-0823
...
90
KIT-CLUTCH MTD-753-0417
...
91
Carr. Bolt 1/4-20 x 75n Lg.* MTD-710-0703
...
92
HEX NUT 5/16-18 MTD-712-3010
...
93
Lock Wash. 5/16" I.D. MTD-936-0119
...
94
SCREW 1/4-14 x .625 MTD-710-0892
...
95
Handle Brkt. Ass'y.-R.H. MTD-14592
...
96
Push Nut 3/8" Rod MTD-726-0100
...
97
ROLLER-PLASTIC MTD-731-0430
...
98
GRASSBAG MTD-764-0171
...
xx
GRASS BAA MTD-764-0170
...
99
FRAME-CATCHER-UPR MTD-749-0278
...
100
Upper Handle MTD-749-0437
...
101
PUSH CAP MTD-726-0245
...
102
Grip MTD-718-0145
...
103
KIT-THROTTLE CONTROL MTD-753-0431
...
104
BRACKET MTD-717-0827
...
105
Shimano 3-Sp. Cable Spring Brkt. MTD-717-0829
...
106
Shimano 3-Sp. Cable Mounting Spring MTD-717-0828
...
107
Instruction Label MTD-777-5775
...
xx
Hardware Pack MTD-8365-000-7

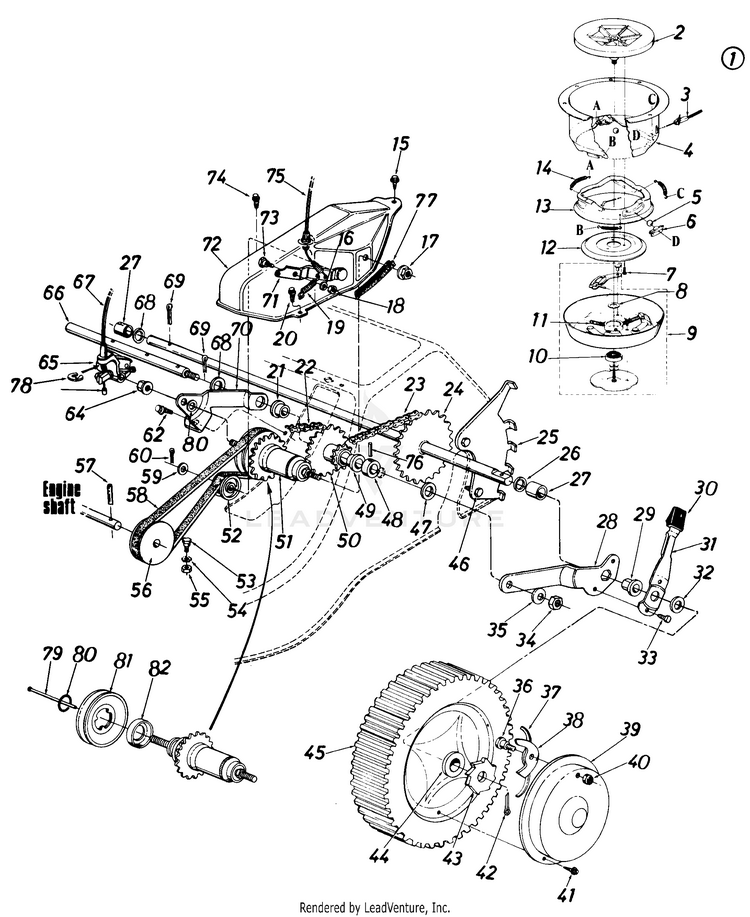

Parts

...
...
1
BLADE BRAKE CLUTCH ASS'Y. COMP. MTD-717-0485
...
2
ADAPTER-FAN MTD-719-0256
...
3
CLUTCH CABLE MTD-946-0405
...
4
HOUSING-CL MTD-14307
...
5
STEEL BALL MTD-741-0326
...
6
BALL-BLOCK MTD-731-0520
...
7
Hex Wash. TT-Tap Cl-Scr. 1/4 -20 x .75" Lg. MTD-710-0875
...
8
FLAT WASHER .687 x 1.060 x .032 MTD-736-0333
...
9
CLUTCH BLADE HOUSING ASS'Y. MTD-14300
...
10
BALL BEARING MTD-941-0600
...
11
SPRING MTD-732-0396
...
12
CLUTCH CONE MTD-14304
...
13
Brake Cup Cone MTD-14305
...
14
EXTENSION SPRING MTD-732-0397
...
15
HEX SCREW #10-16 x 0.500 MTD-710-0456
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
HEX NUT BC 3/8-24 (Special) MTD-712-0340
...
18
HEX NUT 1/4-20 MTD-912-0287
...
19
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
20
Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
21
Flg. Brg. .506" I.D.-Plastic MTD-741-0248
...
22
#48 CHAIN-1/2 PITCH (Endless) MTD-913-0361
...
23
#48 CHAIN 1/2 PITCH x 31 (Endless) MTD-913-0144
...
24
SHAFT ASSEMBLY MTD-13414
...
25
INDEX PLATE ASS'Y. L.H. MTD-16097
...
xx
Index Plate Rear-R.H. (Not Shown) MTD-16098
...
26
Fl-Wash. .510" I.D. x 1.0" MTD-736-0326
...
27
SPACER MTD-750-0190
...
28
BRACKET-PI MTD-16099
...
xx
BRACKET-PI (Not Shown) MTD-16100
...
29
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
30
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
31
LEVER-SPRING MTD-732-0467
...
32
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
33
Hex B-Tap Scr. 1/4 x .38" MTD-710-0352
...
34
Jam Nut, 3/8-16 MTD-912-3008
...
35
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
36
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
37
Spring - Nylon MTD-10622B
...
38
PAWL - (LH) MTD-948-0188B
...
39
HUB CAP MTD-10647
...
40
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
41
SCREW #12-14 x .500 MTD-710-0748
...
42
Cotter Pin 1/8" Dia. x 1.0" MTD-714-0115
...
43
RACHET-WHEEL MTD-748-0187
...
44
BALL BEARING MTD-941-0180
...
45
GEAR TREAD (8 x 1.75") MTD-734-1411
...
46
SCREW 1/4-14 x .625 MTD-710-0892
...
47
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
48
SPACER MTD-750-0387
...
49
Flg. Brg. .506" I.D. Plastic MTD-741-0248
...
50
SPROCKET ASSEMBLY-9T & MTD-713-0359
...
51
HUB-W/18T SPROCKET MTD-717-0825
...
52
FLAT IDLER PULLEY MTD-756-0360
...
53
Shld. Bolt .437" Dia. x .180 MTD-738-0140
...
54
Lock Wash. 5/16" I.D. MTD-936-0119
...
55
HEX NUT 5/16-18 MTD-712-3010
...
56
ENGINE PULLEY-1/2 V MTD-756-0462
...
57
SPIROL PIN MTD-715-0144
...
58
V-BELT MTD-754-0292
...
59
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
60
Cotter Pin 1/8" Dia. x 1.0" MTD-714-0115
...
62
Hex Wash. Hd. Tap Scr. 5/16-18 x .75" Lg. MTD-710-0726
...
xx
Fl-Wash. .469" I.D. x .88" MTD-736-0226
...
64
HEX NUT BC 3/8-24 (Special) MTD-712-0340
...
65
Shimano 3-Sp. Shift Bell Crank MTD-717-0824
...
66
SHAFT-PULLEY MTD-738-0471
...
67
SHIFT CABLE MTD-717-0823
...
68
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
69
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
70
3-Sp. Hub Bracket MTD-16304
...
71
BRACKET AS MTD-13415
...
72
3-Sp. Belt Cove MTD-16305
...
73
SHOULDER SCREW MTD-938-0255
...
74
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
75
CABLE-53" LONG MTD-746-0466
...
76
Spring Pin Spir. 3/16" Dia. x 1.0" Lg. MTD-715-0120
...
77
Trim Strip MTD-731-0511
...
78
Snap Ring (Special) MTD-717-0832
...
79
1IN-SHIFTING C (Special) MTD-717-0830
...
80
SNAP RING (Special) MTD-717-0826
...
81
1/2" V-PULLEY 1.375" I.D. x 3.25" O.D. MTD-756-0463
...
82
Shimano 3-Sp. Dust Cover MTD-717-0831
...
...
...
...
...
